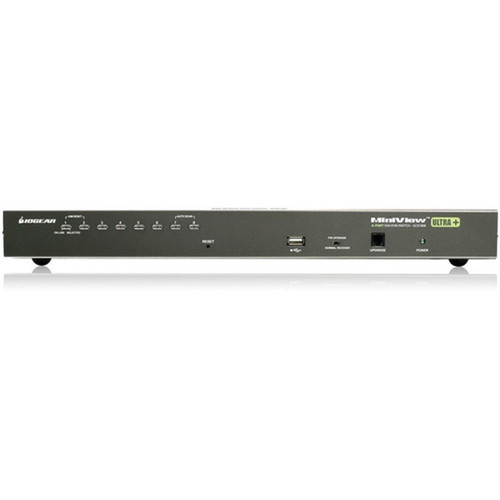

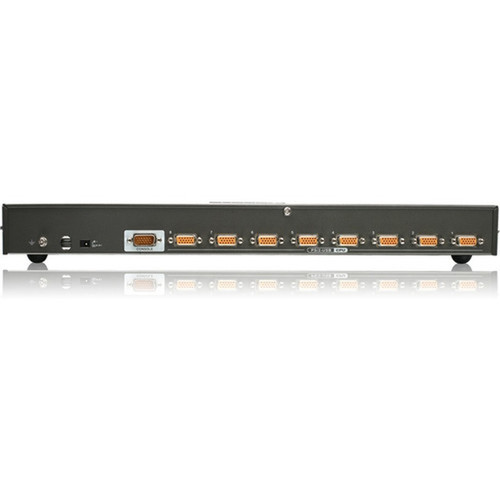

IOGEAR GCS1808 8-Port Combo KVM Switch - 1U Rack-Mountable - VGA/SVGA/QXGA - 2048 x 1536 Resolution
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GCS1808 operates with both USB and legacy PS/2 keyboard and mouse interfaces, accommodating diverse hardware configurations across its eight ports. Video output supports resolutions up to 2048 x 1536, compatible with standard VGA, SVGA, and QXGA graphic modes for clear display across connected systems.
Advanced management features include two-level password protection for the on-screen display, auto scan mode for monitoring connected computers, and broadcast mode to send commands simultaneously to all systems. The front USB port facilitates straightforward firmware updates, ensuring the switch remains current with evolving IT environments.
Relevant factors for this section include Number of Computers Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GCS1808 simplifies multi-computer management with its combination of hardware flexibility and intuitive software controls. Its rack-mountable 1U design fits standard 19-inch racks, while the included mounting kit and grounding wire ensure secure installation in professional settings.
Scalable Control
Cascade up to two levels to manage 128 computers from one console, ideal for expanding server rooms without adding extra hardware.
- Supports mixed USB and PS/2 interfaces
- Front USB port for easy firmware upgrades
Enhanced Security
Two-level password protection secures the on-screen display, preventing unauthorized access to connected systems in shared environments.
- Auto scan mode monitors all connected computers
- Broadcast mode sends commands to multiple systems simultaneously
Deployment / Use Cases
Deploy the IOGEAR GCS1808 in data centers where centralized control of multiple servers reduces clutter and improves operational efficiency. Its compatibility with Windows, Mac, Oracle Solaris, and Linux makes it suitable for heterogeneous environments, such as development labs or mixed-OS server farms.
Use this KVM switch in educational institutions or corporate IT departments to manage computer labs or training rooms from a single console. The cascade feature allows expansion to control up to 128 systems, supporting growth without replacing existing infrastructure. The rack-mountable form factor also makes it ideal for network operations centers where space optimization is critical.
Data Center Management
Centralize control of server racks with the 1U design, reducing cable clutter and simplifying maintenance tasks across multiple systems.
Multi-OS Environments
Manage computers running different operating systems seamlessly, thanks to broad OS support and flexible USB/PS/2 interfaces.
Physical Profile
The GCS1808 features a compact 1U rack-mountable enclosure measuring 1.75 inches in height, 17 inches in width, and 6.25 inches in depth, designed to fit standard 19-inch server racks. With an approximate weight of 5.58 pounds, it offers a sturdy build suitable for professional installations. The included foot pad set allows for desktop use when rack mounting is not required, providing deployment flexibility.
- Width
- 17" (431.80 mm)
- Depth
- 6.25" (158.75 mm)
- Height
- 1U
- Weight
- 5.58 lb (2531.05 g)
What's in the Box
The package includes all necessary components for immediate deployment and ongoing maintenance.
Highlights
- 8-port KVM switch with USB and PS/2 interfaces for versatile connectivity
- Supports VGA, SVGA, and QXGA video modes up to 2048 x 1536 resolution
- Cascade up to two levels to control 128 computers from a single console
- 1U rack-mountable design fits standard 19-inch server racks
- Front USB port for easy firmware upgrades and system maintenance
- Two-level password protection secures the on-screen display
- Auto scan and broadcast modes enhance monitoring and command efficiency
- Multi-platform OS support for Windows, Mac, Oracle Solaris, and Linux
- Intuitive operation via front panel LEDs, OSD, and hotkeys
- Includes comprehensive accessories for immediate deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1808 |
| Brand Name | IOGEAR |
| Product Name | GCS1808 Combo KVM Switch |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Video | |
| Graphic Mode | VGA,SVGA,QXGA |
| Maximum Video Resolution | 2048 x 1536 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 6.25" (158.75 mm) |
| Weight (Approximate) | 5.58 lb (2531.05 g) |
| Miscellaneous | |
| Package Contents | GCS1808 Combo KVM Switch 2 x Custom KVM Cable Sets (1 USB & 1 PS/2) 1 x Console Cable 1 x Cascade Cable 1 x Firmware Upgrade Cable 1 x Grounding Wire 1 x Foot Pad Set (4 Pads) 1 x Power Adapter 1 x Standard Rack Mounting Kit 1 x Installation Guide 1 x Warranty Card |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many computers can the IOGEAR GCS1808 KVM switch control directly?
The GCS1808 directly controls up to eight computers through its eight ports. Each port supports both USB and PS/2 keyboard and mouse interfaces, allowing mixed hardware configurations. This makes it suitable for small to medium server racks or computer labs where centralized management is needed without additional hardware.
What is the maximum video resolution supported by this KVM switch?
This switch supports a maximum video resolution of 2048 x 1536, compatible with VGA, SVGA, and QXGA graphic modes. This resolution ensures clear display output for most standard monitors and projectors, making it effective for general computing tasks, server management, and multimedia applications in professional environments.
Can I expand the number of computers controlled beyond eight with this switch?
Yes, the GCS1808 supports cascade functionality up to two levels, allowing control of up to 128 computers from a single console. By connecting additional KVM switches via the included cascade cable, you can scale management across multiple racks or rooms without needing separate consoles, ideal for growing data centers or large installations.
Is the GCS1808 suitable for rack mounting in a data center?
Absolutely. The GCS1808 is designed as a 1U rack-mountable unit that fits standard 19-inch server racks. Its dimensions of 1.75 inches high, 17 inches wide, and 6.25 inches deep ensure efficient use of rack space. The package includes a standard rack mounting kit and grounding wire for secure installation in professional data center environments.
What security features does this KVM switch offer?
The GCS1808 includes two-level password protection for the on-screen display, preventing unauthorized access to connected systems. Additional features like auto scan mode allow continuous monitoring of all computers, while broadcast mode enables sending commands to multiple systems at once. These security measures help maintain control and oversight in shared or sensitive IT setups.
What connectivity or interface options are available?
Connectivity details help confirm how IOGEAR GCS1808 Combo KVM Switch - 8 x 1 - 8 x SPDB-15 Keyboard/Mouse/Video - 1U - Rack-mountable (GCS1808) can integrate with your network, accessories, and surrounding peripherals before rollout or replacement planning.
