IOGEAR GCS1808KITPTAA 8-Port USB/PS/2 Combo VGA KVM Switch Kit - 1U Rack-Mountable - 2048 x 1536 Resolution - Includes Cables
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview

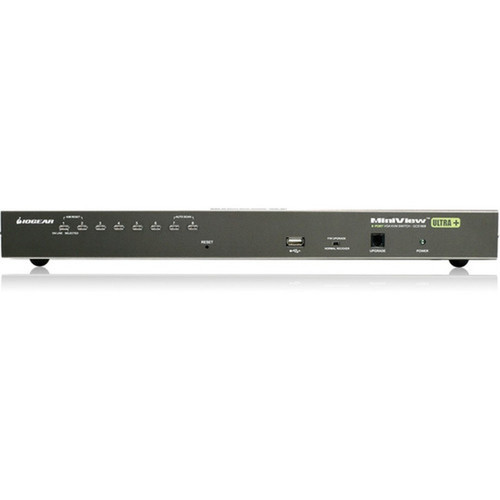

This KVM switch supports eight computers with a single local console, delivering QXGA graphic mode at resolutions up to 2048 x 1536. The front panel includes one USB port for firmware updates and peripheral sharing, maintaining USB 1.1 compliance for broad compatibility. The rack-mountable design fits standard 19-inch racks with a 1U height, measuring 1.75 inches tall, 17 inches wide, and 6.25 inches deep.
Control features include auto scan mode for monitoring connected systems, broadcast mode for simultaneous command execution, and cascade capability for expanding control up to 128 computers across two levels. The intuitive on-screen display and front-panel LEDs provide clear system status and selection options. Two-level password protection secures OSD access, preventing unauthorized configuration changes.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Graphic Mode, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This KVM switch kit delivers operational efficiency through multi-platform support, comprehensive cabling, and scalable control options. The inclusion of both USB and PS/2 interfaces ensures compatibility with diverse computer systems, while the bundled cables in multiple lengths accommodate various rack configurations.
Multi-Platform Compatibility
Supports Windows, Mac, Oracle Solaris, and Linux operating systems, providing flexibility in heterogeneous IT environments.
- USB and PS/2 computer support
- VGA video connectivity
- Cross-platform operation
Enhanced Control Features
Advanced management capabilities including auto scan, broadcast mode, and cascade expansion for large-scale deployments.
- Monitor all connected computers
- Send commands to multiple systems
- Expand control to 128 computers
Complete Installation Kit
Includes all necessary components for immediate deployment: switch, cables, mounting hardware, and accessories.
- 8 PS/2 KVM cables (4x6ft, 4x10ft)
- USB KVM cable
- Standard rack mounting kit
Deployment / Use Cases
This KVM switch is ideal for data centers, server rooms, and IT labs where space optimization and centralized control are priorities. The rack-mountable design integrates seamlessly with existing infrastructure, while the included mounting kit simplifies installation. The cascade capability makes it suitable for expanding control across multiple racks or rooms.
Educational institutions and training facilities benefit from the broadcast mode for simultaneous instruction delivery. IT support teams can use the auto scan feature to monitor server health across multiple systems. The multi-platform support ensures compatibility in environments with mixed Windows, Mac, and Linux systems, reducing the need for multiple control solutions.
Physical Profile
Designed for standard 19-inch rack installations, this KVM switch occupies minimal space with a 1U height profile. The dimensions of 1.75" H × 17" W × 6.25" D provide a compact footprint while maintaining accessibility to front-panel controls and ports. The included foot pad set offers optional desktop placement for temporary or testing scenarios.
- Width
- 17" (431.80 mm)
- Depth
- 6.25" (158.75 mm)
- Height
- 1U
- Weight
- 5.58 lb (2531.05 g)
What's in the Box
This complete kit includes all components necessary for immediate deployment and operation.
Highlights
- Supports 8 computers with 1 local user console
- USB and PS/2 combo connectivity for broad compatibility
- Maximum video resolution of 2048 x 1536 (QXGA)
- 1U rack-mountable form factor for space-efficient installation
- Includes 8 PS/2 KVM cables (4x6ft, 4x10ft) and USB cable
- Multi-platform OS support: Windows, Mac, Solaris, Linux
- Cascade capability for controlling up to 128 computers
- Auto scan and broadcast modes for efficient management
- Front USB port for firmware updates and peripheral sharing
- 3-year limited warranty with RoHS/WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1808KITPTAA |
| Brand Name | IOGEAR |
| Product Line | MiniView |
| Product Model | GCS1808KITPTAA |
| Product Name | 8-Port USB PS/2 Combo VGA KVM Switch with PS/2 KVM Cables |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Video | |
| Graphic Mode | QXGA |
| Maximum Video Resolution | 2048 x 1536 |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 6.25" (158.75 mm) |
| Weight (Approximate) | 5.58 lb (2531.05 g) |
| Miscellaneous | |

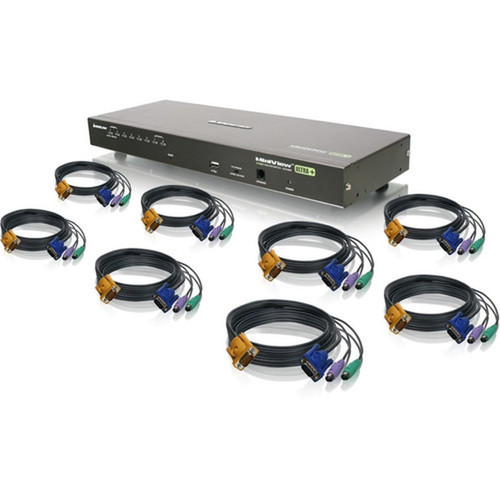

| Package Contents | 8-Port USB PS/2 Combo VGA KVM Switch with PS/2 KVM Cables 4 x PS/2 KVM Cables (6ft - G2L5202PTAA) 4 x PS/2 KVM Cables (10ft - G2L5203PTAA) 1 x USB KVM Cable (6ft - G2L5202UTAA) 1 x Console Cable 1 x Cascade Cable 1 x Firmware Upgrade Cable 1 x Grounding Wire 1 x Foot Pad Set (4 Pads) 1 x Power Adapter 1 x Standard Rack Mounting Kit 1 x Installation Guide 1 x Warranty Card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can this KVM switch control simultaneously?
This KVM switch supports eight computers with a single local console. The cascade feature allows expansion to control up to 128 computers across two levels when multiple switches are connected, making it suitable for larger server environments and data centers.
What types of computer connections does this switch support?
The switch provides both USB and PS/2 connectivity options, allowing compatibility with a wide range of computer systems. This dual-interface design ensures support for legacy PS/2 systems and modern USB computers, with VGA video support for display connectivity.
What video resolution does this KVM switch support?
This switch supports QXGA graphic mode with a maximum video resolution of 2048 x 1536. This high-resolution capability ensures clear display quality for server management, making it suitable for monitoring detailed system information and graphical interfaces.
Is this KVM switch rack-mountable?
Yes, this switch is designed for rack installation with a 1U form factor. The package includes a standard rack mounting kit for immediate installation in 19-inch racks. The compact dimensions of 1.75" H × 17" W × 6.25" D optimize space utilization in server rooms and data centers.
What cables are included with this KVM switch kit?
The kit includes eight PS/2 KVM cables (four 6-foot and four 10-foot lengths), one USB KVM cable (6-foot), a console cable, and a cascade cable. This comprehensive cable assortment accommodates various rack configurations and distances between the switch and connected computers.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
