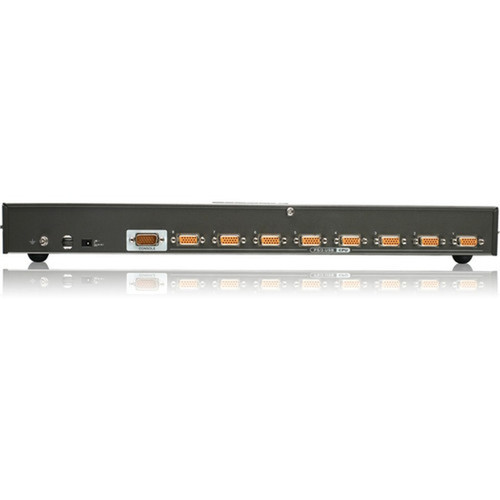

IOGEAR GCS1808KITTAA 8-Port USB/PS/2 Combo VGA KVM Switch with Cables - 1U Rack-Mountable - 2046 x 1536 Resolution
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch operates with multi-platform OS support including Windows, Mac, Oracle Solaris, and Linux systems. The hardware architecture supports cascading up to two levels, enabling control of up to 128 computers from a single console when multiple units are connected. The front USB port facilitates firmware upgrades and peripheral sharing while maintaining full USB 1.1 compliance.
The switching mechanism employs auto-scan mode for continuous monitoring of connected computers and broadcast mode for simultaneous command transmission across all systems. Two-level password protection secures the on-screen display interface against unauthorized configuration changes.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This KVM switch eliminates the need for multiple keyboards, video monitors, and mice while providing secure access to eight computer systems. The hybrid USB/PS/2 compatibility ensures backward compatibility with legacy equipment while supporting modern USB peripherals.
Comprehensive Cable Bundle
Includes four USB KVM cables (two 6ft, two 10ft) and four PS/2 KVM cables (two 6ft, two 10ft) for immediate connectivity without additional purchases.
- Mixed cable lengths for flexible deployment
- Both USB and PS/2 interface options
- Console and cascade cables included
Enhanced Control Features
Advanced switching capabilities including auto-scan monitoring, broadcast command transmission, and two-level cascading support for expanded system management.
- Monitor all connected computers automatically
- Send commands to multiple systems simultaneously
- Expand control to 128 computers via cascading
Deployment / Use Cases
Data center environments benefit from the 1U rack-mountable design that conserves valuable rack space while providing centralized management of server racks. The TAA compliance makes this solution suitable for government and educational procurement where regulatory requirements must be met.
IT support teams can utilize the cascading capability to manage multiple server racks from a single workstation, reducing physical movement between equipment locations. The hybrid interface support allows gradual migration from PS/2 to USB systems without requiring complete infrastructure overhaul.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Server Room Management
Centralize control of multiple servers in rack-mounted configurations with easy front-panel access and clear status indicators.
Legacy System Integration
Maintain access to older PS/2-based equipment while incorporating newer USB systems within the same management framework.
Physical Profile
The 1U rack-mountable enclosure measures 1.75" (44.45 mm) in height, 17" (431.80 mm) in width, and 6.25" (158.75 mm) in depth, fitting standard 19-inch equipment racks. The included standard rack mounting kit and four foot pad sets provide flexible installation options for both rack-mounted and desktop deployments. The compact design maximizes port density while maintaining adequate ventilation for reliable operation in enclosed rack environments.
- Width
- 17" (431.80 mm)
- Depth
- 6.25" (158.75 mm)
- Height
- 1U
- Weight
- 5.58 lb (2531.05 g)
What's in the Box
This complete KVM solution includes all necessary components for immediate deployment:
Highlights
- Supports 8 computers with 1 local user control interface
- Hybrid USB/PS/2 compatibility for mixed-environment deployment
- Maximum 2046x1536 video resolution maintains display clarity
- 1U rack-mountable form factor saves valuable rack space
- Includes 8 KVM cables (4 USB, 4 PS/2) in mixed lengths
- Multi-platform OS support: Windows, Mac, Solaris, Linux
- Cascade up to 2 levels for 128-computer management
- Auto-scan and broadcast modes enhance monitoring capabilities
- Two-level password protection secures OSD configuration
- TAA compliant for government and educational procurement
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1808KITTAA |
| Brand Name | IOGEAR |
| Product Name | 8-Port USB PS/2 Combo VGA KVM Switch with Cables |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 2046 x 1536 |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 6.25" (158.75 mm) |
| Weight (Approximate) | 5.58 lb (2531.05 g) |
| Miscellaneous | |
| Package Contents | 8-Port USB PS/2 Combo VGA KVM Switch with Cables 2 x PS/2 KVM Cables (6ft - G2L5202P) 2 x PS/2 KVM Cables (10ft - G2L5203P) 2 x USB KVM Cables (6ft - G2L5202U) 2 x USB KVM Cables (10ft - G2L5203U) 1 x Console Cable 1 x Cascade Cable 1 x Firmware Upgrade Cable 1 x Grounding Wire 4 x Foot Pad Set 1 x Power Adapter 1 x Standard Rack Mounting Kit 1 x Installation Guide 1 x Warranty Card |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can this KVM switch control simultaneously?
The IOGEAR GCS1808KITTAA supports eight connected computers with one local user console. Through cascading capability, you can connect multiple units to control up to 128 computers from a single workstation, making it suitable for expanding server room environments without adding additional management stations.
What types of computer interfaces does this KVM switch support?
This switch provides hybrid compatibility with both USB and legacy PS/2 interfaces. The included cable bundle contains four USB KVM cables and four PS/2 KVM cables in mixed 6-foot and 10-foot lengths, allowing connection to modern USB systems while maintaining access to older PS/2 equipment within the same management framework.
What is the maximum video resolution supported by this KVM switch?
The switch supports video resolutions up to 2046 x 1536 through its VGA interface. This high-resolution capability ensures clear display output when managing servers or workstations that require detailed visual monitoring, maintaining image quality across all connected systems during switching operations.
Can this KVM switch be installed in a standard equipment rack?
Yes, this switch features a 1U rack-mountable form factor that fits standard 19-inch equipment racks. The package includes a standard rack mounting kit for secure installation. The compact dimensions (1.75"H x 17"W x 6.25"D) conserve valuable rack space while providing full eight-port functionality.
What security features does this KVM switch include?
Security features include two-level password protection for the on-screen display interface, preventing unauthorized configuration changes. The physical design also includes front-panel controls with status indicators that allow secure operation without exposing management functions to casual users in shared environments.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
