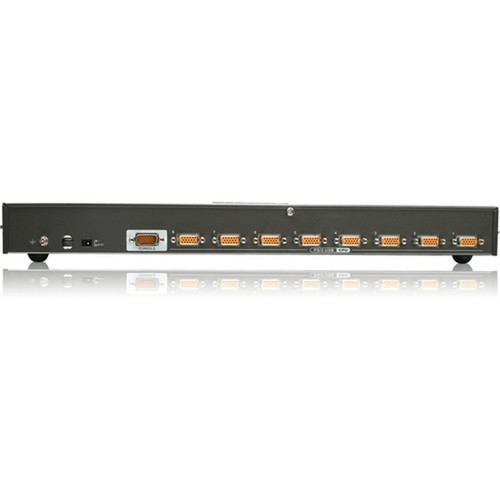

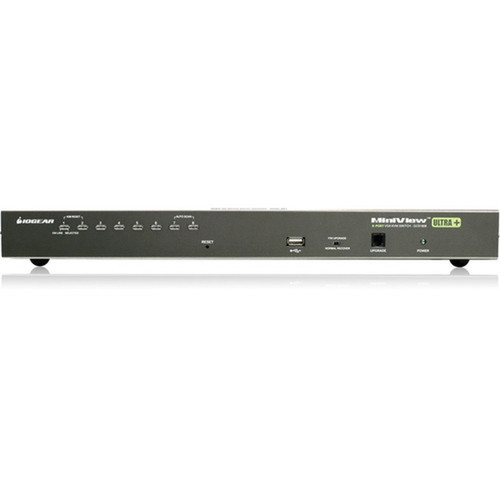

IOGEAR GCS1808KITUTAA 8-Port USB PS/2 Combo VGA KVM Switch Kit - 8 Computer Support - 2048 x 1536 Resolution - 1U Rack-Mountable with Cables & TAA
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch provides direct control of up to 8 computers from a single console, supporting both USB and PS/2 keyboard/mouse interfaces along with VGA video connections. The front panel includes a USB port for firmware upgrades and peripheral sharing, maintaining full USB 1.1 compatibility. Video output supports resolutions up to 2048x1536, ensuring clear display quality for connected systems.
Operating system compatibility spans Windows, Mac, Oracle Solaris, and Linux platforms, making this switch versatile across heterogeneous IT environments. The physical design measures 1.75 inches in height, 17 inches in width, and 6.25 inches in depth, fitting precisely into 1U rack spaces. With a weight of 5.58 pounds, the unit is substantial yet manageable for rack installation.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Beyond basic switching functionality, this KVM offers cascading capability that allows control of up to 128 computers across two levels when multiple units are connected. The intuitive on-screen display (OSD) and front panel LEDs provide clear system status and easy computer selection, while hotkey support enables rapid switching without navigating menus. These features combine to create a robust management solution that scales with growing IT infrastructure needs.

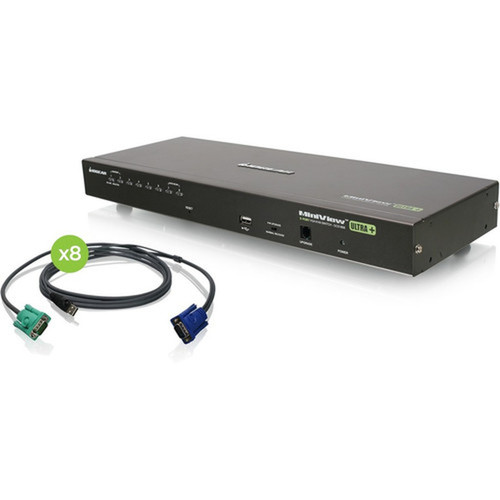

Complete Cable Kit Included
The package includes 8 USB KVM cables (4 at 6ft, 4 at 10ft), 1 PS/2 KVM cable (6ft), console cable, cascade cable, firmware upgrade cable, and grounding wire—eliminating the need for separate cable purchases.
- 4 x USB KVM cables (6ft - G2L5202U)
- 4 x USB KVM cables (10ft - G2L5203U)
- 1 x PS/2 KVM cable (6ft - G2L5202P)
Advanced Management Features
Multiple operation modes and security controls enhance management efficiency. Auto Scan Mode monitors connected computers automatically, while Broadcast Mode sends commands to all systems simultaneously.
- Auto Scan Mode for monitoring
- Broadcast Mode for mass commands
- 2-level password protection for OSD
Deployment / Use Cases
This KVM switch serves environments where administrators need to control multiple computers from a single workstation. In server rooms, it allows technicians to manage up to 8 servers without dedicating separate monitors, keyboards, and mice to each system—reducing clutter and hardware costs. The rack-mountable design integrates seamlessly with standard server racks, while the included mounting kit ensures secure installation.
For testing labs or development environments, the switch's support for multiple operating systems (Windows, Mac, Solaris, Linux) enables technicians to work across different platforms from one console. The cascade capability further extends utility, allowing larger installations to control up to 128 computers through interconnected units. These deployment scenarios highlight the switch's role in streamlining IT operations across various organizational settings.
Data Center Server Management
Ideal for managing multiple rack-mounted servers in data centers where space optimization and centralized control are critical. The 1U form factor preserves rack space while providing access to 8 systems.
Government and Education IT Rooms
TAA compliance makes this switch suitable for government procurement, while the comprehensive cable kit and easy operation suit educational environments where IT staff manage diverse computer labs.
Physical Profile
Designed for rack integration, this KVM switch features a 1U height profile that occupies minimal vertical space in standard server racks. The dimensions of 1.75" H × 17" W × 6.25" D (44.45 × 431.80 × 158.75 mm) correspond to typical rack-width equipment, while the 5.58-pound weight ensures stability when mounted. The package includes four foot pads for standalone desktop use, but the primary installation method utilizes the included standard rack mounting kit for secure rack attachment. The front panel provides clear LED indicators and accessible USB port, maintaining functionality even in densely packed rack environments.
- Width
- 17" (431.80 mm)
- Depth
- 6.25" (158.75 mm)
- Height
- 1U
- Weight
- 5.58 lb (2531.05 g)
What's in the Box
This complete kit includes everything needed for immediate deployment:
Highlights
- Controls 8 computers from a single console with 1 local user
- Supports both USB and PS/2 keyboard/mouse interfaces with VGA video
- Includes 8 USB KVM cables (4 at 6ft, 4 at 10ft) and 1 PS/2 cable
- Maximum video resolution of 2048 x 1536 for clear display output
- 1U rack-mountable form factor with included mounting kit
- Auto Scan Mode and Broadcast Mode for efficient computer management
- Cascade support for controlling up to 128 computers across multiple units
- TAA compliant for government procurement requirements
- 3-year limited warranty with RoHS and WEEE environmental compliance
- Front USB port for firmware upgrades and peripheral sharing
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1808KITUTAA |
| Brand Name | IOGEAR |
| Product Line | Miniview Ultra+ |
| Product Model | GCS1808 |
| Product Name | 8-Port USB PS/2 Combo VGA KVM Switch with USB KVM Cables |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 2048 x 1536 |
| Interfaces/Ports | |
| USB | Yes |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 17" (431.80 mm) |
| Depth | 6.25" (158.75 mm) |
| Weight (Approximate) | 5.58 lb (2531.05 g) |
| Miscellaneous | |
| Package Contents | 8-Port USB PS/2 Combo KVM 4 x USB KVM Cables (6ft - G2L5202U) 4 x USB KVM Cables (10ft - G2L5203U) 1 x PS/2 KVM Cable (6ft - G2L5202P) 1 x Console Cable 1 x Cascade Cable 1 x Firmware Upgrade Cable 1 x Grounding Wire 4 x Foot Pad 1 x Power Adapter 1 x Standard Rack Mounting Kit 1 x Installation Guide 1 x Warranty Card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can this KVM switch control simultaneously?
This KVM switch supports control of up to 8 computers from a single console with one local user. The unit provides direct connectivity for 8 systems through its combination of USB and PS/2 ports, allowing administrators to manage multiple servers or workstations without needing separate peripherals for each computer.
What types of computer connections does this switch support?
The switch supports both USB and legacy PS/2 keyboard/mouse interfaces along with VGA video connections. This dual-interface capability ensures compatibility with modern USB-based systems and older PS/2 equipment, making it suitable for mixed-environment deployments where different computer generations coexist.
What video resolution does this KVM switch support?
The switch supports maximum video resolution of 2048 x 1536. This resolution provides clear display output for connected computers, ensuring that administrators can work with detailed system interfaces and monitoring tools without compromising visual quality during KVM switching operations.
Is this KVM switch rack-mountable and what are its dimensions?
Yes, this switch is designed for rack mounting with a 1U height profile. The dimensions are 1.75 inches in height, 17 inches in width, and 6.25 inches in depth (44.45 x 431.80 x 158.75 mm). The package includes a standard rack mounting kit for secure installation in server racks, and the unit weighs 5.58 pounds for stable mounting.
What cables are included with this KVM switch kit?
The kit includes a comprehensive set of cables: 4 USB KVM cables at 6ft length (model G2L5202U), 4 USB KVM cables at 10ft length (model G2L5203U), and 1 PS/2 KVM cable at 6ft length (model G2L5202P). Additionally, the package contains console, cascade, and firmware upgrade cables, plus a grounding wire—providing everything needed for immediate deployment.
What compliance standards does this KVM switch meet?
This switch is TAA compliant for government procurement requirements and meets RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment Directive) environmental standards. It also carries a 3-year limited warranty and is manufactured in Taiwan, with multi-platform OS support for Windows, Mac, Oracle Solaris, and Linux systems.
