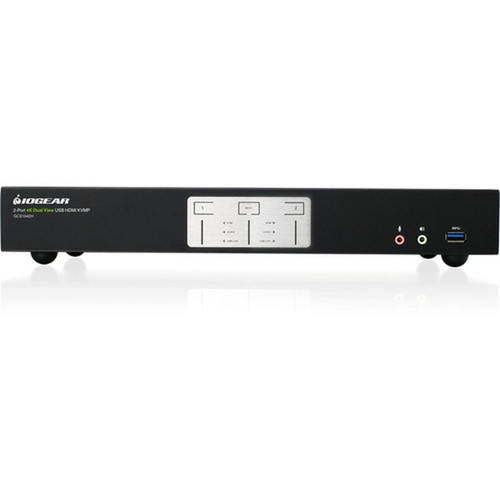

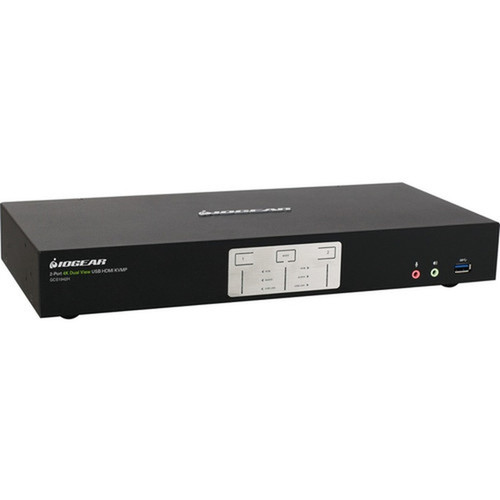

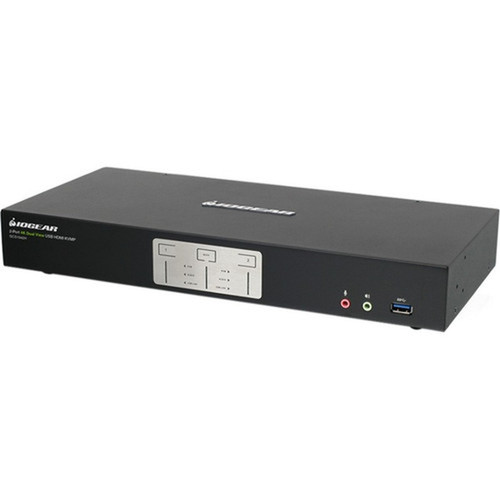

IOGEAR GCS1942H 2-Port 4K Dual View KVMP Switch - HDMI - USB 3.0 Hub - Audio - 4096 x 2160 - 2 Computers - 2 Users
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVMP switch features a robust port configuration with six HDMI ports, six USB 3.0 ports, and one network RJ-45 port, facilitating comprehensive connectivity for peripherals and network access. The USB 3.0 hub supports SuperSpeed 5Gbps transfer rates, enabling fast data exchanges and efficient peripheral sharing between two connected computers. The device allows users to work on one computer while maintaining USB peripheral connectivity on the other, reducing the need for duplicate devices and saving costs.
Built with environmental considerations, the GCS1942H complies with Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE) standards. It is TAA compliant and originates from Taiwan, meeting regulatory requirements for government and institutional deployments. The switch is backed by a 3-year limited warranty, providing reliability assurance for long-term use.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GCS1942H excels in simplifying complex multi-computer setups by consolidating control over video, USB peripherals, and audio through a single switch. Its dual-view capability supports two 4K monitors per computer, enhancing productivity for graphics design, video editing, and financial trading applications. The independent switching function allows seamless transitions between computers without disrupting peripheral operations, making it ideal for environments where continuous access to devices is critical.
High-Resolution Support
Delivers 4096 x 2160 resolution at 60Hz, ensuring sharp and detailed visuals for 4K content creation and display.
- Cinema 4K ready
- HDMI 2.0 compliant
- HDCP 2.2 protected
Flexible Peripheral Management
Enables sharing of USB 3.0 peripherals between two computers, reducing hardware duplication and optimizing workspace efficiency.
- SuperSpeed 5Gbps transfer
- Independent USB switching
- Cost-saving device sharing
Deployment / Use Cases
The IOGEAR GCS1942H is tailored for professional workstations requiring high-resolution multi-monitor configurations. It is particularly effective in design studios, control rooms, and trading floors where users need to manage multiple computers with precision and speed. The ability to expand by adding another GCS1942H unit supports up to four 4K monitors, scaling the setup for more intensive visual tasks.
In corporate IT environments, this switch simplifies desk sharing and hot-desking by allowing two users to operate separate computers with shared peripherals. Its TAA compliance makes it suitable for government and educational institutions that require adherence to trade agreements. The remote port selector enhances usability in rack-mounted or hard-to-reach installations, ensuring convenient access without physical strain.
Multi-User Workstations
Ideal for shared workspaces where two users need independent access to two computers with dual 4K monitors, optimizing collaboration and resource utilization.
Scalable Visual Setups
Supports expansion to four 4K monitors by connecting additional units, catering to advanced video production, simulation, and monitoring applications.
What's in the Box
The package includes all necessary components for immediate setup and operation, ensuring a complete out-of-the-box experience.
Highlights
- Supports 2 computers and 2 local users with dual 4K HDMI monitors at 4096x2160 resolution
- HDMI 2.0 and HDCP 2.2 compliant for modern 4K display compatibility
- Independent switching of KVM, USB, and audio devices for flexible control
- USB 3.0 hub with SuperSpeed 5Gbps transfer rate for fast peripheral sharing
- Control via front panel pushbuttons, hotkeys, or mouse for convenient operation
- Expandable setup by adding another unit to support up to four 4K monitors
- TAA compliant and environmentally friendly with RoHS/WEEE standards
- Includes remote port selector, HDMI cables, USB cables, and audio cables
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS1942H |
| Brand Name | IOGEAR |
| Product Model | GCS1942H |
| Product Name | 2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 2 |
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 6 |
| Number of HDMI Ports | 6 |
| Miscellaneous | |

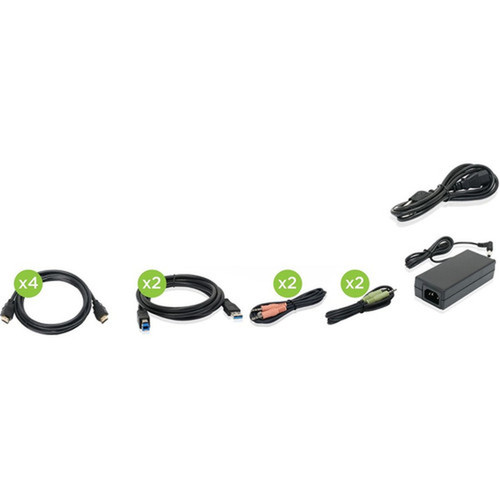

| Package Contents | 2-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio 4 x HDMI Cables (6ft.) 2 x USB 3.0 Cables (6ft.) 2 x Audio Cable Set (6ft.) 1 x Power Adapter 1 x Remote Port Selector 1 x Quick Start Guide |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can the IOGEAR GCS1942H KVMP switch support?
The IOGEAR GCS1942H supports two computers, allowing two local users to operate them simultaneously with shared peripherals. This configuration is ideal for multi-user workstations or environments where efficient computer management is needed without duplicating hardware.
What is the maximum video resolution supported by this KVMP switch?
This switch supports a maximum video resolution of 4096 x 2160 at 60Hz, delivering Cinema 4K quality for high-end displays. It is HDMI 2.0 and HDCP 2.2 compliant, ensuring compatibility with modern 4K monitors and protected content for professional visual applications.
Can I share USB peripherals between the two connected computers?
Yes, the GCS1942H includes a USB 3.0 hub that allows you to control and share USB peripherals between the two computers. With independent switching, you can work on one computer without interrupting USB connectivity on the other, reducing the need for duplicate devices and saving costs.
How do I switch between computers on this KVMP switch?
You can switch between computers using multiple methods: front panel pushbuttons, hotkeys, or mouse controls. The included remote port selector also provides convenient switching for rack-mounted or hard-to-reach installations, offering flexibility in various deployment scenarios.
Is the IOGEAR GCS1942H expandable for more monitors?
Yes, you can expand the setup by adding another GCS1942H unit to support up to four 4K monitors. This scalability makes it suitable for advanced visual tasks such as video editing, simulation, or monitoring where additional screen real estate is required.
What compliance standards does this KVMP switch meet?
The GCS1942H is TAA compliant, making it suitable for government and institutional purchases. It also meets environmental standards including Restriction of Hazardous Substances (RoHS) and Waste Electrical and Electronic Equipment Directive (WEEE), and comes with a 3-year limited warranty for reliability assurance.
