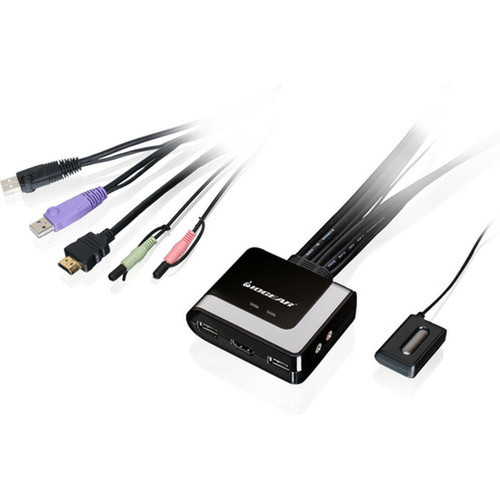

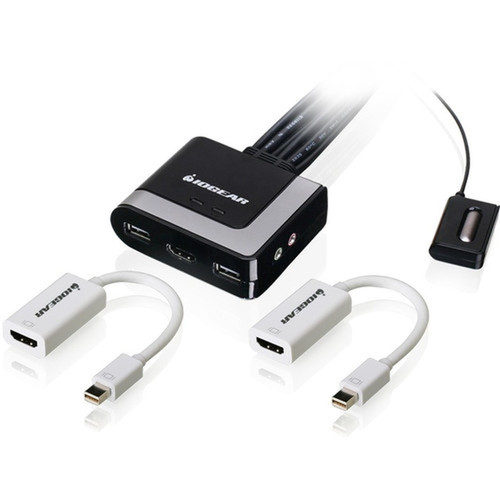

IOGEAR GCS62HMDPKIT 2-Port HD Cable KVM Switch with MiniDisplayPort Adapters - 1920 x 1200 HDMI - USB - 2 Computers
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch delivers reliable performance with HDMI connectivity for video and audio, supporting digital audio pass-through including 2.1 stereo sound and microphone input. It is HDCP compliant, ensuring compatibility with protected content, and works across multiple OS platforms including Windows, macOS, and Linux.
Switching between connected computers can be done via a remote switch button, mouse scroll, or customizable hotkeys. The hotkey functionality allows independent control of KVM and audio switching, providing a seamless user experience without interrupting workflow.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The IOGEAR GCS62HMDPKIT enhances workspace efficiency by consolidating control of two computers into a single setup. Its inclusion of MiniDisplayPort adapters expands compatibility, while the compact design minimizes desk clutter.
Enhanced Connectivity
Supports HDMI for high-definition video and audio, with USB ports for keyboard and mouse peripherals, ensuring a complete connection solution.
- Full 1080p and up to 1920x1200 resolution
- Digital audio with 2.1 stereo sound
- Microphone support for communication
Flexible Switching Options
Offers multiple methods to switch between computers, including a physical button, mouse commands, and programmable hotkeys for tailored control.
- Remote switch button for easy access
- Mouse scroll or hotkey activation
- Independent audio and KVM switching
Deployment / Use Cases
This KVM switch is ideal for environments where space is limited or multiple systems need to be accessed from a single station. Common use cases include home offices, IT labs, gaming setups, and small business workstations.
For example, users can separate internet and intranet activities by assigning each computer to a different network, enhancing security with a simple button click. It also supports game consoles, making it versatile for entertainment systems alongside computing tasks.
Relevant factors for this section include Number of Computers Supported, Number of Local Users Supported, Maximum Video Resolution. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Home Office Setup
Manage a work laptop and personal desktop from one monitor, keyboard, and mouse, reducing cable clutter and improving ergonomics.
IT and Development Labs
Switch between testing environments on different operating systems or hardware configurations without multiple peripherals.
Physical Profile
The switch measures 3.13" wide, 2.50" high, and 1" deep, with a lightweight design of approximately 1 pound. Its small footprint makes it easy to place on a desk or mount discreetly, while the durable construction ensures long-term reliability in daily use.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.50" (63.50 mm), 3.13" (79.38 mm), 1" (25.40 mm), 1 lb (453.59 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.13" (79.38 mm)
- Depth
- 1" (25.40 mm)
- Height
- 2.50" (63.50 mm)
- Weight
- 1 lb (453.59 g)
What's in the Box
The bundle includes all necessary components for immediate setup and use.
Highlights
- Share one HDMI display, USB keyboard, and mouse between 2 computers

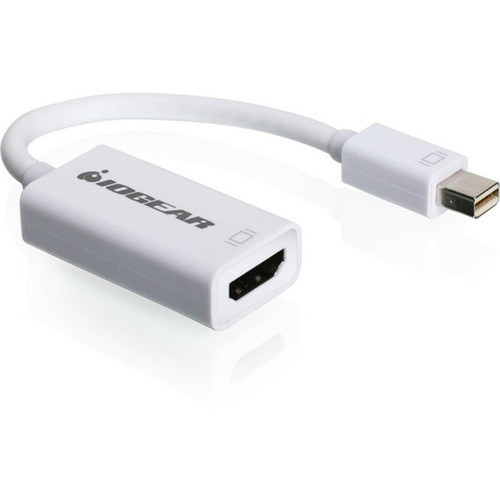

- Includes 2 MiniDisplayPort to HDMI adapters for expanded compatibility
- Supports video resolutions up to 1920x1200 at 60Hz
- HDCP compliant for protected content playback
- Multi-OS platform support (Windows, macOS, Linux)
- Switch via remote button, mouse, or customizable hotkeys
- Digital audio support with 2.1 stereo sound and microphone
- Works with game consoles for versatile entertainment setups
- Compact design with dimensions of 3.13" x 2.50" x 1"
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS62HMDPKIT |
| Brand Name | IOGEAR |
| Product Name | 2-Port HD Cable KVM with MiniDisplayPort Adapters Bundle |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of USB Ports | 2 |
| Number of HDMI Ports | 1 |
| Physical Characteristics | |
| Height | 2.50" (63.50 mm) |
| Width | 3.13" (79.38 mm) |
| Depth | 1" (25.40 mm) |
| Weight (Approximate) | 1 lb (453.59 g) |
| Miscellaneous | |
| Package Contents | 2-Port HD Cable KVM Switch 2 x MiniDisplay Port to HDMI Adapters 1 x Installation Guide 1 x Warranty Card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can I connect to this KVM switch?
The IOGEAR GCS62HMDPKIT supports two computers simultaneously. You can connect both systems to a single HDMI display, USB keyboard, and mouse, allowing seamless switching between them without needing duplicate peripherals.
What video resolution does this KVM switch support?
This switch supports a maximum video resolution of 1920 x 1200 at 60Hz, which includes Full HD 1080p. It ensures high-definition visuals for tasks like gaming, video editing, or general productivity across connected computers.
Does this bundle include adapters for MiniDisplayPort connections?
Yes, the bundle includes two MiniDisplayPort to HDMI adapters. These adapters allow you to connect computers with MiniDisplayPort outputs to the KVM switch's HDMI port, expanding compatibility with a wider range of devices.
Can I switch between computers using hotkeys?
Yes, the KVM switch supports hotkey switching for convenient control. You can program hotkeys to toggle between computers independently for both KVM and audio functions, enabling quick transitions without physical button presses.
Is this KVM switch compatible with game consoles?
Yes, the IOGEAR GCS62HMDPKIT works with game consoles that support HDMI output. This makes it suitable for entertainment setups where you might want to switch between a console and a computer using the same display and peripherals.
What is included in the warranty for this product?
The product comes with a 3-year limited warranty from IOGEAR. This warranty covers defects in materials and workmanship, providing assurance for long-term use in home, office, or light commercial environments.
