IOGEAR GCS72DPKIT 2-Port USB VGA Cable KVM with DisplayPort Adapters - 2-Computer 1-User 2048 x 1536 Resolution
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM switch employs a cable-based architecture that integrates USB and VGA connections into a single compact enclosure measuring 6 inches high by 2 inches wide by 7 inches deep. The hardware supports switching between two computers via a physical button on the device, providing immediate control without software dependencies. Video transmission utilizes VGA analog signaling with support for resolutions up to 2048 x 1536, while USB 2.0 connectivity handles keyboard, mouse, and audio peripheral data.
The conversion capability centers on the included DisplayPort to VGA adapters, which translate digital DisplayPort signals to analog VGA output. This allows computers with DisplayPort outputs to connect to the KVM's VGA input, expanding compatibility beyond traditional VGA-equipped systems. The device operates without external power by drawing minimal current from the connected computers' USB ports, making it suitable for environments where power outlets are limited or unavailable.
Key Product Advantages
The GCS72DPKIT combines cost-effective hardware consolidation with straightforward deployment. By eliminating the need for duplicate keyboards, mice, and monitors, it reduces desktop clutter and hardware expenses while maintaining full control over two computer systems. The inclusion of DisplayPort adapters addresses the growing transition away from legacy VGA ports, ensuring relevance in mixed-generation IT environments.
Simplified Switching
Instant computer switching via physical button eliminates software configuration and maintains security through hardware isolation.
- No software installation required
- Hardware-based switching for reliability
- Maintains separate computer sessions
Expanded Compatibility
DisplayPort to VGA adapters bridge modern and legacy video interfaces, supporting computers with either connection type.
- Includes two DisplayPort to VGA adapters
- Supports mixed computer generations
- Maintains video quality through conversion
Deployment / Use Cases
This KVM is ideal for workstations where operators need simultaneous access to multiple computers without dedicating separate peripherals to each system. Common deployment scenarios include IT support desks, financial trading stations, development environments, and security monitoring centers where operators toggle between production and testing systems, or between different network segments.
The compact form factor and cable-integrated design make it suitable for space-constrained environments like call centers, library computer labs, and shared office workstations. The plug-and-play operation allows quick deployment in temporary setups such as trade show displays, training rooms, or emergency operations centers where minimal configuration time is critical. Compatibility with PC, Mac, and Sun platforms ensures broad organizational utility across heterogeneous computing environments.
Physical Profile

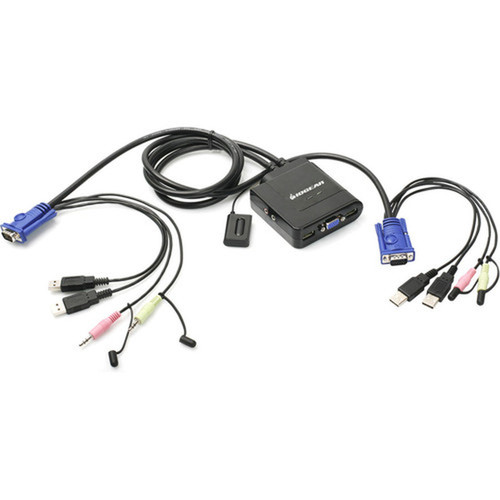

The KVM switch features a compact rectangular enclosure with integrated 3-foot cables for both USB and VGA connections. With dimensions of 6 inches high, 2 inches wide, and 7 inches deep, it occupies minimal desk space while providing sufficient internal circuitry for signal switching and conversion. The 13.12-ounce weight ensures stability during use without requiring additional mounting hardware. The molded cable design reduces connection points and potential failure points compared to modular cable systems.
- Width
- 2" (50.80 mm)
- Depth
- 7" (177.80 mm)
- Height
- 6" (152.40 mm)
- Weight
- 13.12 oz (371.95 g)
What's in the Box
The package includes all components needed for immediate deployment of a two-computer KVM setup.
Highlights
- Switch between two computers with a single button press
- Includes two DisplayPort to VGA adapters for modern computer compatibility
- Operates without external power—draws minimal current from USB ports
- Supports 2048 x 1536 maximum resolution with DDC2B communication
- Provides 2.1 stereo audio and microphone pass-through
- Features 3-foot molded-in cables for simplified setup
- Compatible with PC, Mac, and Sun operating platforms
- Plug-and-play operation requires no software installation
- Compact design measures 6"H x 2"W x 7"D
- Backed by a 3-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GCS72DPKIT |
| Brand Name | IOGEAR |
| Product Name | 2-Port USB VGA Cable KVM with DisplayPort Adapters |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 2048 x 1536 |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 2 |
| Number of VGA Ports | 1 |
| Physical Characteristics | |
| Height | 6" (152.40 mm) |
| Width | 2" (50.80 mm) |
| Depth | 7" (177.80 mm) |
| Weight (Approximate) | 13.12 oz (371.95 g) |
| Miscellaneous | |
| Package Contents | 2-Port USB Cable KVM 2 x DisplayPort to VGA Adapters 1 x Quick Start Guide 1 x Warranty Card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many computers can this KVM switch control?
The IOGEAR GCS72DPKIT supports two computers simultaneously. One set of peripherals—including a USB keyboard, USB mouse, and VGA monitor—can control both connected systems through hardware switching. This configuration is ideal for dual-computer workstations where operators need access to multiple systems without duplicate hardware.
What video resolution does this KVM support?
This KVM switch supports a maximum video resolution of 2048 x 1536. It maintains this resolution across both connected computers when using VGA connections, with DDC2B support for automatic monitor configuration. The included DisplayPort to VGA adapters preserve this resolution capability for computers with DisplayPort outputs.
Does this KVM require external power or software?
No external power supply or software installation is required for basic operation. The device draws minimal power from the connected computers' USB ports, eliminating the need for an AC adapter. Switching between computers is handled through a physical button on the device, making it a true plug-and-play solution without driver dependencies.
What is included with the DisplayPort adapters?
The package includes two DisplayPort to VGA adapters. These adapters convert digital DisplayPort signals from modern computers to analog VGA output compatible with the KVM switch. This allows computers lacking native VGA ports to connect to the KVM, expanding compatibility across mixed hardware environments without additional purchases.
What audio capabilities does this KVM provide?
The KVM supports 2.1 stereo audio and microphone pass-through via USB connectivity. This allows audio peripherals like speakers, headphones, and microphones to function with both connected computers. The audio switching occurs simultaneously with video and USB peripheral switching, maintaining complete peripheral consolidation.
What connectivity or interface options are available?
Connectivity support is listed in the product specifications, including the relevant wireless or port options when available.
