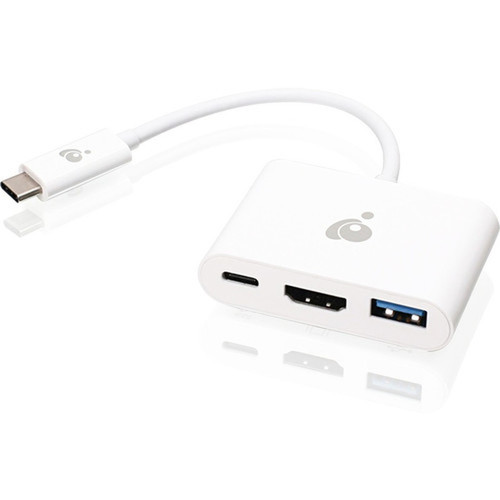

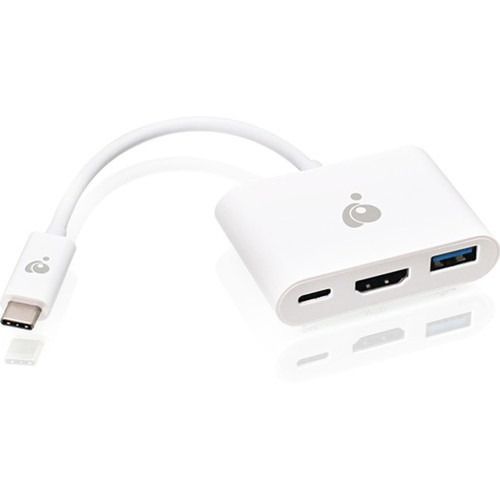

IOGEAR GUC3C3H USB-C to HDMI/USB Multiport Adapter - 4K@30Hz - 60W PD - Thunderbolt 3 Compatible for Notebooks
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter supports DisplayPort Alternate Mode over USB-C, enabling direct video transmission to HDMI displays at 3840 x 2160 resolution. The 30Hz refresh rate provides smooth video playback for presentations, streaming content, and general productivity applications.
Data transfer operates at USB 3.0 speeds (5Gbps) through both the downstream USB-C port and USB Type-A port, allowing simultaneous connection of peripherals like external storage, keyboards, and mice. The 60W power delivery capability charges compatible notebooks while the adapter is in use, eliminating the need for separate power adapters in many scenarios.
Relevant factors for this section include Connectivity Technology, Supported Resolutions, Screen Mode Supported, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This multiport adapter consolidates multiple connectivity needs into one streamlined solution. By combining video output, USB expansion, and power delivery in a single compact device, it reduces cable clutter and simplifies your mobile workspace setup.
Simultaneous Functionality
Drive a 4K display while charging your notebook and connecting USB peripherals through a single USB-C port connection.
- 4K video output to HDMI displays
- 60W power delivery for charging
- Two USB ports for peripherals
Broad Compatibility
Works with Windows and macOS systems supporting USB-C, including Thunderbolt 3 notebooks that maintain USB-C compatibility.
- Windows 7 through 10 support
- macOS 10.7 Lion and later
- Thunderbolt 3 systems via USB-C
Deployment / Use Cases
The GUC3C3H adapter serves as an ideal solution for professionals who need to connect their notebooks to external displays in meeting rooms, conference centers, or office environments. Its compact form factor makes it easy to carry in a laptop bag while providing full connectivity when away from a dedicated docking station.
Educational institutions can deploy these adapters in classrooms and computer labs to standardize connectivity between various notebook models and existing HDMI displays. The adapter's simple plug-and-play operation requires no drivers for basic functionality, reducing support overhead while maintaining reliable performance across different user devices.
Presentation Environments
Connect notebooks to projectors and large-format displays in conference rooms and auditoriums with stable 4K video output.
- Boardroom presentations
- Training session displays
- Digital signage connections
Mobile Workstations
Extend notebook capabilities with additional USB ports while maintaining charging during extended work sessions away from primary workstations.
- Remote office setups
- Co-working space configurations
- Field service applications
Physical Profile
Measuring just 0.60" in height and 1.60" in depth, this adapter maintains an extremely compact footprint that won't obstruct adjacent ports on your notebook. The lightweight design at 0.80 ounces adds minimal bulk to your mobile setup while providing robust connectivity options. The small form factor makes it ideal for travel and situations where space constraints exist near your notebook's USB-C port.
- Depth
- 1.60" (40.64 mm)
- Height
- 0.60" (15.24 mm)
- Weight
- 0.80 oz (22.68 g)
What's in the Box
The package includes everything needed for immediate deployment of the adapter with your notebook system.
Highlights
- Expands USB-C to HDMI, USB-C, and USB Type-A ports
- 4K video resolution at 3840 x 2160 @30Hz
- 60W USB Power Delivery for charging compatible notebooks
- USB 3.0 speed (5Gbps) on both USB ports
- Thunderbolt 3 compatibility via USB-C interface
- DisplayPort Alternate Mode support
- Windows and macOS operating system compatibility
- Compact design at 0.60" x 1.60" and 0.80 oz
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GUC3C3H |
| Brand Name | IOGEAR |
| Product Name | USB-C to HDMI / USB Multiport Adapter |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K @30Hz |
| Device Supported | Notebook |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Number of USB Type-C Ports | 1 |
| USB Type-C | Yes |
| Number of USB Type-A Ports | 1 |
| USB Type-A | Yes |
| DisplayPort | Yes |
| HDMI | Yes |
| Thunderbolt | Yes |
| USB Power Delivery | 60W |
| Software | |
| Operating System Supported | Windows 7,Windows 8,Windows 8.1,Windows 10,Mac OS X Server 10.7 Lion |
| Physical Characteristics | |
| Height | 0.60" (15.24 mm) |
| Depth | 1.60" (40.64 mm) |
| Weight (Approximate) | 0.80 oz (22.68 g) |
| Miscellaneous | |
| Package Contents | USB-C to HDMI / USB Multiport Adapter 1 x Warranty Card |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What resolution and refresh rate does this adapter support?
The IOGEAR GUC3C3H adapter supports 4K resolution at 3840 x 2160 pixels with a 30Hz refresh rate. This provides clear, detailed video output suitable for presentations, video playback, and general productivity applications on compatible HDMI displays.
How much power can this adapter deliver to my notebook?
This adapter provides up to 60W of USB Power Delivery, which can charge many modern notebooks while simultaneously transmitting video and data. The power delivery capability eliminates the need for a separate power adapter in many usage scenarios, simplifying your mobile workspace setup.
What types of USB ports are available on this adapter?
The adapter includes one USB Type-C downstream port and one USB Type-A port, both operating at USB 3.0 speeds of 5Gbps. These ports allow you to connect peripherals like external storage devices, keyboards, mice, and other USB accessories while using the adapter for video output.
Is this adapter compatible with Thunderbolt 3 notebooks?
Yes, the adapter is compatible with Thunderbolt 3 notebooks that maintain USB-C compatibility. It uses standard USB-C connectivity that works with Thunderbolt 3 systems, providing the same video, data, and power delivery functionality across compatible devices.
Which operating systems does this adapter support?
The adapter supports Windows 7, Windows 8, Windows 8.1, Windows 10, and Mac OS X Server 10.7 Lion and later versions. It typically operates in plug-and-play mode without requiring additional drivers for basic functionality on these operating systems.
What is included in the package with this adapter?
The package contains the USB-C to HDMI/USB Multiport Adapter unit and a warranty card. The adapter itself provides all necessary connectivity without requiring additional cables or accessories for basic operation with your notebook and display.
