IOGEAR GWHDMS52MBK3 Long Range Wireless 5 x 2 HDMI Matrix PRO with 2 Additional Receivers - 1080p Full HD - 200 ft Range - 5 Inputs - 4 Outputs
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The GWHDMS52MBK3 operates on a wireless connectivity platform, transmitting fully uncompressed HD video at resolutions up to 1920 x 1080. It supports a comprehensive range of video formats, including 480p, 720p, 1080i, and 1080p at 24, 30, or 60 frames per second, along with 3D content compatibility. The system's multicast capability allows content to be sent to up to five HDTVs at the same time, with four of those connections being wireless.
Port configuration includes four HDMI inputs and four HDMI outputs, plus two USB ports and component video input for broader device compatibility. An integrated IR blaster cable and sensor extender cables ensure reliable remote control operation across the extended wireless network. The transmitter and receivers are powered by included adapters, with all necessary cables and accessories provided in the package.
Relevant factors for this section include Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The GWHDMS52MBK3 stands out for its combination of long-range wireless performance, flexible matrix switching, and comprehensive accessory inclusion. Unlike basic HDMI extenders, this system provides true multicast functionality, enabling simultaneous content distribution to multiple displays without signal degradation. The built-in 5x2 matrix allows users to independently select sources for different TVs, making it a versatile solution for complex AV environments.
Wireless Convenience
Eliminate long HDMI cable runs with reliable wireless transmission up to 200 feet through walls, maintaining full HD quality.
- No compression artifacts
- Easy installation
- Reduced cable clutter
Matrix Flexibility
Switch any of five source devices between two displays independently, with one local connection and additional wireless receivers.
- Independent source selection
- Local and wireless outputs
- 5x2 switching capability
Complete Package
Includes three wireless receivers, four remote controls, all necessary cables, power adapters, and comprehensive documentation.
- Ready to deploy
- No additional purchases needed
- Full accessory set
Deployment / Use Cases
The GWHDMS52MBK3 is engineered for environments where distributing high-quality video to multiple displays without extensive cabling is essential. In residential settings, it can connect Blu-ray players, gaming consoles, cable boxes, and media servers to TVs in different rooms, allowing family members to enjoy content from shared sources simultaneously. The wireless range ensures reliable performance even in larger homes with multiple walls between transmitter and receivers.
Commercial applications include conference rooms where presentations need to be shown on multiple monitors, retail stores displaying promotional content across several screens, or hospitality venues streaming entertainment to guest rooms. The system's support for 3D content and 5.1 audio makes it suitable for home theater setups, while the included IR extension cables maintain remote control functionality throughout the installation.
Whole-Home Entertainment
Distribute content from a central media server or cable box to TVs in living rooms, bedrooms, and kitchens without running new cables through walls.
Business Presentations
Show PowerPoint slides, videos, or live demos on multiple displays in meeting rooms or trade show booths with clean, professional wireless connectivity.
What's in the Box

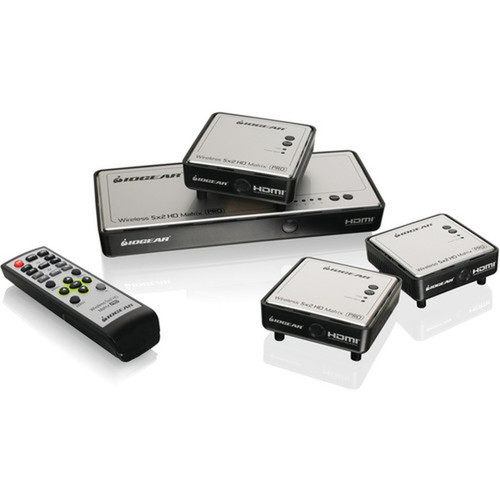

The GWHDMS52MBK3 arrives with everything needed for immediate deployment. The package includes the core wireless HDMI transmitter, three additional wireless HDMI receivers for expanded coverage, and four remote controls for convenient operation.
Highlights
- Long-range wireless HDMI matrix with 200-foot transmission through walls
- Includes wireless transmitter plus three receivers for multi-display setups
- 5x2 matrix switching for independent source selection between displays
- Supports full uncompressed 1080p HD, 3D content, and 5.1 digital audio
- Multicast capability sends content to up to five displays simultaneously
- Four HDMI inputs and four HDMI outputs for flexible device connections
- Compatible with Blu-ray players, gaming consoles, cable boxes, and computers
- Complete package with all necessary cables, remotes, and power adapters
Specifications
| Specifications | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Manufacturer Part Number | GWHDMS52MBK3 |
| Brand Name | IOGEAR |
| Product Model | GWHDMS52MBK3 |
| Product Name | Long Range Wireless 5x2 HDMI Matrix PRO with 2 Additional Receivers |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Wireless |
| Number of Input Devices Supported | 5 |
| Device Supported | TV |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Modes | Full HD |
| Maximum Video Resolution | 1920 x 1080 |
| Interfaces/Ports | |
| Component Video In | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Media & Performance | |
| Maximum Operating Distance | 200 ft (60960 mm) |
| Miscellaneous | |
| Package Contents | 1 x Wireless HDMI Transmitter 3 x Wireless HDMI Receivers 4 x Remote Controls 1 x Component Adapter Cable 1 x IR Blaster Cable (Transmitter) 3 x IR Sensor Extender Cables (Receiver) 4 x Power Adapters 3 x HDMI Cables 8 x Batteries 1 x User's Guide 1 x Warranty Card |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 1 Year |
FAQ
What is the maximum wireless range of the GWHDMS52MBK3 HDMI Matrix?
The GWHDMS52MBK3 provides reliable wireless transmission up to 200 feet (approximately 61 meters) through standard home walls. This range allows flexible placement of receivers in different rooms or across larger spaces without signal degradation, supporting full HD video quality throughout the coverage area.
How many displays can this system support simultaneously?
The system supports up to four displays simultaneously, with multicast capability to distribute content to all of them at the same time. One display connects locally to the transmitter's loop-through port, while the other three utilize wireless receivers included in the package.
What video resolutions and formats does the GWHDMS52MBK3 support?
It supports Full HD resolution up to 1920 x 1080 at 24, 30, or 60 frames per second. Compatible formats include 480p, 720p, 1080i, and 1080p, along with 3D content. The wireless transmission maintains uncompressed video quality with 5.1 channel digital audio.
How many source devices can I connect to this HDMI matrix?
The GWHDMS52MBK3 supports up to five source devices through its input configuration. These can include Blu-ray/DVD players, DVR/cable boxes, gaming consoles, computers, or media servers. The 5x2 matrix allows independent switching between these sources for different display outputs.
Does the system include everything needed for installation?
Yes, the package contains all necessary components: one wireless HDMI transmitter, three wireless HDMI receivers, four remote controls, component adapter cable, IR blaster cable, three IR sensor extender cables, four power adapters, three HDMI cables, eight batteries, user's guide, and warranty card. No additional purchases are required for basic setup.
What is the warranty coverage for the GWHDMS52MBK3?
IOGEAR provides a one-year limited warranty for the GWHDMS52MBK3, covering defects in materials and workmanship under normal use. The warranty card included in the package contains detailed terms, and the product is manufactured in Taiwan with IOGEAR's quality standards.
