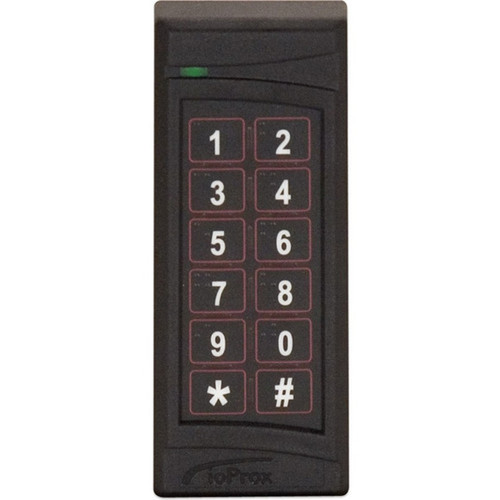

Kantech P225KPXSF ioProx Card Reader Access Device - Proximity & Key Code - 6. 5" Range - Indoor/Outdoor/Door - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This card reader utilizes proximity technology with a consistent 6.5-inch (165 mm) operating range, ensuring quick and reliable card reads without physical contact. The integrated keypad supports numeric code entry, adding a layer of flexibility for users who may not carry access cards.
The device features a Wiegand interface for seamless integration with standard access control systems, and it accepts dual-encoded card formats including Kantech Extended Security Format (XSF) and 26-bit Wiegand. Power is supplied via 14V DC input, compatible with typical access control power supplies.
This section brings together practical product details such as Identification Method, Operating Range, Application/Usage, Wiegand, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The P225KPXSF provides multiple authentication methods in a single compact device, reducing hardware costs and installation complexity compared to separate card readers and keypads. Its consistent performance across varying environmental conditions ensures reliable access control year-round.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Dual Authentication Flexibility, Environmental Durability.
Dual Authentication Flexibility
Support both proximity cards and numeric key codes from the same unit, accommodating different user preferences and security protocols.
- Proximity for hands-free access
- Keypad for code-based entry
- Reduced hardware footprint
Environmental Durability
Rated for indoor, outdoor, and door applications with robust construction that withstands temperature variations and weather exposure.
- Weather-resistant design
- Temperature tolerant
- UV-stable materials
Deployment / Use Cases
This card reader is ideal for commercial buildings, office complexes, educational institutions, and healthcare facilities where controlled access is required at multiple entry points. Its versatility supports both interior doors and exterior gates or perimeter entrances.
Common installations include main lobby entrances, parking garage access points, server room doors, and restricted area portals. The device integrates easily with existing Kantech access control systems and other Wiegand-compatible security platforms.
This section brings together practical product details such as Identification Method, Operating Range, Application/Usage, Wiegand, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Commercial Entry Control
Manage employee and visitor access at building entrances, elevators, and departmental boundaries with consistent authentication.
Perimeter Security
Secure exterior gates, parking facilities, and loading docks with weather-resistant performance that maintains reliability outdoors.
Physical Profile
The compact dimensions of 4.49" height × 1.73" width × 0.83" depth (114 × 44 × 21 mm) allow for discreet installation on door frames, walls, or turnstiles without obstructing passageways. The black matte finish resists fingerprints and maintains a clean appearance with minimal maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4.49" (114 mm), 1.73" (44 mm), 0.83" (21 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 1.73" (44 mm)
- Depth
- 0.83" (21 mm)
- Height
- 4.49" (114 mm)
Highlights
- Dual authentication with proximity and key code identification
- 6.5-inch (165 mm) operating range for consistent card reads
- Rated for indoor, outdoor, and door applications
- Wiegand interface for access control system integration
- Supports XSF and 26-bit Wiegand card formats
- 14V DC power input compatible with standard supplies
- Compact black design for discreet installation
- Weather-resistant construction for exterior use
Specifications
| Specifications | |
|---|---|
| Manufacturer | Johnson Controls |
| Manufacturer Part Number | P225KPXSF |
| Brand Name | Kantech |
| Product Line | ioProx |
| Product Series | P |
| Product Model | P225KPXSF |
| Product Name | ioProx P225KPXSF Card Reader Access Device |
| Product Type | Card Reader Access Device |
| Technical Information | |
| Identification Method | Proximity,Key Code |
| Operating Range | 6.50" (165 mm) |
| Application/Usage | Indoor,Outdoor,Door |
| Interfaces/Ports | |
| Wiegand | Yes |
| Power Description | |
| Input Voltage | 14 V DC |
| Physical Characteristics | |
| Product Color | Black |
| Height | 4.49" (114 mm) |
| Width | 1.73" (44 mm) |
| Depth | 0.83" (21 mm) |
| Miscellaneous | |
| Compatibility | Compatible Card Formats: Dual encoded - XSF (Kantech Extended Security Format) and 26-bit Wiegand |
FAQ
What authentication methods does this card reader support?
The Kantech P225KPXSF supports both proximity card reading and numeric key code entry. This dual-method approach allows organizations to issue proximity cards for regular users while maintaining keypad access for visitors, temporary personnel, or backup authentication when cards are unavailable.
What is the operating range for proximity card reading?
The proximity reading range is 6.5 inches (165 millimeters). This distance provides consistent card detection without requiring physical contact between the card and reader, enabling quick, hands-free access while maintaining security through encrypted communication between card and reader.
Can this reader be installed outdoors?
Yes, the P225KPXSF is rated for outdoor applications in addition to indoor and door-mounted installations. Its construction withstands environmental factors like temperature variations, moisture, and UV exposure, making it suitable for exterior gates, parking facilities, and building perimeter entrances.
What card formats are compatible with this reader?
The reader supports dual-encoded card formats including Kantech Extended Security Format (XSF) and standard 26-bit Wiegand. This compatibility allows integration with both Kantech-specific security systems and broader access control platforms that utilize the widely adopted Wiegand communication protocol.
What power supply does this device require?
The card reader operates on 14 volts DC input. This voltage is standard for access control hardware and is typically supplied by dedicated access control power supplies or integrated power modules within access control panels, ensuring reliable operation without requiring specialized electrical infrastructure.
What are the physical dimensions of this card reader?
The device measures 4.49 inches in height, 1.73 inches in width, and 0.83 inches in depth (114 × 44 × 21 millimeters). These compact dimensions facilitate installation on door frames, walls, or turnstiles without obstructing passageways, while the black finish provides a discreet, professional appearance.
What connectivity or interface options are available?
Connectivity details help confirm how the product integrates with your network, accessories, and surrounding peripherals before rollout or replacement planning. They are often the difference between a technically compatible device and one that is genuinely easy to deploy.
