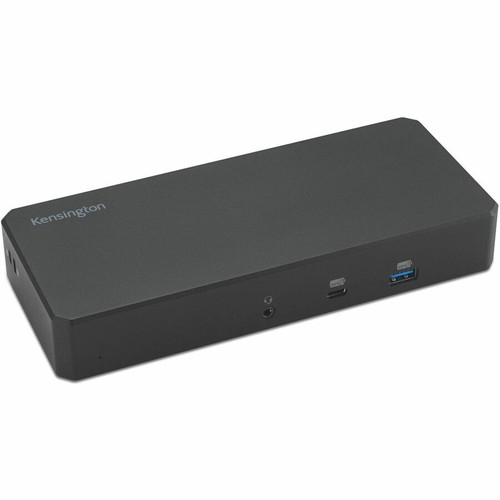

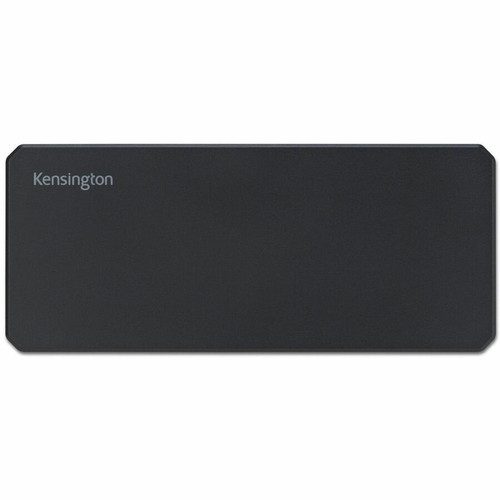

Kensington SD3220U3 EQ USB-C® 10Gbps Triple Video Driverless Dock - for Notebook, Monitor, Smartphone - Charging Capability - 135 (K32803NA)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SD3220U3 EQ USB-C 10Gbps Triple Video Driverless Dock
- 1 x USB-C 3.2 Gen2 passive Cable
- 1 x 135W Power Supply Unit
- 1 x NA Power Cord
- 1 x Quick Installation Guide
- 1 x Compliance Sheet
- 1 x Warranty Card
- 1 x Welcome Card
Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 3
Supported Resolutions: 7680 x 4320,3840 x 2160,2048 x 1080,1920 x 1080,1600 x 900
Screen Mode Supported: 8K @ 30Hz,4K @ 60Hz,4K @30Hz,2K @ 60Hz,FHD @ 60Hz,HD+
Memory Card Reader: No
Device Supported: Notebook,Monitor,Smartphone
Ethernet Technology: Gigabit Ethernet
Host Interface: USB 3.2 (Gen 2) Type C
Total Number of USB Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 4
Number of USB 3.2 Gen 2 Type-C Ports: 2
Number of USB Type-C Ports: 1
USB Type-C: Yes
USB Type-C Detail: 1 x USB-C® 3.2 Gen2 (5V/1.5A) BC 1.2, 1 x USB-C® Host Docking Connector with up to 100W Dynamic Power Delivery
Number of USB Type-A Ports: 4
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPorts: 2
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
USB Power Delivery: 100W
Operating System Supported: Windows 10,Windows 11
Maximum Power Supply Wattage: 135 W
Product Color: Black
Height: 1.18" (29.97 mm)
Width: 3.34" (84.84 mm)
Weight (Approximate): 8.96 oz (254.01 g)
Package Contents:
Kensington Security Slot: Yes
Compatibility: USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to triple 4K
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: Taiwan
Limited Warranty: 3 Year
- tation, monitor, and laptop all need to support DSC v1.2.
- Plug-and-play for Thunderbolt™ 5, Thunderbolt™ 4, USB4®, and USB-C® Alt-Mode laptops running Windows 10 or Windows 11.
- Supports up to 100W of power to host laptop and connected accessories.
- All five high-speed USB ports receive power and continue to charge even when the host laptop is undocked.
- 10-in-1 design offers a full suite of ports to seamlessly connect your peripherals.
- The outer case of this docking station is made of plastic containing 71% post-consumer recycled (PCR) content* and it is shipped in FSC® certified packaging. *Does not include the cable, power supply, or power cords.
- Zero-footprint mounting option support a tidier workspace.
- Security cable lock slots support device protection.
- Free Kensington DockWorks™ software.
- 3-year limited warranty.
- Supports federal government standards for sourcing and quality.
[custom-specifications]
| Specifications | |
| Manufacturer | Kensington Computer Products Group |
| Manufacturer Part Number | K32803NA |
| Manufacturer Website Address | http://www.kensington.com |
| Brand Name | Kensington |
| Product Model | SD3220U3 |
| Product Name | SD3220U3 EQ USB-C 10Gbps Triple Video Driverless Dock 100W PD - DP/HDMI -Windows |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 3 |
| Supported Resolutions | 7680 x 4320,3840 x 2160,2048 x 1080,1920 x 1080,1600 x 900 |
| Screen Mode Supported | 8K @ 30Hz,4K @ 60Hz,4K @30Hz,2K @ 60Hz,FHD @ 60Hz,HD+ |
| Memory Card Reader | No |
| Device Supported | Notebook,Monitor,Smartphone |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB 3.2 (Gen 2) Type C |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Number of USB 3.2 Gen 2 Type-C Ports | 2 |
| Number of USB Type-C Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C® 3.2 Gen2 (5V/1.5A) BC 1.2, 1 x USB-C® Host Docking Connector with up to 100W Dynamic Power Delivery |
| Number of USB Type-A Ports | 4 |
| USB Type-A | Yes |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| USB Power Delivery | 100W |
| Software | |
| Operating System Supported | Windows 10,Windows 11 |
| Power Description | |
| Maximum Power Supply Wattage | 135 W |
| Physical Characteristics | |
| Product Color | Black |
| Height | 1.18" (29.97 mm) |
| Width | 3.34" (84.84 mm) |
| Weight (Approximate) | 8.96 oz (254.01 g) |
| Miscellaneous | |
| Package Contents | |
| Kensington Security Slot | Yes |
| Compatibility | USB-C Laptops & Ultrabooks that support Power Delivery and Monitors that support up to triple 4K |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
