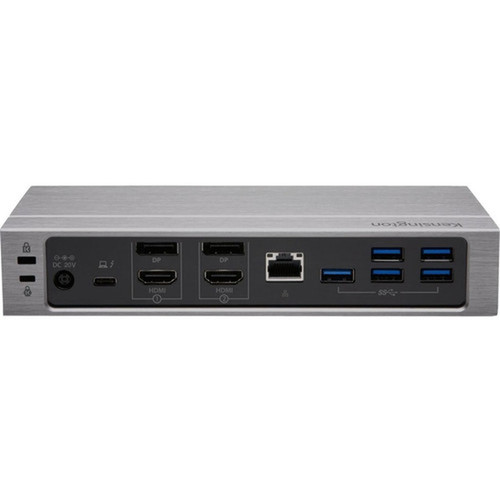

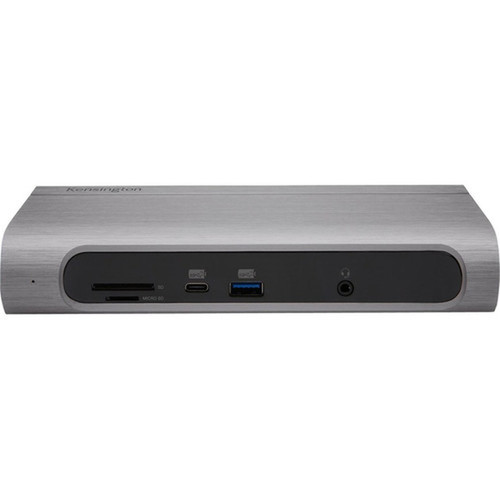

Kensington K34009NA SD5600T Docking Station - USB-C Hub with 96W Power Delivery - Dual 4K Display Support - 7 USB Ports - Gigabit Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SD5600T connects to your laptop via a single USB Type-C cable that carries data, video, and up to 96W of power delivery. This eliminates the need for separate power adapters while maintaining full laptop charging capability during intensive use.
Video output supports two simultaneous displays at resolutions up to 4K (3840x2160) with refresh rates of 60Hz for smooth visuals. The docking station includes both HDMI and DisplayPort 1.2 outputs, providing flexibility for different monitor configurations. Seven USB ports accommodate peripherals like keyboards, mice, external drives, and webcams, with one USB 3.2 Gen 2 port delivering faster data transfers.
This section brings together practical product details such as Connectivity Technology, Charging Capability, Number of Displays Supported, Ethernet Technology, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
Beyond basic connectivity, the SD5600T delivers enterprise-ready features including a Kensington Security Slot for physical asset protection and compatibility with Thunderbolt 3 laptops for maximum performance. The 170W power supply ensures stable operation even with multiple high-power devices connected simultaneously.
Single-Cable Simplicity
Connect power, dual displays, Ethernet, and multiple peripherals through one USB-C cable, reducing desktop clutter and simplifying daily docking routines.
- 96W laptop charging
- Data, video, and power consolidation
- Quick connect/disconnect
Professional-Grade Connectivity
Comprehensive port selection meets diverse workstation requirements without needing additional adapters or hubs.
- Dual 4K display support
- Gigabit Ethernet for stable networking
- SD/microSD card reader
- Audio combo port
Deployment / Use Cases
The SD5600T serves as a central connectivity hub for knowledge workers, IT professionals, and creative teams who require reliable multi-display setups with robust peripheral support. Its compatibility with both Windows and macOS systems makes it suitable for mixed-enterprise environments.
For financial analysts, the dual 4K displays provide ample screen real estate for spreadsheets and market data. Software developers benefit from the high-speed USB ports for external storage and the Gigabit Ethernet for stable version control operations. The memory card reader streamlines workflows for photographers and videographers transferring media from cameras.
Hybrid Work Environments
Ideal for professionals transitioning between office and remote work, providing consistent docking experience across locations with minimal setup time.
Creative & Development Workstations
Supports high-resolution dual monitor setups required for video editing, graphic design, coding, and data analysis workflows.
Physical Profile
The docking station features a compact desktop design measuring 7.76" wide × 4.09" deep × 1.45" high (197.1 × 103.89 × 36.83 mm) with a weight of 1.84 lb (834.61 g). Its low-profile form factor fits neatly on desks without occupying excessive space, while the Black and Silver two-tone finish presents a professional appearance that complements modern office aesthetics.
The desktop orientation provides easy access to all ports without requiring users to reach behind equipment. Despite its substantial connectivity options, the unit maintains a footprint smaller than most notebooks, making it an efficient addition to workspace layouts where surface area is limited.
- Width
- 7.76" (197.10 mm)
- Depth
- 4.09" (103.89 mm)
- Height
- 1.45" (36.83 mm)
- Weight
- 1.84 lb (834.61 g)
Highlights
- Single USB-C cable connects power, displays, and peripherals
- Supports dual 4K displays at 60Hz refresh rates
- Delivers 96W Power Delivery for laptop charging
- Includes 7 USB ports (5x USB 3.2 Gen 1, 1x USB 3.2 Gen 2, 1x USB-C)
- Gigabit Ethernet port for wired network connectivity
- SD and microSD card reader built-in
- Compatible with Windows 10 and macOS 10.15 Catalina
- Kensington Security Slot for physical theft protection
- Compact desktop form factor in Black/Silver finish
- 3-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Kensington Computer Products Group |
| Manufacturer Part Number | K34009NA |
| Brand Name | Kensington |
| Product Model | SD5600T |
| Product Name | SD5600T Docking Station |
| Package Type | Bulk |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Supported Resolutions | 3840 x 2160,1920 x 1080,2560 x 1440 |
| Screen Mode Supported | 4K @ 60Hz,4K @30Hz,FHD @ 60Hz,QHD @ 60Hz |
| Memory Card Reader | Yes |
| Memory Card Supported | SD,microSD |
| Device Supported | Monitor,Notebook |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Type-A Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Number of USB Type-C Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen2 (5V/1.5A) |
| Number of USB Type-A Ports | 6 |
| USB Type-A | Yes |
| Network (RJ-45) | Yes |
| Number of DisplayPort Outputs | 2 |
| DisplayPort | Yes |
| DisplayPort Version | 1.2 |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Outputs | 2 |
| HDMI | Yes |
| USB Power Delivery | 96W |
| Software | |
| Operating System Supported | Windows 10,Mac OS X 10.15 Catalina |
| Power Description | |
| Maximum Power Supply Wattage | 170 W |
| Physical Characteristics | |
| Product Color | Black,Silver |
| Form Factor | Desktop |
| Height | 1.45" (36.83 mm) |
| Width | 7.76" (197.10 mm) |
| Depth | 4.09" (103.89 mm) |
| Weight (Approximate) | 1.84 lb (834.61 g) |
| Miscellaneous | |
| Kensington Security Slot | Yes |
| Compatibility | All laptops with Thunderbolt 3 or USB-C ports |
| Country of Origin | Thailand |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
What laptops are compatible with the Kensington SD5600T docking station?
The SD5600T is compatible with laptops featuring Thunderbolt 3 or USB-C ports that support DisplayPort Alternate Mode. This includes most modern Windows laptops and MacBooks from 2016 onward. The docking station specifically supports Windows 10 and macOS 10.15 Catalina operating systems.
How many displays can I connect simultaneously and at what resolutions?
You can connect two displays simultaneously using any combination of the available HDMI and DisplayPort outputs. Supported resolutions include 4K (3840x2160) at 60Hz or 30Hz, QHD (2560x1440) at 60Hz, and FHD (1920x1080) at 60Hz. Both displays can operate at 4K resolution concurrently.
Does this docking station charge my laptop while connected?
Yes, the SD5600T provides up to 96W of USB Power Delivery through the host USB-C connection, sufficient to charge most laptops including high-performance models. This eliminates the need for a separate power adapter while docked.
What types of USB ports are available on the docking station?
The docking station includes seven USB ports: five USB 3.2 Gen 1 Type-A ports (5Gbps), one USB 3.2 Gen 2 Type-A port (10Gbps), and one USB-C 3.2 Gen 2 port (5V/1.5A). This provides connectivity for peripherals like external drives, keyboards, mice, and smartphones.
Does the SD5600T include Ethernet connectivity?
Yes, the docking station features a Gigabit Ethernet (RJ-45) port that provides wired network connectivity at speeds up to 1000Mbps. This offers more stable and secure networking compared to Wi-Fi, which is particularly valuable for video conferencing, large file transfers, and VPN connections.
What memory cards does the built-in reader support?
The integrated memory card reader supports both SD and microSD cards, allowing direct access to media from cameras, drones, and mobile devices without requiring separate adapters. This is particularly useful for photographers, videographers, and content creators transferring files.
What screen size is listed?
Kensington SD5600T Docking Station - for Monitor, Notebook - Charging Capability - Memory Card Reader - SD, microSD - 170 W - USB Type (K34009NA) is best judged through its screen, connectivity, and installation specifications, which help buyers confirm visual fit and deployment suitability.
What resolution or display format is specified?
3840 x 2160,1920 x 1080,2560 x 1440.
