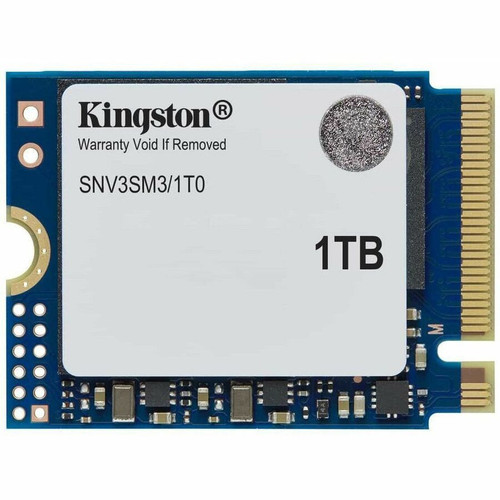

Kingston SNV3SM3/1T0 NV3 1TB SSD - M. 2 2230 Internal NVMe PCIe 4.0 x 4 - 5.86 GB/s Read - 4.88 GB/s Write
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Kingston NV3 leverages PCIe 4.0 x4 lanes to achieve sequential read speeds up to 5.86 GB/s and write speeds up to 4.88 GB/s. This performance level significantly reduces load times for applications, games, and large files compared to SATA-based SSDs or older PCIe generations.
Its M.2 2230 physical profile measures 22 mm wide by 30 mm deep, with a height of 2.30 mm. The drive weighs approximately 2.80 grams, contributing minimal mass to host devices. The internal design ensures compatibility with standard M.2 slots that support the 2230 length specification.
Relevant factors for this section include Storage Capacity, Endurance (TBW), Maximum Sequential Read, Maximum Sequential Write. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This SSD combines high-capacity storage with cutting-edge interface technology to meet the needs of performance-focused users. The PCIe 4.0 x4 NVMe interface provides a substantial bandwidth advantage over previous generations, enabling faster system responsiveness and data access.
High-Speed Data Transfer
With read speeds reaching 5.86 GB/s, the drive accelerates boot times, application launches, and file transfers, enhancing overall computing efficiency.
- Reduces load times for games and software
- Improves multitasking with rapid data access
Compact and Lightweight
The M.2 2230 form factor is specifically designed for slim notebooks and small-form-factor PCs where space is at a premium.
- Ideal for ultraportable laptops and mini PCs
- Minimal weight addition to host devices
Robust Endurance
Rated for 320 TB total bytes written, the drive supports intensive write workloads over its lifespan, making it suitable for both consumer and light professional use.
- Extended durability for frequent data updates
- Reliable operation in gaming and content creation
Deployment / Use Cases
The Kingston NV3 SSD is versatile enough to serve as a primary boot drive or secondary storage in a range of computing environments. Its performance profile makes it particularly effective for scenarios where speed and capacity are critical.
In gaming consoles and high-performance desktops, the drive reduces in-game loading screens and improves texture streaming. For notebook users, it offers a storage upgrade that maintains portability while delivering desktop-class speed. Content creators benefit from faster file transfers and project load times when working with large media files.
Notebook and Ultrabook Upgrades
Replace slower HDDs or smaller SSDs in laptops to gain both capacity and performance without sacrificing battery life or adding bulk.
Gaming System Storage
Install games and applications on this drive to minimize load times and improve overall system responsiveness during gameplay.
Physical Profile
The drive's M.2 2230 dimensions (22 mm x 30 mm) and low profile (2.30 mm) allow installation in the tightest chassis designs. Its lightweight construction ensures it doesn't add significant mass to portable devices. The internal drive type requires no external cabling, simplifying installation and improving airflow within the system.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 90.55 mil (2.30 mm), 0.87" (22 mm), 1.18" (30 mm), 0.10 oz (2.80 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 0.87" (22 mm)
- Depth
- 1.18" (30 mm)
- Height
- 90.55 mil (2.30 mm)
- Weight
- 0.10 oz (2.80 g)
Highlights
- 1 TB storage capacity for ample document, photo, and video storage
- PCI Express 4.0 x4 NVMe interface for high-speed data transfer
- Sequential read speeds up to 5.86 GB/s
- Sequential write speeds up to 4.88 GB/s
- M.2 2230 form factor for compact system compatibility
- 320 TB total bytes written endurance rating
- Mean time between failures of 228.2 years
- Compatible with notebooks, desktop PCs, and gaming consoles
- Internal drive design with no external power or data cables required
- Lightweight at approximately 2.80 grams
Specifications
| Specifications | |
|---|---|
| Manufacturer | Kingston Technology Company |
| Manufacturer Part Number | SNV3SM3/1T0 |
| Brand Name | Kingston |
| Product Series | NV3 |
| Product Name | NV3 PCIe 4.0 NVMe SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 1 TB |
| Drive Performance | |
| Endurance (TBW) | 320 TB |
| Maximum Sequential Read | 5.86 GB/s |
| Maximum Sequential Write | 4.88 GB/s |
| Mean Time Between Failures (MTBF) | 228.2 Year |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express 4.0 x4 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | M.2 2230 |
| Height | 90.55 mil (2.30 mm) |
| Width | 0.87" (22 mm) |
| Depth | 1.18" (30 mm) |
| Weight (Approximate) | 0.10 oz (2.80 g) |
| Miscellaneous | |
| Device Supported | Notebook,Desktop PC,Gaming Console |
User Manual
FAQ
What is the storage capacity of this Kingston NV3 SSD?
This Kingston NV3 SSD offers 1 TB of storage capacity. This provides ample space for operating systems, applications, games, documents, photos, and videos, making it suitable as a primary drive or high-capacity secondary storage in modern computing systems.
What interface does this SSD use, and what are its performance specifications?
The drive uses a PCI Express 4.0 x4 NVMe interface. It delivers maximum sequential read speeds of 5.86 GB/s and write speeds of 4.88 GB/s. These speeds are significantly higher than SATA SSDs and older PCIe generations, resulting in faster boot times, application loading, and file transfers.
What is the form factor of this Kingston NV3 SSD?
This SSD uses the M.2 2230 form factor, which measures 22 mm wide by 30 mm deep with a height of 2.30 mm. This compact size makes it compatible with many slim notebooks, ultrabooks, small-form-factor PCs, and some gaming consoles that support the 2230 length specification.
What is the endurance rating of this SSD, and what does it mean?
The drive has an endurance rating of 320 TB total bytes written (TBW). This indicates the total amount of data that can be written to the drive over its lifespan under typical operating conditions. A higher TBW rating suggests greater durability for write-intensive tasks, supporting reliable long-term use.
Which devices are compatible with this Kingston NV3 SSD?
This SSD is compatible with notebooks, desktop PCs, and gaming consoles that have an M.2 slot supporting the 2230 form factor and PCIe NVMe interface. It is designed as an internal drive, so it requires a compatible M.2 connector on the motherboard or expansion card for installation.
How does the PCIe 4.0 x4 interface benefit performance compared to older standards?
PCIe 4.0 x4 doubles the bandwidth per lane compared to PCIe 3.0, allowing for higher data transfer rates. This interface enables the SSD to achieve its rated speeds of up to 5.86 GB/s read and 4.88 GB/s write, reducing latency and improving overall system responsiveness in demanding applications like gaming and content creation.
