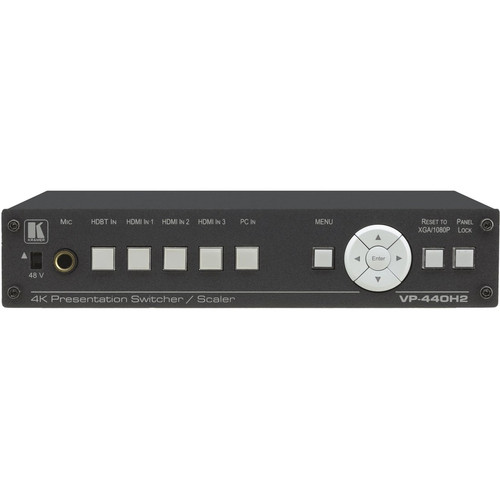

Kramer VP-440H2 Audio/Video Switchbox - 5 x 2 4K@60Hz Matrix with HDMI - VGA - HDBaseT/PoE - Audio DSP & Ethernet Control
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The VP-440H2 handles 4K video at 60Hz with 4:4:4 chroma subsampling, ensuring full-color fidelity for detailed graphics and video content. It supports five input devices, including three HDMI ports, one VGA port, and HDBaseT/PoE connections, with two independent display outputs.
Audio capabilities include embedding/de-embedding for synchronized AV streams, plus a microphone input and digital signal processing (DSP) for clear audio management. Control is versatile, offering Ethernet access via built-in web pages, on-screen display menus, and RS-232 serial commands for integration with automation systems.
This section brings together practical product details such as Connectivity Technology, Number of Input Devices Supported, Device Supported, Graphics Modes, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This switchbox excels in environments demanding high-resolution video switching with integrated audio control. Its combination of multiple input types, advanced audio features, and flexible management options provides a future-proof solution for dynamic AV setups.
High-Resolution Support
Delivers 4K video at 60Hz with 4:4:4 color, ideal for detailed presentations, digital signage, and video conferencing.
- Full 4K clarity
- 60Hz refresh rate
- 4:4:4 chroma for accurate colors
Integrated Audio Management
Includes audio embedding/de-embedding, DSP, and a microphone input for comprehensive audio-video synchronization.
- Sync audio with video streams
- DSP for audio optimization
- Microphone input for conferencing
Flexible Control Options
Offers Ethernet-based web interface, on-screen display, and RS-232 for seamless integration into existing control systems.
- Web-based management
- On-screen menus for local control
- RS-232 for automation
Deployment / Use Cases
The VP-440H2 is engineered for professional settings where reliable audio/video switching enhances operational efficiency. Its auto-input switching reduces manual intervention, while its compact form factor fits neatly into racks or AV cabinets.
In conference rooms, it routes signals from laptops, document cameras, and video conferencing systems to displays and projectors. For digital signage networks, it manages content from multiple sources across two screens, with Ethernet control enabling remote updates. In education, it supports classroom technology by switching between instructor devices and student displays, with audio DSP ensuring clear sound.
Corporate Conference Rooms
Switch between presentation laptops, video conferencing feeds, and auxiliary inputs for seamless meetings.
Digital Signage Control
Manage content from multiple media players across two displays, with remote control via Ethernet.
Physical Profile
The switchbox measures 8.45" wide, 6.42" deep, and 1.72" high, with a weight of approximately 1.50 kg. Its slim, rack-mountable design conserves space in AV installations, while the sturdy construction ensures durability in continuous-use environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.72" (43.69 mm), 8.45" (214.63 mm), 6.42" (163.07 mm), 1.50 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 8.45" (214.63 mm)
- Depth
- 6.42" (163.07 mm)
- Height
- 1.72" (43.69 mm)
- Weight
- 1.50 kg
What's in the Box
The package includes the VP-440H2 audio/video switchbox and a power supply, providing everything needed for basic setup and operation.
Highlights
- 5x2 matrix switch for routing audio/video signals to two displays
- Supports 4K resolution at 60Hz with 4:4:4 chroma for high-quality video
- Inputs include 3 HDMI, 1 VGA, and HDBaseT/PoE connections
- Audio embedding/de-embedding with DSP and microphone input
- Auto-input switching for seamless source selection
- Control via Ethernet with built-in web pages, on-screen display, and RS-232
- Compact dimensions: 8.45" W x 6.42" D x 1.72" H
- Includes power supply for immediate deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | VP-440H2 |
| Brand Name | Kramer |
| Product Model | VP-440H2 |
| Product Name | VP-440H2 Audio/Video Switchbox |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 5 |
| Device Supported | Display |
| Number of Displays Supported | 2 |
| Video | |
| Graphics Modes | 4K |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 3 |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Number of VGA Inputs | 1 |
| Physical Characteristics | |
| Height | 1.72" (43.69 mm) |
| Width | 8.45" (214.63 mm) |
| Depth | 6.42" (163.07 mm) |
| Weight (Approximate) | 1.50 kg |
| Miscellaneous | |
| Package Contents | VP-440H2 Audio/Video Switchbox Power Supply |
FAQ
How many displays can this switchbox connect to?
This switchbox supports two displays simultaneously. It functions as a 5x2 matrix, allowing you to route audio and video from up to five input devices to two independent displays, ideal for multi-screen setups in conference rooms or digital signage.
What types of inputs are available on the VP-440H2?
Inputs include three HDMI ports, one VGA port, and HDBaseT/PoE connections. This mix accommodates modern and legacy devices, providing flexibility for various source types in commercial AV environments.
Does it include audio processing features?
Yes, the VP-440H2 features audio embedding/de-embedding, digital signal processing (DSP), and a microphone input. These capabilities allow for synchronized audio-video streams, enhanced sound quality, and integration of microphone audio for conferencing or presentations.
How can I control the switchbox?
Control options include Ethernet access via built-in web pages for remote management, an on-screen display for local adjustments, and RS-232 serial commands for integration with automation systems. This flexibility supports both standalone and networked control scenarios.
What is included in the package?
The package contains the VP-440H2 audio/video switchbox and a power supply. These components provide everything necessary for basic installation and operation, ensuring you can deploy the unit quickly in your AV setup.
