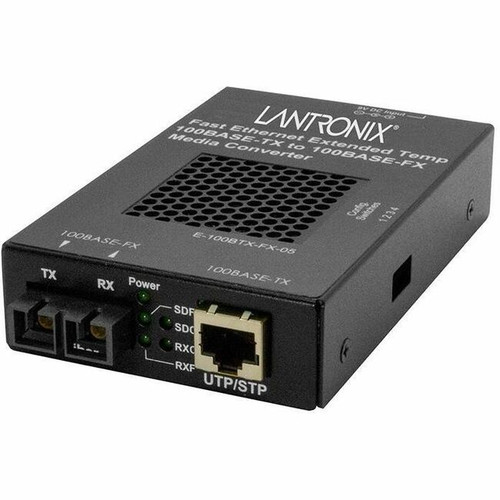

Lantronix E-100BTX-FX-05(SCHT)-BR Transceiver/Media Converter - 1 x RJ-45 to 1 x SC Port - Fast Ethernet - 1300 nm Multimode Fiber - 2 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter supports both optical fiber and twisted pair media, specifically multimode fiber with a 1300 nm wavelength. It utilizes Fast Ethernet technology, compliant with 100Base-TX for copper and 100Base-FX for fiber, ensuring interoperability with standard network equipment.
The device achieves a maximum supported distance of 2 kilometers over fiber, significantly extending network reach compared to traditional copper limits. It is powered by an AC/DC source, providing flexibility in deployment scenarios.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter offers a practical solution for integrating fiber optic infrastructure into existing copper-based networks, enhancing durability and signal integrity over extended distances.
Extended Distance Coverage
Supports fiber optic connections up to 2 km, overcoming the distance limitations of standard twisted pair cabling and reducing signal degradation in long-run installations.
- 2 km maximum distance
- Minimal signal loss over fiber
- Ideal for campus or industrial layouts
Versatile Mounting Options
Designed with multiple form factors including standalone, wall mountable, DIN rail mountable, and shelf mount, allowing flexible placement in network closets, racks, or field environments.
- Standalone for desktop use
- Wall and DIN rail mounting
- Compact footprint
Deployment / Use Cases
The E-100BTX-FX-05(SCHT)-BR is suited for scenarios where network segments need to span beyond the effective range of copper Ethernet, such as connecting buildings across a campus or linking equipment in industrial settings.
Common applications include extending LANs between floors or facilities, integrating fiber backbones into copper-based networks, and providing noise immunity in electrically noisy environments like manufacturing plants. Its compliance with TAA and environmental standards makes it appropriate for government and regulated industry deployments.
Building-to-Building Connectivity
Use this converter to link network switches or routers in separate buildings using multimode fiber, ensuring reliable data transmission over distances up to 2 km without repeaters.
Industrial Network Integration
Deploy in manufacturing or utility settings to connect copper-based devices to fiber optic backbones, benefiting from fiber's resistance to electromagnetic interference and harsh conditions.
Physical Profile
The converter has a compact design measuring 1" in height, 3" in width, and 4.70" in depth, with an approximate weight of 2 lb. Its small footprint and multiple mounting options facilitate installation in space-constrained areas such as network cabinets, control panels, or wall surfaces.
- Width
- 3" (76.20 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1300 nm
What's in the Box
The package includes the E-100BTX-FX-05(SCHT) transceiver/media converter and a power supply configured for Brazil, providing all necessary components for immediate deployment.
Highlights
- Converts 100Base-TX twisted pair to 100Base-FX multimode fiber for extended network reach
- Supports distances up to 2 km over 1300 nm wavelength fiber optic cable
- Features one RJ-45 port and one SC port for flexible media connectivity
- Operates at Fast Ethernet speeds with a maximum data rate of 100 Mbit/s
- Offers multiple mounting options: standalone, wall, DIN rail, and shelf mount
- Powered by AC/DC source for versatile deployment
- Compliant with TAA, REACH, RoHS, and WEEE environmental standards
- Includes a lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | E-100BTX-FX-05(SCHT)-BR |
| Brand Name | Lantronix |
| Product Series | E-100BTX-HT |
| Product Model | E-100BTX-FX-05(SCHT) |
| Product Name | E-100BTX-FX-05(SCHT) Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-TX,100Base-FX |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Form Factor | Standalone,Wall Mountable,DIN Rail Mountable,Shelf Mount |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | E-100BTX-FX-05(SCHT) Transceiver/Media Converter Power Supply - Brazil |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of media does this converter support?
This converter supports both optical fiber and twisted pair media. It connects copper Ethernet via an RJ-45 port and multimode fiber optic cable via an SC port, enabling conversion between 100Base-TX and 100Base-FX network technologies.
What is the maximum distance supported over fiber?
The converter supports a maximum distance of 2 kilometers (approximately 1.24 miles) over multimode fiber optic cable. This extended range allows network segments to span longer distances than typical copper cabling, reducing the need for repeaters in campus or industrial setups.
What is the data transfer rate of this media converter?
It operates at Fast Ethernet speeds with a maximum data transfer rate of 100 Mbit/s. This aligns with 100Base-TX for copper and 100Base-FX for fiber, ensuring compatibility with standard network equipment and sufficient bandwidth for many business applications.
How is this converter powered?
The converter uses an AC/DC power source, providing flexibility in various deployment environments. The included power supply is configured for Brazil, and the device can be installed in locations with standard power outlets.
What mounting options are available?
It offers versatile mounting options including standalone placement on a flat surface, wall mounting, DIN rail mounting, and shelf mounting. This flexibility allows installation in network closets, industrial control panels, or other space-constrained areas.
What environmental and compliance standards does it meet?
The converter is environmentally friendly and complies with Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), and Waste Electrical and Electronic Equipment Directive (WEEE). It is also TAA compliant, making it suitable for government and regulated industry procurements.
