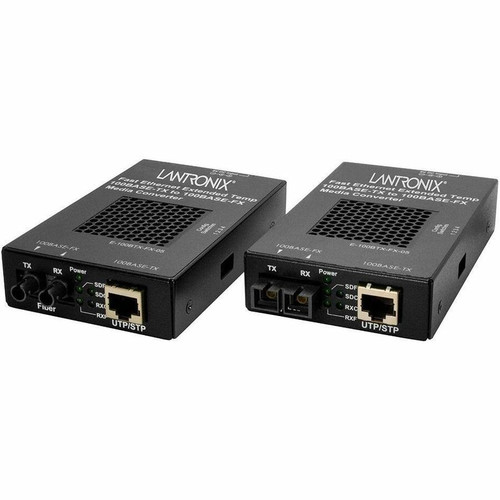

Lantronix E-100BTX-FX-05(SMHT)-JP Fast Ethernet Media Converter - 1 RJ-45 to 1 SC Single-Mode Fiber 1310 nm - 20 km Distance
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter implements 100Base-TX technology on the copper side and 100Base-FX on the fiber side, maintaining full Fast Ethernet compatibility at 100 Mbit/s throughput. The conversion process preserves data integrity while enabling network expansion across fiber-optic backbones.
The unit's physical design emphasizes deployment flexibility with support for standalone placement, wall mounting, DIN rail attachment, and shelf mounting. This adaptability makes it suitable for equipment racks, control panels, or remote network cabinets where space optimization is critical.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This media converter delivers practical benefits for network administrators seeking to extend copper-based networks over fiber infrastructure without compromising performance or reliability.
Extended Network Reach
Supports transmission distances up to 20 kilometers, far exceeding the 100-meter limitation of standard copper Ethernet cabling. This enables connectivity between buildings, across campuses, or in industrial settings where long-distance runs are necessary.
- 20 km maximum distance
- Minimal signal loss
- Ideal for campus deployments
Versatile Deployment Options
Multiple mounting configurations including wall, DIN rail, and shelf mounting provide installation flexibility for various environments from data centers to factory floors.
- Standalone operation
- Wall mountable
- DIN rail compatible
- Shelf mount ready
Environmental Compliance
Meets REACH, RoHS, and WEEE directives while carrying TAA compliance, ensuring the product adheres to international environmental and trade regulations.
- REACH compliant
- RoHS compliant
- WEEE compliant
- TAA compliant
Deployment / Use Cases
This media converter serves as a practical solution for network expansion scenarios where fiber optic infrastructure provides advantages over traditional copper cabling.
In industrial automation environments, the converter bridges control systems across manufacturing floors where electromagnetic interference affects copper cables. The fiber connection ensures reliable data transmission in electrically noisy conditions.
For campus network extensions, the 20-kilometer reach connects administrative buildings to remote facilities while maintaining Fast Ethernet performance. Educational institutions and corporate campuses benefit from this extended connectivity without requiring network upgrades.
Industrial Network Integration
Connects PLCs, HMIs, and industrial controllers across factory floors using fiber to avoid EMI/RFI interference common in manufacturing environments.
Building-to-Building Connectivity
Extends network segments between separate structures while providing electrical isolation and lightning protection through fiber optic media.
Physical Profile
The compact dimensions of 3" × 4.70" × 1" (76.20 mm × 119.38 mm × 25.40 mm) and 2-pound weight make this media converter suitable for space-constrained installations. The rugged construction supports multiple mounting orientations, allowing integration into existing equipment racks or control panels without requiring dedicated shelf space.
- Width
- 3" (76.20 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1310 nm
What's in the Box
The package includes all necessary components for immediate deployment of the media converter in your network environment.
Highlights
- Converts Fast Ethernet (100 Mbps) from RJ-45 copper to SC single-mode fiber
- Supports transmission distances up to 20 kilometers (12.43 miles)
- Operates at 1310 nm wavelength optimized for single-mode fiber
- Versatile mounting options: standalone, wall, DIN rail, or shelf mount
- Compact dimensions: 3" × 4.70" × 1" (76.20 mm × 119.38 mm × 25.40 mm)
- AC/DC power input for flexible deployment
- Includes Japan-specific power supply in package
- TAA compliant for government and educational procurement
- REACH, RoHS, and WEEE environmental compliance
- Lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | E-100BTX-FX-05(SMHT)-JP |
| Brand Name | Lantronix |
| Product Series | E-100BTX-HT |
| Product Model | E-100BTX-FX-05(SMHT) |
| Product Name | E-100BTX-FX-05(SMHT) Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-TX,100Base-FX |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Form Factor | Standalone,Wall Mountable,DIN Rail Mountable,Shelf Mount |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | E-100BTX-FX-05(SMHT) Transceiver/Media Converter Power Supply - Japan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of connections does this media converter support?
This converter features one RJ-45 port for copper Ethernet connections and one SC port for single-mode fiber optic connections. It converts signals between 100Base-TX (copper) and 100Base-FX (fiber) standards, enabling seamless integration of fiber segments into existing copper networks.
What is the maximum distance supported by this fiber converter?
The Lantronix E-100BTX-FX-05(SMHT)-JP supports transmission distances up to 20 kilometers (approximately 12.43 miles) over single-mode fiber. This extended reach makes it suitable for connecting network segments across campuses, between buildings, or in large industrial facilities where copper cabling distance limitations would otherwise require additional networking equipment.
What fiber specifications does this converter require?
This media converter is designed for single-mode fiber optic cables with SC connectors. It operates at a 1310 nm wavelength, which is standard for long-distance single-mode fiber transmission. The converter supports the 100Base-FX standard for Fast Ethernet over fiber, ensuring compatibility with existing fiber infrastructure.
How can this media converter be mounted or installed?
The converter offers multiple mounting options for flexible deployment. It can operate as a standalone unit placed on any flat surface, or it can be wall-mounted, attached to a DIN rail, or secured on a shelf. The compact dimensions of 3" × 4.70" × 1" allow installation in space-constrained locations like equipment racks, control panels, or network cabinets.
What power requirements does this converter have?
This media converter uses an AC/DC power source, providing flexibility in different electrical environments. The package includes a Japan-specific power supply, ensuring proper voltage compatibility for deployments in that region. The dual power source capability makes the unit adaptable to various installation scenarios.
What warranty and compliance certifications come with this product?
The converter comes with a lifetime limited warranty from Lantronix, providing long-term reliability assurance. It is TAA compliant for government and educational procurement, and meets multiple environmental standards including REACH, RoHS, and WEEE directives. These certifications ensure the product adheres to international trade and environmental regulations.
