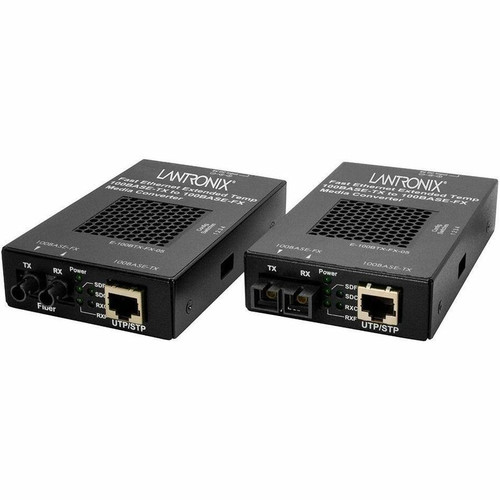

Lantronix E-100BTX-FX-05(SMHT)-LA E-100BTX-FX-05 - SMHT-LA Transceiver/Media Converter - Fast Ethernet - 1 RJ-45 + 1 SC Port - Single-mode 1310 nm
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter features one RJ-45 port for copper connectivity and one SC port for fiber optic connections. It operates on Fast Ethernet technology with a maximum data transfer rate of 100 Mbit/s, supporting both 100Base-TX over twisted pair and 100Base-FX over fiber.
The fiber interface uses single-mode fiber with a 1310 nm wavelength, capable of supporting distances up to 20 kilometers. This makes it suitable for connecting network segments across buildings or campuses where copper cabling would be impractical or insufficient.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This converter extends network reach significantly beyond copper limitations while maintaining Fast Ethernet performance. The combination of copper and fiber interfaces provides flexibility in network design and infrastructure integration.
Distance Extension
Supports fiber connections up to 20 kilometers, far exceeding the distance limitations of standard copper Ethernet cabling.
- 20 km maximum distance
- Single-mode fiber support
- 1310 nm wavelength
Versatile Deployment
Multiple mounting options including standalone, wall mountable, DIN rail mountable, and shelf mount configurations adapt to various installation environments.
- Standalone operation
- Wall mountable
- DIN rail compatible
Compliance & Warranty
Meets environmental standards including REACH, RoHS, and WEEE compliance, backed by a lifetime limited warranty for long-term reliability.
- TAA compliant
- Lifetime warranty
- Environmental compliance
Deployment / Use Cases
This media converter is ideal for extending network connections between buildings on a campus, where fiber optic cabling is necessary to overcome distance limitations. It effectively bridges the gap between copper-based office networks and fiber backbone infrastructure.
In industrial environments, the DIN rail mounting capability allows integration into control panels and equipment racks. The converter can connect office networks to remote manufacturing equipment or surveillance systems located at significant distances from the main network hub.
Campus Network Extension
Connect buildings across a campus using fiber optic cabling while maintaining compatibility with existing copper network equipment.
Industrial Network Integration
Deploy in manufacturing facilities or industrial parks where equipment may be distributed across large areas requiring fiber connectivity.
Physical Profile
The compact design measures 1" (25.40 mm) in height, 3" (76.20 mm) in width, and 4.70" (119.38 mm) in depth, with an approximate weight of 2 lb (907.18 g). This small footprint allows installation in space-constrained environments while providing multiple mounting options for flexible deployment.
- Width
- 3" (76.20 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1310 nm
What's in the Box
The package includes everything needed for immediate deployment of the media converter in Latin American markets.
Highlights
- Converts between copper Ethernet and single-mode fiber optic connections
- Supports distances up to 20 kilometers over fiber
- Fast Ethernet performance with 100 Mbit/s data transfer rate
- One RJ-45 port and one SC port for flexible connectivity
- 1310 nm wavelength for single-mode fiber compatibility
- AC/DC power source with versatile mounting options
- Standalone, wall mountable, DIN rail mountable, and shelf mount configurations
- TAA compliant with lifetime limited warranty
- REACH, RoHS, and WEEE environmental compliance
- Compact design for space-efficient deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | E-100BTX-FX-05(SMHT)-LA |
| Brand Name | Lantronix |
| Product Series | E-100BTX-HT |
| Product Model | E-100BTX-FX-05(SMHT) |
| Product Name | E-100BTX-FX-05(SMHT) Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-TX,100Base-FX |
| Power Description | |
| Power Source | AC/DC |
| Physical Characteristics | |
| Form Factor | Standalone,Wall Mountable,DIN Rail Mountable,Shelf Mount |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | E-100BTX-FX-05(SMHT) Transceiver/Media Converter Power Supply - Latin America |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of connections does this media converter support?
This converter supports one RJ-45 port for copper twisted pair Ethernet connections and one SC port for single-mode fiber optic connections. It converts signals between these two media types, allowing integration of fiber infrastructure into copper-based networks.
What is the maximum distance supported over fiber?
The converter supports fiber connections up to 20 kilometers (approximately 12.43 miles) when using single-mode fiber optic cable. This significant distance capability makes it suitable for connecting network segments across buildings or campuses.
What Ethernet standards does this converter support?
It supports Fast Ethernet technology with both 100Base-TX over twisted pair copper and 100Base-FX over fiber optic cable. The maximum data transfer rate is 100 Mbit/s, providing reliable performance for network extension applications.
How is this unit powered and mounted?
The converter uses an AC/DC power source and offers multiple mounting options including standalone placement, wall mounting, DIN rail mounting, and shelf mounting. This flexibility allows deployment in various environments from office settings to industrial control panels.
What type of fiber optic cable is compatible?
This converter is compatible with single-mode fiber optic cable using a 1310 nm wavelength. The SC connector type provides a reliable fiber interface for network extension applications requiring longer distance capabilities.
What compliance and warranty does this product include?
The converter is TAA compliant and meets environmental standards including REACH, RoHS, and WEEE. It comes with a lifetime limited warranty, providing long-term reliability assurance for network infrastructure deployments.
