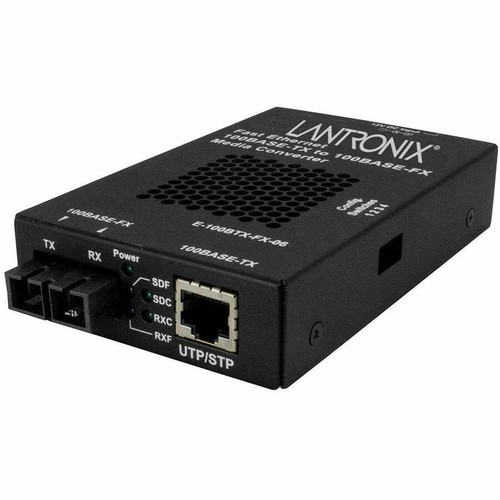

Lantronix E-100BTX-FX-06(SC)-JP Transceiver/Media Converter - RJ-45 to SC Multi-mode 1300 nm Fiber - Fast Ethernet 100 Mbps
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates at the 1300 nm wavelength on multi-mode fiber, supporting 100Base-FX and 100Base-TX network technologies for consistent 100 Mbps Fast Ethernet performance. The conversion process maintains signal integrity across the maximum supported distance of 2 kilometers (1.24 miles), effectively extending network reach while preserving data transmission quality.
Power efficiency is a key design consideration, with the converter consuming only 1.75 watts from its AC/DC power source. The dual-port configuration includes one RJ-45 port for copper connectivity and one SC port for fiber termination, providing straightforward media conversion without complex configuration requirements.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This Lantronix media converter delivers practical advantages for network infrastructure projects requiring copper-to-fiber conversion. The device enables cost-effective network extension by leveraging existing copper infrastructure while adding fiber segments for distance coverage.
Distance Extension Capability
Extend network reach up to 2 kilometers beyond standard copper limitations while maintaining full Fast Ethernet performance at 100 Mbps throughput.
- Overcomes 100-meter copper distance constraints
- Maintains signal integrity across extended fiber runs
- Enables connectivity between geographically separated network segments
Deployment Flexibility
Multiple mounting options accommodate diverse installation requirements across commercial, industrial, and data center environments.
- Standalone operation for temporary deployments
- Rack-mountable for structured installations
- Wall and DIN rail mounting for space-constrained locations
Compliance & Reliability
Manufactured with environmental compliance and backed by lifetime warranty protection for long-term deployment confidence.
- TAA compliant for government procurement
- REACH, RoHS, and WEEE environmental compliance
- Lifetime limited warranty for sustained operation
Deployment / Use Cases
The E-100BTX-FX-06(SC)-JP media converter addresses specific network extension scenarios where copper infrastructure meets distance limitations. Typical deployments include connecting network equipment across building separations, extending connectivity to remote network closets, or integrating fiber backbones into existing copper-based networks.
In industrial environments, the converter's DIN rail mounting capability supports integration into control panels and machinery enclosures. For office deployments, the wall-mountable design enables discreet installation in wiring closets or above ceiling tiles. Data center applications benefit from the rack-mountable form factor for structured fiber distribution between equipment racks.
Building-to-Building Connectivity
Connect network segments between separate buildings or floors using fiber optic cabling to overcome copper distance limitations while maintaining Fast Ethernet performance.
Industrial Network Integration
Deploy in manufacturing or processing environments where DIN rail mounting provides secure installation in control panels alongside other industrial equipment.
Physical Profile
The compact physical design measures 1 inch in height, 3 inches in width, and 4.70 inches in depth, with an approximate weight of 2 pounds. This streamlined form factor supports installation in space-constrained locations while providing adequate surface area for heat dissipation during continuous operation. The versatile mounting system includes provisions for standalone placement, rack mounting with appropriate hardware, wall mounting with screw attachments, DIN rail clipping, and shelf mounting for temporary deployments.
- Width
- 3" (76.20 mm)
- Depth
- 4.70" (119.38 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1300 nm
What's in the Box
The package includes all necessary components for immediate deployment of the media converter in your network environment.
Highlights
- Converts RJ-45 copper to SC multi-mode fiber for network extension
- Supports 100 Mbps Fast Ethernet over 2 km distance
- Operates at 1300 nm wavelength on multi-mode fiber optic cable
- Dual-port configuration with 1 RJ-45 and 1 SC port
- Versatile mounting: standalone, rack, wall, DIN rail, or shelf
- Low power consumption at 1.75 watts
- TAA compliant for government procurement eligibility
- Lifetime limited warranty for long-term reliability
- Compact design: 1" H × 3" W × 4.70" D, 2 lb weight
- Environmental compliance: REACH, RoHS, and WEEE
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | E-100BTX-FX-06(SC)-JP |
| Brand Name | Lantronix |
| Product Series | E-100BTX |
| Product Model | E-100BTX-FX-06 |
| Product Name | E-100BTX-FX-06 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX,100Base-TX |
| Power Description | |
| Power Source | AC/DC |
| Power Consumption | 1.75 W |
| Physical Characteristics | |
| Form Factor | Standalone,Rack-mountable,Wall Mountable,DIN Rail Mountable,Shelf Mount |
| Height | 1" (25.40 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | E-100BTX-FX-06 Transceiver/Media Converter Power Supply - Japan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What type of conversion does this Lantronix media converter perform?
This converter performs bidirectional conversion between standard RJ-45 copper Ethernet connections and SC multi-mode fiber optic connections. It translates electrical signals from twisted pair cabling to optical signals for fiber transmission, and vice versa, enabling seamless integration of fiber segments into copper-based networks while extending connectivity beyond typical copper distance limitations.
What is the maximum distance supported by this fiber media converter?
The converter supports fiber optic transmission up to 2 kilometers (approximately 1.24 miles) when using multi-mode fiber at 1300 nm wavelength. This distance capability significantly exceeds the 100-meter limitation of standard copper Ethernet cabling, making the device ideal for connecting network segments across buildings, between floors, or to remote equipment locations.
What network speeds does this converter support?
The converter supports Fast Ethernet technology at 100 Mbps data transfer rates. It is compatible with both 100Base-TX for copper connections and 100Base-FX for fiber connections, maintaining consistent 100 Mbps performance across the media conversion process without speed degradation when operating within specified distance parameters.
What mounting options are available for this media converter?
The converter offers five mounting configurations: standalone placement on any flat surface, rack mounting for structured installations, wall mounting with screw attachments, DIN rail mounting for industrial control panels, and shelf mounting for temporary deployments. This versatility accommodates diverse installation requirements across data center, office, and industrial environments.
What type of fiber connector does this converter use?
The converter features one SC connector port for fiber optic termination. SC connectors provide reliable push-pull coupling with positive locking, making them suitable for both patch panel and equipment connections in network environments requiring multi-mode fiber at 1300 nm wavelength.
What compliance certifications does this product have?
The converter is TAA compliant for government procurement eligibility and meets multiple environmental standards including REACH, RoHS, and WEEE directives. These certifications ensure the product adheres to hazardous substance restrictions, recycling requirements, and trade agreement provisions for deployment in regulated environments.
