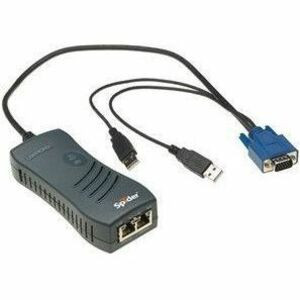

Lantronix SLS200USBX0-02 Spider Integrated KVM-over-IP Switch - 2x RJ-45 - 2x USB - 1x VGA - 1600 x 1200 - 0U Rackmount
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This KVM-over-IP switch operates on wired connectivity technology, ensuring reliable data transmission for remote equipment management. It supports a maximum video resolution of 1600 x 1200, providing clear display output for server consoles and BIOS interfaces.
Power is supplied via a 5 VDC input voltage range, making it compatible with standard low-voltage power sources. The device is environmentally compliant with Restriction of Hazardous Substances (RoHS) standards and backed by a 2-year limited warranty for added reliability.
This section brings together practical product details such as Connectivity Technology, Maximum Video Resolution, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Lantronix Spider KVM-over-IP switch offers enterprise-class device management through the Percepxion Cloud Management Platform, providing centralized control and monitoring. Virtual Media support enables remote mounting of ISO images and USB devices, enhancing administrative flexibility.
Remote BIOS-Level Control
Gain secure, non-blocked access to server BIOS and console levels over IP networks, enabling full remote management without physical presence.
- Eliminates need for on-site visits
- Supports critical troubleshooting
Cost-Effective Scalability
The add-as-you-grow design allows organizations to expand remote management capabilities incrementally, optimizing budget allocation.
- Low cost-per-remote-user
- Flexible deployment options
Deployment / Use Cases
This KVM switch is ideal for environments where physical access to equipment is limited or costly, such as secure facilities, edge computing locations, or distributed IT infrastructures. The CAT5-based solution offers virtually no cable length restrictions, supporting flexible deployment across large facilities or between buildings.
The browser-based interface eliminates the need for dedicated client software, allowing access from any standard web browser on various operating systems. This simplifies deployment and reduces maintenance overhead for IT teams.
Data Center Remote Management
Deploy in server racks to provide remote KVM access for system administrators managing multiple data centers or colocation facilities.
- Reduces travel costs
- Enables 24/7 monitoring
Branch Office IT Support
Install at remote branch locations to allow centralized IT teams to troubleshoot and maintain servers without dispatching technicians.
- Minimizes downtime
- Streamlines support workflows
Physical Profile
The Lantronix SLS200USBX0-02 features a compact, rack-mountable design with a 0U height profile that doesn't consume vertical rack space. Its dimensions of 5.20 inches in height, 2.28 inches in width, and 1.22 inches in depth (132 x 58 x 31 mm) make it suitable for dense server environments. The lightweight construction at approximately 6.53 ounces (185 grams) facilitates easy installation and integration into existing rack infrastructure.
- Width
- 2.28" (58 mm)
- Depth
- 1.22" (31 mm)
- Height
- 0U
- Weight
- 6.53 oz (185 g)
Highlights
- Secure remote BIOS-level control of servers over IP networks
- Maximum video resolution of 1600 x 1200 for clear console display
- Two RJ-45 network ports and two USB ports for comprehensive connectivity
- Browser-based access with no client software required
- 0U rackmount form factor conserves valuable rack space
- Virtual Media support for remote mounting of ISO and USB devices
- CAT5-based solution with virtually no cable length restrictions
- Enterprise-class management via Percepxion Cloud Management Platform
- Cost-effective add-as-you-grow scalability
- 2-year limited warranty for reliable operation
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SLS200USBX0-02 |
| Brand Name | Lantronix |
| Product Line | Spider |
| Product Name | Integrated KVM-over-IP Solution for Remote Equipment |
| Product Type | KVM Switchbox |
| Technical Information | |
| Connectivity Technology | Wired |
| Video | |
| Maximum Video Resolution | 1600 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage Range | 5 VDC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 0U |
| Height | 5.20" (132 mm) |
| Width | 2.28" (58 mm) |
| Depth | 1.22" (31 mm) |
| Weight (Approximate) | 6.53 oz (185 g) |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
User Manual
FAQ
What is the maximum video resolution supported by this KVM-over-IP switch?
The Lantronix SLS200USBX0-02 supports a maximum video resolution of 1600 x 1200. This resolution provides clear display output for server console management, BIOS configuration, and remote troubleshooting sessions, ensuring administrators can view detailed interface elements during remote operations.
How many network ports does this KVM switch have?
This KVM-over-IP switch includes two RJ-45 network ports. These ports enable connectivity to IP networks for remote access and management, supporting the transmission of KVM data, virtual media, and administrative commands over standard Ethernet infrastructure.
What form factor and rack height does this device use?
The device features a rack-mountable form factor with a 0U rack height. This means it doesn't consume any vertical units in a standard server rack, allowing installation without affecting the allocation of rack space for other equipment, which is particularly valuable in dense data center environments.
Does this KVM switch require special client software for access?
No, this KVM switch provides browser-based access that doesn't require any client software installation. Administrators can connect using a standard web browser on various operating systems, simplifying deployment and reducing maintenance overhead while ensuring compatibility with existing IT workflows.
What power input does the Lantronix SLS200USBX0-02 require?
The device operates on a 5 VDC input voltage range. This low-voltage power requirement makes it compatible with common power sources in server racks and IT environments, supporting reliable operation while minimizing power consumption and heat generation.
What warranty coverage is provided with this KVM-over-IP switch?
Lantronix provides a 2-year limited warranty for the SLS200USBX0-02 KVM-over-IP switch. This warranty covers defects in materials and workmanship, offering peace of mind for enterprise deployments and ensuring support for critical remote management infrastructure.
