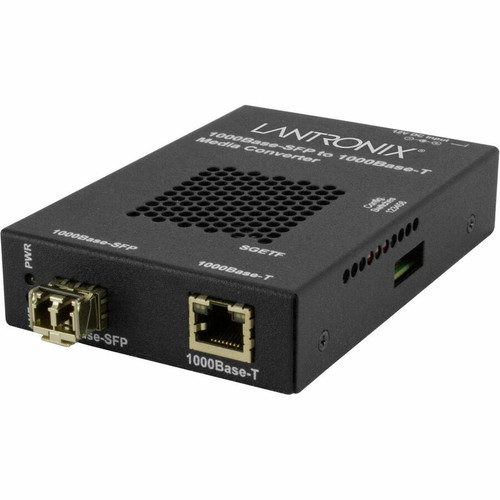

Lantronix SGETF1039-110-SA Gigabit Media Converter - 1x RJ-45 to 1x LC Multi-mode Fiber - 850 nm - 0. 55 km - AC/DC Power
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of LC Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Media Conversion
Converts between twisted pair copper (RJ-45) and optical fiber (LC) connections, supporting both media types in a single compact unit.
- Supports optical fiber for distance extension up to 0.55 km
- Maintains Gigabit Ethernet performance across conversion
Network Standards
Implements industry-standard 1000Base-SX for fiber and 1000Base-T for copper, ensuring interoperability with existing network equipment.
- 1000 Mbps data transfer rate
- Backward compatible with Fast Ethernet when auto-negotiated
Key Product Advantages
This media converter provides several distinct advantages for network deployment scenarios requiring mixed media connectivity.
Distance Extension
Extend network segments beyond copper limitations by converting to fiber optic media, supporting runs up to 0.55 km while maintaining signal integrity.
- Overcomes 100-meter copper Ethernet distance limitations
- Reduces signal degradation over longer runs
Installation Flexibility
Multiple mounting options including standalone, rack-mountable, wall mountable, DIN rail mountable, and shelf mount configurations provide deployment versatility.
- Compact 1"H × 3.25"W × 4.80"D footprint
- Lightweight 2 lb design for easy placement
Deployment / Use Cases
The SGETF1039-110-SA media converter is ideal for scenarios where network segments need to transition between copper and fiber media while maintaining Gigabit performance.
Common deployment scenarios include connecting fiber backbone infrastructure to copper-based edge devices, extending network reach beyond standard copper limitations, and integrating fiber segments into predominantly copper networks without requiring complete infrastructure overhaul.
Campus Network Extension
Connect buildings across campus environments where fiber runs between structures but copper connections serve individual rooms or floors.
Data Center Edge Connectivity
Bridge between fiber backbone and copper-connected servers or storage devices in mixed-media data center environments.
Physical Profile
The compact design measures 1" (25.40 mm) in height, 3.25" (82.55 mm) in width, and 4.80" (121.92 mm) in depth, with an approximate weight of 2 lb (907.18 g). This small footprint allows flexible placement in various environments including equipment racks, wall surfaces, DIN rails, or standard shelves. The unit's versatile form factor supports standalone operation or integrated mounting in multi-device installations.
- Width
- 3.25" (82.55 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 850 nm
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- Converts between RJ-45 copper and LC multi-mode fiber connections
- Supports Gigabit Ethernet at 1000 Mbps data transfer rate
- Extends network distance up to 0.55 km (0.34 mile) over fiber
- Operates at 850 nm wavelength for multi-mode fiber compatibility
- Versatile mounting options: standalone, rack, wall, DIN rail, or shelf
- Low power consumption at 5.40 W with AC/DC power source
- Supports 62.5/125 µm and 50/125 µm fiber core/cladding specifications
- Lifetime limited warranty for long-term reliability
- TAA compliant for government and educational deployments
- Environmentally friendly with RoHS, REACH, and WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SGETF1039-110-SA |
| Brand Name | Lantronix |
| Product Series | SGETF |
| Product Model | SGETF1039-110 |
| Product Name | SGETF1039-110 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.55 km (0.34 Mile) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm,50/125 µm |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-SX,1000Base-T |
| Power Description | |
| Power Source | AC/DC |
| Power Consumption | 5.40 W |
| Physical Characteristics | |
| Form Factor | Standalone,Rack-mountable,Wall Mountable,DIN Rail Mountable,Shelf Mount |
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | SGETF1039-110 Transceiver/Media Converter Power Supply - South Africa |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What does this media converter actually convert?
The Lantronix SGETF1039-110-SA converts network signals between standard RJ-45 copper Ethernet connections and LC multi-mode fiber optic connections. It enables seamless communication between devices using different media types while maintaining full Gigabit Ethernet performance at 1000 Mbps.
What is the maximum distance this converter supports over fiber?
This media converter supports fiber optic connections up to 0.55 kilometers (0.34 miles) when using multi-mode fiber. This significantly extends network reach beyond the 100-meter limitation of standard copper Ethernet cables, making it ideal for connecting buildings or extending network segments across larger facilities.
What type of fiber connectors does this converter use?
The converter features one LC port for fiber optic connections. LC connectors are small form-factor connectors commonly used in networking equipment for their reliable performance and compact size. The device supports multi-mode fiber with 850 nm wavelength and is compatible with both 62.5/125 µm and 50/125 µm fiber core/cladding specifications.
How is this media converter powered?
The converter uses an AC/DC power source with a power consumption of 5.40 watts. It comes with a dedicated power supply included in the package. The low power consumption makes it energy-efficient for continuous operation in various deployment scenarios.
What mounting options are available for this device?
The SGETF1039-110-SA offers multiple mounting configurations including standalone placement, rack-mountable installation, wall mounting, DIN rail mounting, and shelf mounting. This flexibility allows deployment in diverse environments from data center racks to industrial settings with DIN rail systems, adapting to specific space and installation requirements.
What network standards does this converter support?
The converter supports 1000Base-SX for fiber optic connections and 1000Base-T for copper Ethernet connections, both operating at Gigabit Ethernet speeds of 1000 Mbps. These industry-standard protocols ensure compatibility with existing network infrastructure and equipment from various manufacturers.
