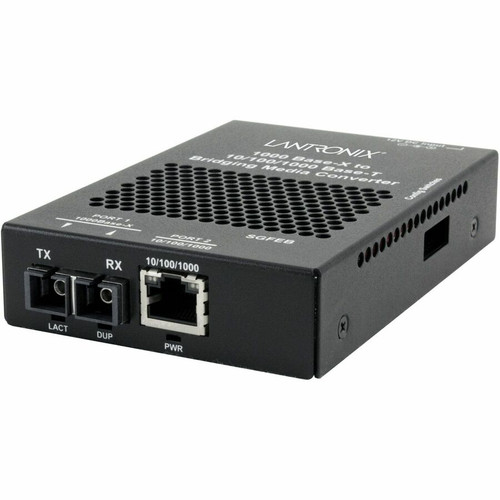

Lantronix SGFEB1014-130-UK Transceiver/Media Converter - Gigabit Single-mode Fiber to RJ45 - 1 SC Port - 1310 nm - 10 km
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates on Gigabit Ethernet standards, supporting both 1000Base-LX over fiber and 10/100/1000Base-T over copper. It handles a maximum data transfer rate of 1000 Mbit/s, ensuring full Gigabit throughput without bottlenecks. The single-mode fiber interface allows for signal transmission up to 10 kilometers, making it effective for long-distance network links where copper cabling is impractical.
Power is supplied via an included AC adapter, with a low consumption of 2.20 watts for energy-efficient operation. The device is engineered for continuous duty in professional environments, with passive cooling and a robust construction that supports reliable performance. Network compatibility spans standard Ethernet equipment, providing plug-and-play functionality with minimal configuration required.
Key Product Advantages
This converter excels in extending network reach and integrating fiber optic capabilities into copper-based systems. Its design prioritizes reliability, compatibility, and ease of deployment for IT professionals managing mixed-media networks.
Long-Distance Connectivity
Supports up to 10 km over single-mode fiber, enabling network extension beyond the limitations of standard copper cabling.
- 1310 nm wavelength for optimal signal integrity
- Ideal for campus links and remote building connections
Versatile Mounting Options
Can be installed as a standalone unit or mounted on walls, rails, or racks to fit various space constraints and organizational needs.
- Compact dimensions: 1" H x 3.25" W x 4.80" D
- Facilitates tidy cable management in dense environments
Compliance and Warranty
Meets key environmental and regulatory standards, backed by a lifetime limited warranty for long-term assurance.
- TAA compliant for government and institutional use
- RoHS, REACH, and WEEE compliant for environmental responsibility
Deployment / Use Cases
This media converter is tailored for scenarios where fiber optic cabling must interface with standard Ethernet equipment. It serves as a practical solution for extending network segments, integrating fiber backbones, and overcoming distance limitations in diverse IT infrastructures.
Common applications include connecting fiber runs from a main data center to remote switches or servers, linking buildings across a campus with high-speed fiber, and integrating fiber-based security cameras or IoT devices into copper networks. The device also supports network upgrades where new fiber segments are added to legacy copper systems, ensuring backward compatibility and future-proofing investments.
Campus Network Extension
Extend Gigabit Ethernet between buildings using existing single-mode fiber infrastructure, maintaining high bandwidth over long distances.
Data Center Interconnects
Bridge fiber optic backbone links to copper-based server racks or network switches, simplifying hybrid media deployments.
Physical Profile
The converter features a compact and durable enclosure measuring 1 inch in height, 3.25 inches in width, and 4.80 inches in depth, with an approximate weight of 2 pounds. Its design supports multiple installation methods, including wall, rail, rack, or standalone placement, offering flexibility for space-constrained environments. The small footprint and lightweight construction facilitate easy integration into network closets, equipment racks, or desktop setups without requiring extensive mounting hardware.
- Width
- 3.25" (82.55 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1310 nm
What's in the Box
The package includes all necessary components for immediate deployment and operation.
Highlights
- Converts between single-mode fiber (SC port) and Gigabit Ethernet (RJ-45 port)
- Supports distances up to 10 km over fiber for extended network reach
- Operates at 1310 nm wavelength for reliable single-mode fiber performance
- Delivers full Gigabit throughput with 1000 Mbit/s data transfer rate
- Low power consumption at 2.20 watts for energy-efficient operation
- Versatile mounting options: wall, rail, rack, or standalone
- Includes UK power supply for local compatibility
- TAA compliant for use in government and institutional procurement
- RoHS, REACH, and WEEE compliant for environmental standards
- Backed by a lifetime limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SGFEB1014-130-UK |
| Brand Name | Lantronix |
| Product Series | SGFEB |
| Product Model | SGFEB1014-130 |
| Product Name | SGFEB1014-130 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX,10/100/1000Base-T |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 2.20 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Rail-mountable,Rack-mountable,Standalone |
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | SGFEB1014-130 Transceiver/Media Converter Power Supply - United Kingdom |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of connections does this media converter support?
This converter supports one SC port for single-mode fiber optic cable and one RJ-45 port for twisted-pair copper Ethernet. It converts signals between these two media types, enabling integration of fiber segments into copper-based networks. The SC port uses a standard connector for single-mode fiber, while the RJ-45 port handles Gigabit Ethernet over Cat5e or higher cabling.
What is the maximum distance supported over fiber?
The converter supports a maximum distance of 10 kilometers (approximately 6.21 miles) over single-mode fiber when using the SC port. This extended range is ideal for long-distance network links, such as between buildings or across campuses, where copper cabling would be impractical due to signal degradation over longer runs.
What wavelength does the fiber interface use?
The fiber optic interface operates at a 1310 nm wavelength, which is standard for single-mode fiber transmissions. This wavelength provides optimal performance for long-distance communication with minimal signal loss, ensuring reliable data transfer over the supported 10 km distance in typical network environments.
Is this device compatible with Gigabit Ethernet speeds?
Yes, this media converter fully supports Gigabit Ethernet, with a maximum data transfer rate of 1000 Mbit/s. It is compatible with 1000Base-LX over fiber and 10/100/1000Base-T over copper, allowing seamless integration into existing Gigabit networks without sacrificing performance or requiring downgrades to lower speeds.
How is the converter powered?
The converter is powered by an included AC adapter, which plugs into standard electrical outlets. It has a low power consumption of 2.20 watts, making it energy-efficient for continuous operation. The power supply is specific to the United Kingdom, ensuring compatibility with local voltage and plug standards for safe and reliable use.
What mounting options are available for installation?
This converter offers flexible mounting options: it can be installed as a wall-mountable, rail-mountable, rack-mountable, or standalone unit. This versatility allows it to fit into various environments, such as network racks, server closets, or desktop setups, facilitating organized cable management and efficient use of space in diverse deployment scenarios.
