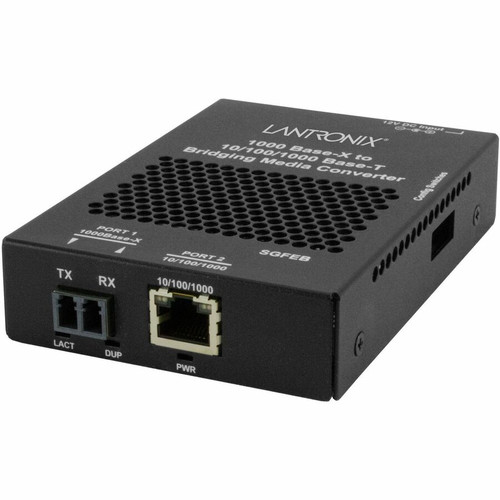

Lantronix SGFEB1019-130-UK SGFEB1019-130 Gigabit Fiber Media Converter - 1x LC Single-mode (1310 nm) to 1x RJ-45 - 10 km Distance - Wall/Rack
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SGFEB1019-130 operates with single-mode fiber optics using a 1310 nm wavelength, optimized for long-distance transmission with minimal signal loss. It supports 1000Base-LX over fiber and auto-negotiating 10/100/1000Base-T over copper, ensuring compatibility with a wide range of network equipment.
Power is supplied via an included AC adapter, with consumption rated at just 2.20 watts. The converter meets key environmental standards including RoHS, REACH, and WEEE, and is TAA compliant for use in government and regulated procurement scenarios.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of LC Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The converter provides a cost-effective solution for integrating fiber optic segments into copper-based networks without requiring major infrastructure changes. Its plug-and-play operation requires no configuration, simplifying deployment and reducing setup time.
Extended Network Reach
Converts between fiber and copper to overcome distance limitations of traditional Ethernet cabling, supporting links up to 10 kilometers.
- Eliminates copper distance constraints
- Maintains Gigabit speeds over long runs
- Reduces need for intermediate switches
Versatile Deployment
Offers multiple mounting options including wall, rack, rail, or standalone placement to fit various installation environments.
- Flexible placement in telecom closets
- Saves rack space with compact design
- Easy integration into existing infrastructure
Deployment / Use Cases
This media converter is ideal for scenarios where fiber optic cabling is required for distance, security, or interference reasons, but end devices only support copper Ethernet. Common applications include connecting remote offices, extending surveillance camera networks, and integrating industrial control systems where fiber's immunity to electromagnetic interference is critical.
Campus Network Extension
Connect buildings across a campus or industrial facility using fiber for the backbone, with copper drops to individual rooms or workstations.
- Extend network between separate buildings
- Overcome EMI interference in industrial settings
- Maintain performance across large properties
Data Center Connectivity
Integrate fiber connections from core switches to copper-based servers or storage devices within rack environments.
- Bridge fiber backbone to copper equipment
- Support high-density rack deployments
- Simplify cable management with conversion
Physical Profile
The SGFEB1019-130 features a compact design measuring 1" (25.4 mm) in height, 3.25" (82.55 mm) in width, and 4.80" (121.92 mm) in depth, with a weight of approximately 2 pounds (907.18 grams). This small footprint allows installation in tight spaces while supporting wall, rack, rail, or standalone mounting configurations. The durable construction ensures reliable operation in various environmental conditions.
- Width
- 3.25" (82.55 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1310 nm
What's in the Box
The package includes everything needed for immediate deployment of the media converter.
Highlights
- Converts between single-mode LC fiber (1310 nm) and RJ-45 copper Ethernet
- Supports Gigabit speeds up to 1000 Mbps with 10 km fiber distance
- Plug-and-play operation with no configuration required
- Wall, rack, rail, or standalone mounting options
- Low power consumption at 2.20 watts
- TAA compliant for government procurement
- Lifetime warranty for long-term reliability
- RoHS, REACH, and WEEE compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SGFEB1019-130-UK |
| Brand Name | Lantronix |
| Product Series | SGFEB |
| Product Model | SGFEB1019-130 |
| Product Name | SGFEB1019-130 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 10 km (6.21 Mile) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-LX,10/100/1000Base-T |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 2.20 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Rail-mountable,Rack-mountable,Standalone |
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | SGFEB1019-130 Transceiver/Media Converter Power Supply - United Kingdom |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of connections does this media converter support?
The converter has one LC fiber port for single-mode fiber connections and one RJ-45 port for copper Ethernet connections. It converts between these two media types, allowing fiber optic segments to integrate with standard copper network equipment.
What is the maximum distance supported over fiber?
This converter supports fiber optic connections up to 10 kilometers (approximately 6.21 miles) when using single-mode fiber with 1310 nm wavelength. This extended reach makes it suitable for connecting buildings across campuses or industrial facilities.
What network speeds does this converter support?
The device supports Gigabit Ethernet speeds up to 1000 Mbps. It is compatible with 1000Base-LX over fiber and auto-negotiates 10/100/1000Base-T over copper, ensuring optimal performance with various network equipment.
How is this media converter powered?
Power is supplied through an included AC adapter. The converter has low power consumption of just 2.20 watts, making it energy-efficient for continuous operation in network environments.
What mounting options are available for installation?
The compact design supports wall mounting, rack mounting, rail mounting, or standalone placement. This flexibility allows installation in telecom closets, equipment racks, or other space-constrained locations based on your deployment needs.
Is this product compliant with government procurement requirements?
Yes, the SGFEB1019-130 is TAA (Trade Agreements Act) compliant, making it suitable for government and regulated procurement scenarios. It also meets environmental standards including RoHS, REACH, and WEEE directives.
