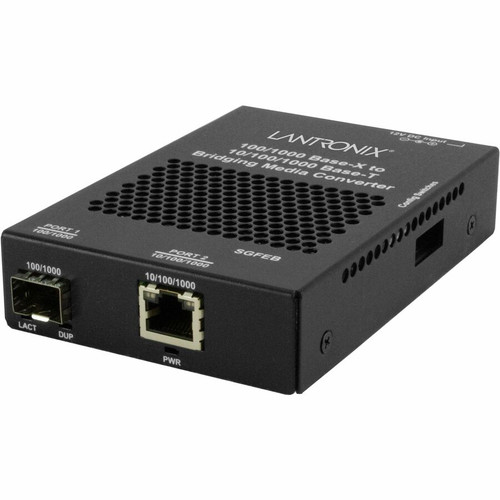

Lantronix SGFEB1040-130-BR Gigabit Ethernet Media Converter - 1 x RJ-45 to SFP Fiber - 10/100/1000Base-T - 100/1000Base-X - Wall/Rack Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter operates with Gigabit Ethernet technology, providing a maximum data transfer rate of 1000 Mbit/s. It features one fixed RJ-45 port for twisted pair cabling and one SFP expansion slot for fiber optic modules, allowing flexible media selection based on distance and environment.
The unit supports connections up to 100 meters over twisted pair and is compatible with standard SFP transceivers for fiber runs. Power is supplied via an included AC adapter, with a low power consumption of 2.20 W, contributing to energy-efficient network operations.
This section brings together practical product details such as Total Number of Ports, Network (RJ-45), Number of Network (RJ-45) Ports, Media Type Supported, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The SGFEB1040-130-BR simplifies network integration by converting between cost-effective twisted pair cabling and high-performance fiber optics, eliminating the need for separate infrastructure investments. Its single-port design reduces complexity while maintaining full Gigabit speeds.
Flexible Media Support
Connect twisted pair and optical fiber within the same device, supporting both 10/100/1000Base-T and 100/1000Base-X standards for versatile network design.
- Uses standard RJ-45 for copper
- Accepts SFP modules for fiber
- Maintains Gigabit throughput
Versatile Mounting Options
Install the converter in multiple environments with wall, rail, rack, or standalone placement, keeping cables organized and saving space.
- Wall mountable for tight spaces
- Rack-mountable for data centers
- Standalone for temporary setups
Deployment / Use Cases
This media converter is ideal for extending network segments where fiber is required for distance or noise immunity, but end devices use standard Ethernet. Common applications include connecting fiber backbones to copper-based switches, extending links in industrial settings, or integrating legacy equipment into modern fiber networks.
Deploy it in office buildings to link floors via fiber while maintaining copper connections to workstations, or in data centers to interface between fiber trunks and copper-based servers. Its low power draw and compact size make it suitable for remote cabinets or environmentally controlled enclosures.
Network Extension
Extend Gigabit Ethernet beyond the 100-meter copper limit by converting to fiber for longer runs between buildings or across campuses.
Media Integration
Integrate fiber-optic segments into existing copper networks without replacing switches or endpoints, preserving investments in twisted pair infrastructure.
Physical Profile
The converter has a compact footprint measuring 1" (25.40 mm) in height, 3.25" (82.55 mm) in width, and 4.80" (121.92 mm) in depth, with an approximate weight of 2 lb (907.18 g). Its sturdy construction supports multiple mounting methods, and the small form factor allows installation in space-constrained locations like wall boxes or shallow racks.
- Width
- 3.25" (82.55 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
What's in the Box
The package includes the SGFEB1040-130 Transceiver/Media Converter and a power supply configured for Brazil, ensuring ready-to-use deployment out of the box.
Highlights
- Converts RJ-45 twisted pair to SFP fiber for flexible media integration
- Supports Gigabit Ethernet with 10/100/1000Base-T and 100/1000Base-X standards
- Maximum data transfer rate of 1000 Mbit/s for high-speed network performance
- Extends connections up to 100 meters over twisted pair cabling
- Features one RJ-45 port and one SFP slot for versatile connectivity
- Wall, rail, rack, or standalone mounting options for easy installation
- Low power consumption of 2.20 W for energy-efficient operation
- Includes power supply and is TAA compliant for government deployments
- Backed by a lifetime limited warranty for long-term reliability
- Environmentally friendly with RoHS, REACH, and WEEE compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SGFEB1040-130-BR |
| Brand Name | Lantronix |
| Product Series | SGFEB |
| Product Model | SGFEB1040-130 |
| Product Name | SGFEB1040-130 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,100/1000Base-X |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 2.20 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Rail-mountable,Rack-mountable,Standalone |
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | SGFEB1040-130 Transceiver/Media Converter Power Supply - Brazil |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What does this media converter do?
The Lantronix SGFEB1040-130-BR converts between standard RJ-45 twisted pair Ethernet and SFP-based fiber optic connections. It allows you to integrate fiber segments into copper networks or extend copper links using fiber, supporting Gigabit speeds for seamless data transfer between different media types.
What types of cables and connections does it support?
This converter supports twisted pair cables via its RJ-45 port and optical fiber via an SFP slot. It is compatible with 10/100/1000Base-T over copper and 100/1000Base-X over fiber, enabling use with Cat5e/Cat6 cables and standard SFP transceivers for single-mode or multimode fiber.
What is the maximum distance it can support?
Over twisted pair cabling, the converter supports distances up to 100 meters (0.10 km). When used with fiber optic SFP modules, the distance depends on the specific module installed, allowing for much longer runs typical of fiber optics, making it suitable for extending network segments beyond copper limits.
How is the converter powered and installed?
It is powered by an included AC adapter, with a low consumption of 2.20 W. Installation is flexible: the unit can be wall-mounted, rail-mounted, rack-mounted, or placed standalone, with compact dimensions of 1" H x 3.25" W x 4.80" D for easy integration into various environments.
What is included in the package?
The package contains the SGFEB1040-130 Transceiver/Media Converter and a power supply configured for Brazil. This provides all necessary components for immediate deployment, ensuring you can set up the device without additional purchases.
Is this media converter compliant with environmental and trade regulations?
Yes, it is environmentally friendly and complies with RoHS, REACH, and WEEE directives. It is also TAA compliant, making it suitable for use in government and trade agreement procurement scenarios, and comes with a lifetime limited warranty for added reliability.
