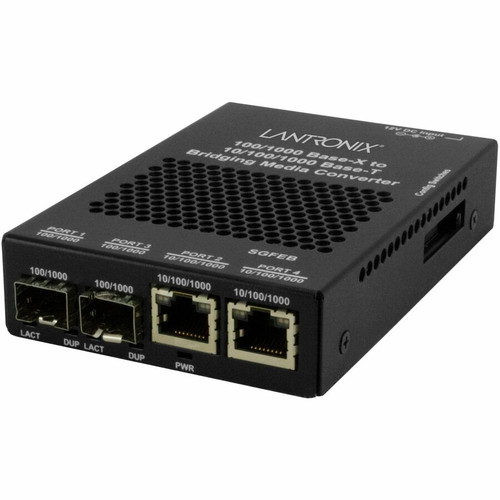

Lantronix SGFEB1040-330-UK Gigabit Media Converter - 2 x RJ-45 + 2 x SFP Slots - 10/100/1000Base-T - 100/1000Base-X - Wall/Rack/Rail Mountable
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SGFEB1040-330-UK operates as a transparent media converter, converting signals between twisted pair copper and fiber optic cables without protocol conversion. It features two fixed RJ-45 ports for copper connections and two SFP slots for fiber optic modules, enabling mixed-media network setups. The device supports auto-negotiation and auto-MDI/MDIX on copper ports, simplifying installation and reducing configuration overhead.
With a maximum supported distance of 0.10 km (0.06 mile) over fiber, this converter extends network reach beyond typical copper limitations. The low power consumption of 2.20 W contributes to energy efficiency, while the AC adapter power source ensures stable operation. The converter's compact dimensions—1" height, 3.25" width, and 4.80" depth—make it suitable for space-constrained installations.
Key Product Advantages
This media converter stands out for its dual-role capability, handling both copper-to-fiber conversion and basic network extension tasks. The inclusion of two SFP slots allows customization with various fiber optic modules, adapting to different fiber types and distances. The device's multiple mounting options—wall, rail, rack, or standalone—provide installation flexibility across diverse environments.
Media Flexibility
Supports both twisted pair and optical fiber media, enabling seamless integration between copper and fiber network segments without sacrificing performance.
- Twisted pair for short-range connections
- Fiber optic for extended distance and noise immunity
- Mixed media support in a single device
Deployment Versatility
Offers four mounting options to suit different installation requirements, from data center racks to wall-mounted network closets.
- Wall mount for space-efficient installations
- Rack mount for standard data center deployment
- Rail mount for industrial or specialized environments
Deployment / Use Cases
The SGFEB1040-330-UK is ideal for extending network reach beyond the 100-meter limitation of standard copper Ethernet. It converts copper signals to fiber optic for longer runs between buildings, across campuses, or in industrial settings where electromagnetic interference is a concern. The device also serves as a media converter in mixed-media networks, connecting fiber backbone segments to copper-based edge devices.
Common applications include connecting remote offices via fiber, integrating fiber optic backbone links into copper-based LANs, and extending network connections in environments with high electrical noise. The converter's compact size and multiple mounting options make it suitable for telecom closets, data centers, industrial control systems, and educational or healthcare facilities requiring reliable network extension.
Network Extension
Extend Gigabit Ethernet connections beyond copper distance limits by converting to fiber optic media, maintaining full 1000 Mbit/s throughput over extended runs.
Media Conversion
Bridge between different network media types, allowing seamless integration of fiber optic segments into predominantly copper-based network infrastructures.
Physical Profile
The converter features a compact, durable design with dimensions of 1" (25.40 mm) height, 3.25" (82.55 mm) width, and 4.80" (121.92 mm) depth. Its lightweight construction at approximately 2 lb (907.18 g) facilitates easy handling and installation. The device supports wall, rail, rack, or standalone mounting, providing flexibility for various deployment scenarios without requiring additional mounting kits.
- Width
- 3.25" (82.55 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Package contents include SGFEB1040-330 Transceiver/Media Converter Power Supply - United Kingdom, SGFEB1040-330 Transceiver/Media Converter. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Converts between twisted pair copper and fiber optic media for network extension
- Two RJ-45 ports and two SFP slots provide flexible connectivity options
- Supports 10/100/1000Base-T and 100/1000Base-X network technologies
- Maximum data transfer rate of 1000 Mbit/s for high-performance applications
- Compact design with wall, rail, rack, and standalone mounting versatility
- Low power consumption of 2.20 W for energy-efficient operation
- TAA compliant for government and regulated procurement requirements
- Lifetime limited warranty for long-term reliability assurance
- Environmentally friendly with REACH, RoHS, and WEEE compliance
- Includes UK power supply for immediate deployment in appropriate regions
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SGFEB1040-330-UK |
| Brand Name | Lantronix |
| Product Series | SGFEB |
| Product Model | SGFEB1040-330 |
| Product Name | SGFEB1040-330 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair,Optical Fiber |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 0.10 km (0.06 Mile) |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T,100/1000Base-X |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 2.20 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,Rail-mountable,Rack-mountable,Standalone |
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | SGFEB1040-330 Transceiver/Media Converter Power Supply - United Kingdom |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What media types does this media converter support?
The Lantronix SGFEB1040-330-UK supports both twisted pair copper cables and optical fiber connections. This dual-media capability allows it to convert signals between copper and fiber, enabling network extension beyond typical copper distance limits while maintaining Gigabit Ethernet performance.
How many ports and expansion slots does this converter have?
This media converter features two fixed RJ-45 ports for copper connections and two SFP (Small Form-factor Pluggable) slots for fiber optic modules. The SFP slots accept standard SFP transceivers, allowing customization for different fiber types and distances based on your network requirements.
What is the maximum distance supported by this converter?
The converter supports a maximum distance of 0.10 km (0.06 mile) when using fiber optic media. This extends network reach significantly beyond the 100-meter limitation of standard copper Ethernet, making it suitable for connections between buildings or across larger facilities.
What mounting options are available for this device?
The SGFEB1040-330-UK offers four mounting options: wall mountable, rail-mountable, rack-mountable, and standalone. This versatility allows installation in various environments, from data center racks to wall-mounted network closets, without requiring additional mounting hardware.
What power source does this media converter use?
The converter is powered by an AC adapter with a power consumption of 2.20 W. The included power supply is configured for United Kingdom electrical standards, providing reliable operation with low energy consumption for continuous network connectivity.
What compliance standards does this product meet?
This media converter is TAA compliant for government procurement, and meets environmental standards including REACH, RoHS, and WEEE directives. It also carries a lifetime limited warranty, ensuring long-term reliability and compliance with regulatory requirements for hazardous substances and electronic waste.
