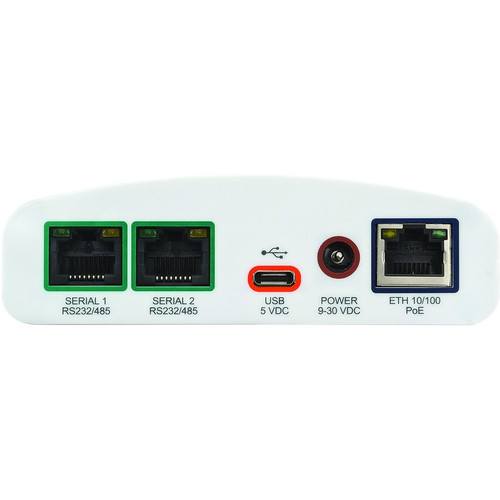

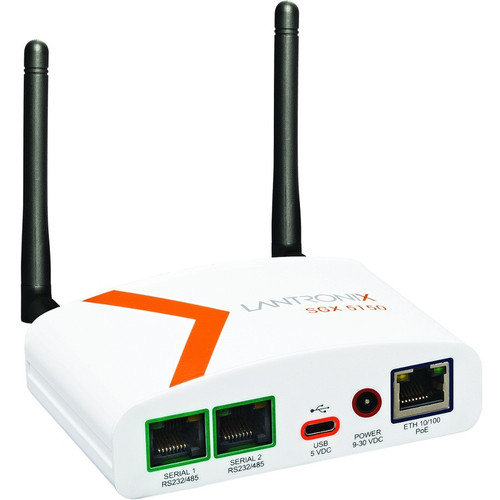

Lantronix SGX 5150 XL Wireless IoT Gateway - 256 MB - Twisted Pair - 1 x Network (RJ-45) - 1 x USB - 2 x Serial Port - 10/100Base-TX - (SGX51502N2ES)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- SGX 5150 XL Wireless IoT Gateway
- 2 x Antennas
Standard Memory: 256 MB
Media Type Supported: Twisted Pair
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac
ISM Band: Yes
UNII Band: Yes
Ethernet Technology: Fast Ethernet
Network Standard: 10/100Base-TX
Network (RJ-45): Yes
USB: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 1
Number of USB Ports: 1
Number of Serial Ports: 2
Package Contents:
Country of Origin: Thailand
- Industrial rated 802.11ac Wi-Fi module (2.4 GHz and 5 GHz) for high performance Enterprise IoT
- Embedded Ethernet to Wi-Fi Bridge and Router modes
- Enterprise Wi-Fi Security (EAP-TLS, EAP-TTLS, EAP-PEAP)
- Secure Boot and Secure OTA Firmware Updates
- Pre-Integrated Device Management (via MACH10)
- Add your own IoT edge application with Yocto Linux SDK
- Direct mobile to device service interface via Soft AP or Wi-Fi Direct
- Concurrent AP and Client (STA), AP Only, Client (STA) only modes
- Ethernet, USB, Serial - Host Interfaces
- Compact System-on-Module SMT footprint with antenna diversity (46 mm x 45 mm x 3.5 mm)
[custom-specifications]
| Specifications | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SGX51502N2ES |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Series | SGX 5150 |
| Product Name | SGX 5150 XL Wireless IoT Gateway |
| Product Type | Device Server |
| Memory | |
| Standard Memory | 256 MB |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| ISM Band | Yes |
| UNII Band | Yes |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-TX |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of Serial Ports | 2 |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Thailand |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
User-Manual
[/custom-user-manual]
