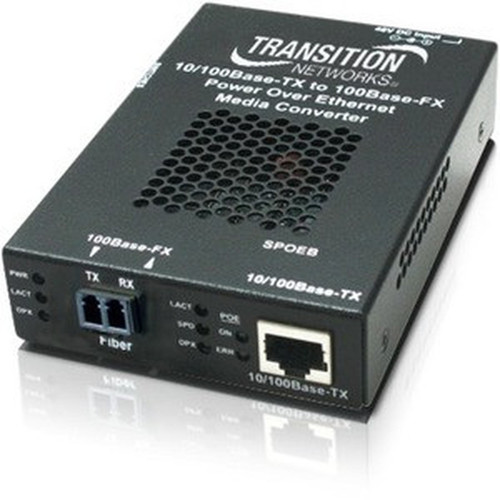

Transition Networks SPOEB1011-105-NA Media Converter - 1x PoE RJ-45 - 1x ST Fiber - Multi-mode 1300 nm - Fast Ethernet
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This media converter supports Fast Ethernet technology with a maximum data transfer rate of 100 Mbit/s. The PoE RJ-45 port functions as a Power Sourcing Equipment (PSE) port, capable of delivering power to connected devices like IP cameras, wireless access points, or VoIP phones. The ST fiber port uses duplex connectors for reliable optical signal transmission.
The converter handles media conversion between optical fiber and twisted pair, supporting both multi-mode fiber and standard Ethernet cabling. It is compliant with 100Base-FX and 10/100Base-TX network standards, ensuring interoperability with existing Fast Ethernet equipment. Power is supplied via an included AC adapter, with a consumption of 20 watts under typical operation.
Key Product Advantages
This media converter simplifies network expansion by integrating PoE and fiber conversion into one device, reducing the need for separate power injectors and media converters. Its support for multi-mode fiber at 1300 nm wavelength ensures efficient signal integrity over extended distances up to 2 kilometers, overcoming the limitations of copper cabling.
PoE Integration
The built-in PoE PSE port delivers power to connected devices, eliminating the need for additional power sources at remote locations and streamlining installation for PoE-enabled endpoints.
- Power over Ethernet support
- PSE functionality
- Simplifies remote device power
Flexible Mounting
Multiple mounting options including wall, DIN rail, shelf, or standalone placement provide installation flexibility for various environments, from network closets to industrial control panels.
- Wall mountable
- DIN rail compatible
- Shelf or standalone use
Deployment / Use Cases
This converter is suited for extending network reach in scenarios where fiber optic cabling is necessary for distance, noise immunity, or security. Common applications include connecting remote buildings across a campus, linking network segments in manufacturing plants, or integrating surveillance cameras in large facilities.
In security deployments, the PoE port can power an IP camera while the fiber uplink ensures stable video data transmission back to the network core. For industrial networks, the converter bridges Ethernet devices in harsh environments where fiber's immunity to electromagnetic interference is critical. Its compact form factor and versatile mounting make it adaptable for both controlled IT rooms and field installations.
Campus Network Extension
Connect separate buildings over fiber backbone while powering access points or cameras at the edge, maintaining network performance across long distances.
Industrial Ethernet
Integrate machinery and control systems in factories where fiber optic cabling prevents signal degradation from electrical noise, ensuring reliable communication.
Physical Profile
The converter features a compact design measuring 1" (25.40 mm) in height, 3.25" (82.55 mm) in width, and 4.80" (121.92 mm) in depth, with an approximate weight of 2 lb (907.18 g). Its small footprint allows for discreet installation in space-constrained locations. The unit supports wall mounting, DIN rail attachment, shelf placement, or standalone use, offering flexibility for various installation environments from network racks to industrial panels.
- Width
- 3.25" (82.55 mm)
- Depth
- 4.80" (121.92 mm)
- Height
- 1" (25.40 mm)
- Weight
- 2 lb (907.18 g)
- Length
- 1300 nm
What's in the Box
The package includes the SPOEB1011-105 media converter and a North America power supply, providing everything needed for immediate deployment.
Highlights
- Converts Fast Ethernet between twisted pair and multi-mode fiber optic cabling
- Includes one PoE RJ-45 port with PSE functionality for powering remote devices
- Supports ST duplex fiber connectors at 1300 nm wavelength
- Extends network reach up to 2 kilometers (1.24 miles)
- Operates at 100 Mbit/s data transfer rate with 100Base-FX/10/100Base-TX compatibility
- Flexible mounting options: wall, DIN rail, shelf, or standalone
- Powered by AC adapter with 20 W power consumption
- Compliant with REACH, RoHS, and WEEE environmental standards
- TAA compliant for government procurement
- Backed by a lifetime limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SPOEB1011-105-NA |
| Brand Name | Lantronix |
| Product Series | SPOEB |
| Product Model | SPOEB1011-105 |
| Product Name | SPOEB1011-105 Transceiver/Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber,Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX,10/100Base-TX |
| Power Description | |
| Power Source | AC Adapter |
| Power Consumption | 20 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable,DIN Rail Mountable,Shelf Mount,Standalone |
| Height | 1" (25.40 mm) |
| Width | 3.25" (82.55 mm) |
| Depth | 4.80" (121.92 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Package Contents | SPOEB1011-105 Transceiver/Media Converter Power Supply - North America |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
User Manual
FAQ
What types of cables does this media converter support?
The SPOEB1011-105-NA supports both optical fiber and twisted pair cabling. It connects to multi-mode fiber via an ST duplex port and to Ethernet devices via an RJ-45 port. This allows conversion between fiber optic and copper network segments.
How far can this converter transmit data over fiber?
This converter supports a maximum distance of 2 kilometers (1.24 miles) when using multi-mode fiber at 1300 nm wavelength. This extended reach is ideal for connecting network segments across buildings or large facilities where copper cabling would be insufficient.
Does the PoE port provide power to connected devices?
Yes, the PoE RJ-45 port functions as Power Sourcing Equipment (PSE), delivering power to compatible devices like IP cameras, wireless access points, or VoIP phones. This eliminates the need for separate power sources at remote installation points.
What are the mounting options for this converter?
The converter offers multiple mounting options: it can be wall-mounted, attached to a DIN rail, placed on a shelf, or used as a standalone unit. This flexibility accommodates various installation environments, from network closets to industrial control panels.
What is the data transfer rate of this media converter?
This converter supports Fast Ethernet with a maximum data transfer rate of 100 Mbit/s. It is compatible with 100Base-FX for fiber connections and 10/100Base-TX for copper connections, ensuring interoperability with standard Fast Ethernet network equipment.
What is included in the package with this converter?
The package includes the SPOEB1011-105 media converter and a North America power supply. This provides all necessary components for immediate deployment without requiring additional accessories for basic operation.
