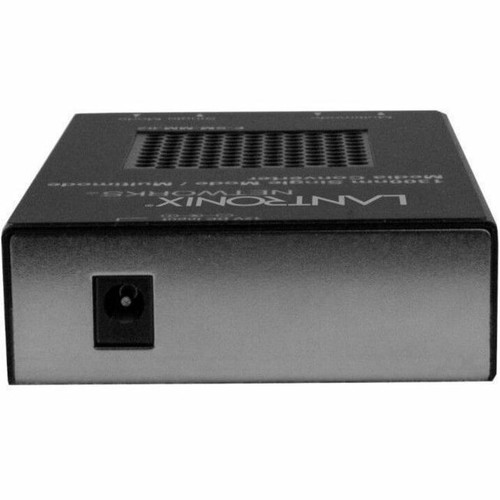

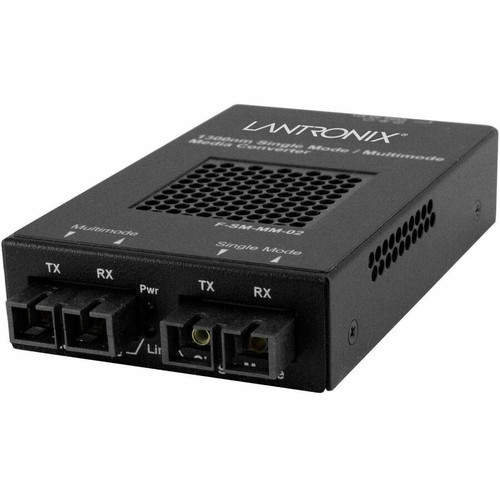

Lantronix Stand-alone Fiber to Fiber Media Converter - Single-mode, Multi-mode - 1300 nm Fiber - 155 Mbit/s - 20 km (12.43 Mile) - - (F-SM-MM-02-UK)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode,Multi-mode
Fiber Optic Cable Wavelength: 1300 nm
Maximum Data Transfer Rate: 155 Mbit/s
Maximum Distance Supported: 20 km (12.43 Mile)
Power Source: AC/DC
Power Consumption: 3.10 W
Form Factor: Standalone,DIN Rail Mountable
Height: 0.39" (10 mm)
Width: 3" (76.20 mm)
Depth: 4.70" (119.38 mm)
Weight (Approximate): 2 lb (907.18 g)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
TAA Compliant: Yes
Limited Warranty: Lifetime
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- The unit is standalone and you can place it anywhere on a flat surface
[custom-specifications]
| Specifications | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | F-SM-MM-02-UK |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Series | F-SM-MM-02 |
| Product Name | Stand-alone Fiber to Fiber Media Converter |
| Product Type | Transceiver/Media Converter |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode,Multi-mode |
| Fiber Optic Cable Wavelength | 1300 nm |
| Maximum Data Transfer Rate | 155 Mbit/s |
| Maximum Distance Supported | 20 km (12.43 Mile) |
| Power Description | |
| Power Source | AC/DC |
| Power Consumption | 3.10 W |
| Physical Characteristics | |
| Form Factor | Standalone,DIN Rail Mountable |
| Height | 0.39" (10 mm) |
| Width | 3" (76.20 mm) |
| Depth | 4.70" (119.38 mm) |
| Weight (Approximate) | 2 lb (907.18 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
