Lenovo 12V20017US ThinkCentre M90t Gen 5 Tower Desktop - Intel Core i9-14900 - 32GB DDR5 - 1TB NVMe SSD - AMD Radeon RX 6600 LE - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this ThinkCentre is the Intel Core i9-14900 processor, featuring Intel vPro technology for enhanced manageability and security in business environments. The platform is supported by the Intel Q670 chipset, providing a stable foundation for the 32 GB of dual-channel DDR5 RAM running at 4400 MHz.
Storage is handled by a fast PCIe NVMe 4.0 SSD in the M.2 form factor, delivering rapid boot times and near-instantaneous file access. For expansion and legacy media, the system includes a built-in DVD-Writer. The dedicated AMD Radeon RX 6600 LE graphics processor ensures smooth visuals for design work and multimedia, backed by 8 GB of dedicated GDDR6 memory.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This ThinkCentre M90t Gen 5 is designed for professionals who need uncompromising performance and robust connectivity in a desktop form factor. Its combination of high-core-count processing, ample fast memory, and dedicated graphics creates a balanced platform for a wide range of business and technical applications.
Professional-Grade Performance
The Intel Core i9-14900 processor with vPro and 32 GB of DDR5 RAM provides the computational headroom for virtualization, software development, financial modeling, and other CPU-intensive workloads.
- 24-core, 32-thread processing power
- Intel vPro for remote management & security
- DDR5 memory for high bandwidth and efficiency
Expanded Visual & Storage Capability
The dedicated AMD Radeon RX 6600 LE GPU accelerates graphics tasks, while the 1 TB NVMe SSD ensures the system never waits on storage I/O.
- 8 GB dedicated GDDR6 graphics memory
- PCIe 4.0 NVMe SSD for ultra-fast data access
- Built-in DVD-Writer for disc-based media
Business-Ready Connectivity & Security
With Wi-Fi 6, Gigabit Ethernet, multiple USB ports including a front USB-C with charging, and a security slot, the desktop is equipped for modern office environments.
- Comprehensive USB port selection (9 total)
- Front USB-C 10 Gbps with 15W charging
- Kensington-style security slot for physical security
Deployment / Use Cases
The ThinkCentre M90t Gen 5 is ideally suited for roles that demand high sustained performance and reliability. Its tower form factor offers excellent internal expansion potential for adding additional storage, specialized cards, or memory in the future.
In engineering and design studios, the powerful CPU and dedicated GPU make it a capable machine for CAD, CAM, and 3D rendering applications. For data scientists and analysts, the high core count and large memory capacity accelerate data processing and complex simulations. In corporate IT departments, the vPro platform and Windows 11 Pro provide the tools for efficient deployment, management, and security policy enforcement across a fleet of devices.
Engineering & Content Creation Workstation
Run demanding applications like AutoCAD, SolidWorks, Adobe Creative Suite, or DaVinci Resolve with smooth performance, leveraging both the high-core-count CPU and dedicated graphics.
Corporate Power User & Developer Desktop
Handle multiple virtual machines, large code compilations, financial models, or database applications efficiently with 32 GB of RAM and fast NVMe storage.
Localization and Operating System
This system ships with Microsoft Windows 11 Pro pre-installed in English. Windows 11 Pro provides advanced features for business environments, including BitLocker device encryption, remote desktop hosting, and enhanced security controls. The included USB keyboard is localized for English (US) layout.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

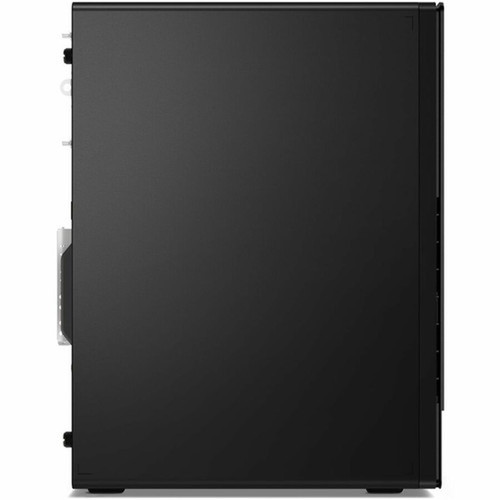

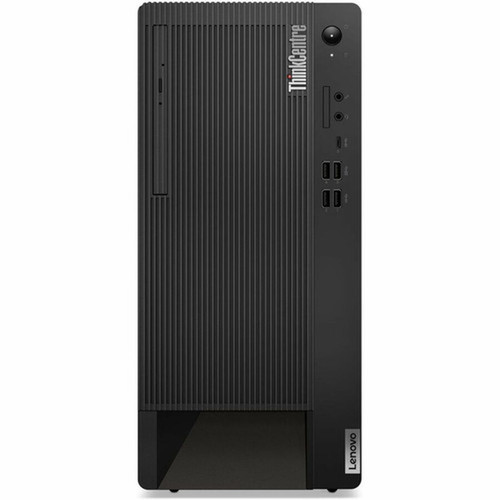

Housed in a classic black tower chassis, the desktop measures 14.80" high, 6.69" wide, and 11.73" deep, offering a standard footprint for under-desk or workstation placement. Weighing approximately 14.33 lbs, it provides a solid, stable base for its internal components. The design prioritizes function and serviceability, with tool-less access in many models for easy upgrades and maintenance.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 14.80" (376 mm), 6.69" (170 mm), 11.73" (298 mm), 14.33 lb (6500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.69" (170 mm)
- Depth
- 11.73" (298 mm)
- Height
- 14.80" (376 mm)
- Weight
- 14.33 lb (6500 g)
What's in the Box
The desktop computer arrives ready to set up with essential peripherals included.
Highlights
- Intel Core i9-14900 processor (14th Gen, 24 Cores, 32 Threads) with Intel vPro technology
- 32 GB of DDR5 RAM (4400 MHz) in a dual-channel 2 x 16 GB configuration for high-bandwidth performance
- 1 TB PCI Express NVMe 4.0 x4 SSD delivers extremely fast boot, load, and file transfer speeds
- Dedicated AMD Radeon RX 6600 LE graphics card with 8 GB of GDDR6 memory for accelerated visual workloads
- Windows 11 Pro operating system pre-installed, offering robust security and management features for business
- Comprehensive connectivity: Wi-Fi 6 (802.11ax), Bluetooth, Gigabit Ethernet, and 9 USB ports including a front USB-C with charging
- Built-in DVD-Writer for reading and writing CD/DVD media
- Black tower form factor with a 500 W power supply and a 3-year onsite warranty for peace of mind
- Meets key environmental and energy standards: ENERGY STAR 8.0, EPEAT Gold, TCO Certified 9.0, RoHS compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 12V20017US |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | M90t Gen 5 |
| Product Model | 12V20017US |
| Product Name | ThinkCentre M90t Gen 5 12V20017US Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Maximum Turbo Speed | 5.80 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 4400 MHz |
| Memory Configuration | 2 x 16GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Optical Drive Type | DVD-Writer |
| Optical Media Supported | DVD±RW |
| Display & Graphics | |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon RX 6600 LE |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with 15W charging(front) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 14.80" (376 mm) |
| Width | 6.69" (170 mm) |
| Depth | 11.73" (298 mm) |
| Weight (Approximate) | 14.33 lb (6500 g) |
| Miscellaneous | |
| Package Contents | ThinkCentre M90t Gen 5 12V20017US Desktop Computer USB Traditional Keyboard USB Calliope Mouse |
| Features | Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0,GREENGUARD |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite |
User Manual
FAQ
What processor is in this Lenovo ThinkCentre desktop, and what are its key features?
This desktop is powered by an Intel Core i9-14900 processor from the 14th Gen family. It is a high-performance CPU with 24 cores and 32 threads, a base clock speed of 2 GHz, and a maximum turbo frequency of 5.80 GHz. It also includes Intel vPro technology, which provides enhanced security, remote manageability, and system stability features crucial for business and IT-managed environments.
How much memory does this computer have, and what type is it?
The system comes standard with 32 GB of DDR5 SDRAM. The memory operates at a speed of 4400 MHz and is installed in a dual-channel configuration using two 16 GB modules. DDR5 memory offers higher bandwidth and improved power efficiency compared to previous generations, benefiting data-intensive applications and multitasking.
What are the storage details for this ThinkCentre M90t Gen 5?
Primary storage is a 1 TB Solid State Drive (SSD). It uses the PCI Express NVMe 4.0 x4 interface in the M.2 form factor, which provides exceptionally fast data transfer rates for the operating system, applications, and files. The system also includes an integrated DVD-Writer optical drive that supports reading and writing DVD±RW discs.
Does this desktop have a dedicated graphics card?
Yes, it features a dedicated AMD Radeon RX 6600 LE graphics card. This GPU has 8 GB of its own dedicated GDDR6 video memory. A dedicated graphics card significantly improves performance for tasks like 3D rendering, video editing, CAD software, and gaming compared to integrated graphics, offloading visual processing from the main CPU.
What connectivity and ports are available on this model?
The desktop offers extensive connectivity. For networking, it has Gigabit Ethernet, Wi-Fi 6 (802.11ax), and Bluetooth. For peripherals, there are a total of 9 USB ports: 6 USB 3.2 Gen 1 ports, 2 USB 3.2 Gen 2 ports, and 1 front-panel USB Type-C port (USB 3.2 Gen 2, 10 Gbps) that also supports 15W device charging. It also includes a security slot for a physical lock.
What is the warranty and environmental certification for this product?
Lenovo provides a 3-year onsite limited warranty for this desktop, meaning a technician will come to your location for covered repairs. The product also holds several environmental certifications, including ENERGY STAR 8.0 for energy efficiency, EPEAT Gold, TCO Certified 9.0, and GREENGUARD certification. It complies with the RoHS directive, restricting hazardous substances.
