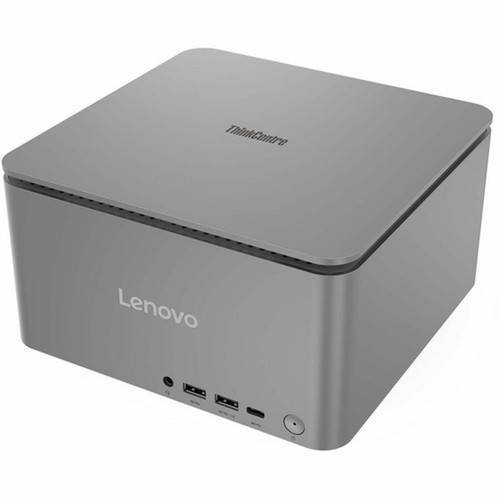

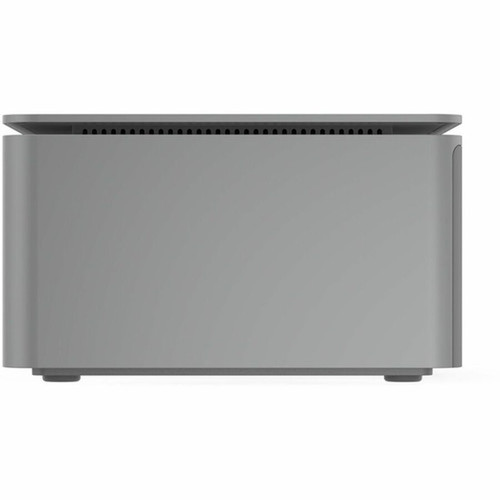

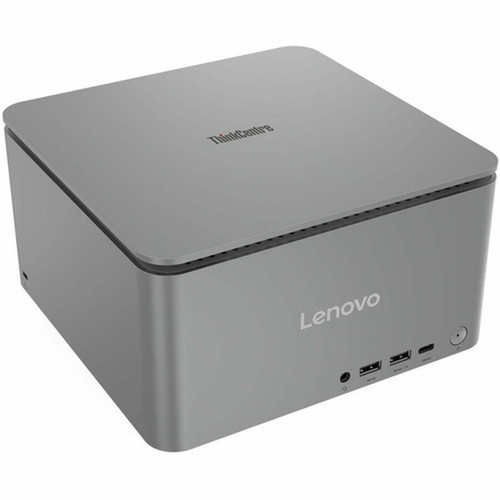

Lenovo 12W1001ACA ThinkCentre neo Ultra Desktop - Intel Core i5-14500 14th Gen - 64GB DDR5 - 1TB NVMe SSD - GeForce RTX 4060 8GB - Tiny Luna Gray
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of this system lies the Intel Core i5-14500 processor, featuring 14 cores and 20 threads with a base clock of 2.6GHz and maximum turbo frequency reaching 5GHz. This 14th Gen architecture delivers efficient multi-threaded performance while maintaining thermal efficiency in the compact chassis. The processor's vPro capabilities enable remote management, hardware-based security features, and stability monitoring for IT administration.
Memory performance is driven by dual-channel 64GB DDR5 SDRAM operating at 4800MHz, providing ample bandwidth for data-intensive applications and large working sets. Storage is handled by a 1TB M.2 NVMe SSD utilizing the PCI Express 4.0 x4 interface for sequential read/write speeds that significantly reduce application load times and file transfer durations. The NVIDIA GeForce RTX 4060 graphics processor with 8GB of dedicated GDDR6 memory accelerates both compute-intensive workloads and visual rendering tasks.
Key Product Advantages
Space-Efficient Powerhouse
The tiny form factor measures just 4.25" x 7.68" x 7.52", occupying minimal desk or mounting space while delivering full desktop performance with professional graphics capabilities.
- Compact footprint for crowded workspaces
- Full thermal management in small chassis
- VESA mount compatible for display mounting
Professional-Grade Graphics
The dedicated NVIDIA GeForce RTX 4060 with 8GB GDDR6 memory provides hardware acceleration for design applications, video editing, 3D modeling, and data visualization workloads.
- RTX architecture for ray tracing and AI acceleration
- Dedicated memory eliminates system RAM sharing
- Supports multiple display configurations
Enterprise Management Ready
Intel vPro technology enables out-of-band management, hardware-enhanced security features, and remote troubleshooting capabilities for streamlined IT administration.
- Remote configuration and monitoring
- Hardware-based threat detection
- Stable platform for business applications
Deployment / Use Cases
This compact desktop excels in environments where space constraints intersect with performance requirements. Its combination of substantial memory, fast storage, and dedicated graphics makes it suitable for financial analysis workstations, engineering design stations, and creative production environments where multiple applications run simultaneously.
The system's professional graphics capabilities and French-localized Windows 11 Pro operating system position it well for architectural visualization, video post-production, and scientific computing applications in French-speaking regions. The tiny form factor allows deployment in retail point-of-sale configurations, healthcare clinical workstations, and educational computer labs where desk space is limited but full computing capabilities are required.
Design & Engineering Workstation
With 64GB RAM and RTX 4060 graphics, this system handles CAD applications, 3D modeling software, and simulation tools while maintaining a small physical presence in engineering offices or design studios.
Financial Analysis Terminal
The high-core-count processor and substantial memory support multiple financial applications, data analysis tools, and trading platforms running concurrently with real-time market data feeds.
Localization and Operating System
This system ships with Windows 11 Pro pre-installed in French language, providing a localized interface, system messages, and documentation for French-speaking users. The operating system includes professional features such as BitLocker encryption, Remote Desktop hosting, and Hyper-V virtualization support.
Complementing the OS localization, the included USB Calliope keyboard features French key legends and layout, ensuring immediate productivity without requiring additional peripheral purchases or configuration. This complete French-language solution reduces deployment time and training requirements for organizations operating in French-speaking markets.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkCentre neo Ultra's tiny form factor measures 4.25 inches in height, 7.68 inches in width, and 7.52 inches in depth, with a weight of 7.72 pounds. The Luna Gray finish presents a professional appearance suitable for corporate, educational, and healthcare environments. The compact dimensions allow placement in space-constrained areas while maintaining full thermal performance through optimized airflow design.

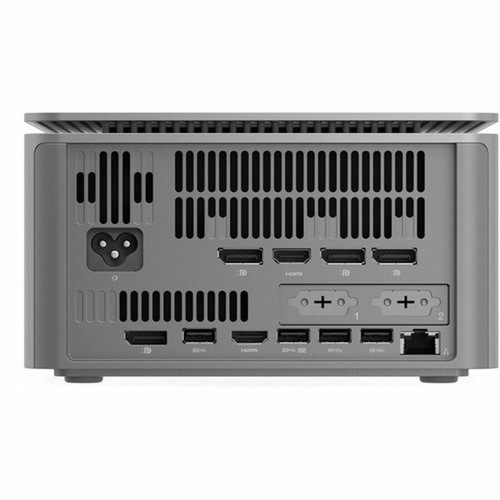

The chassis includes a security slot for physical theft prevention and is designed for both desktop placement and VESA mounting behind compatible displays. Despite its small size, the system provides comprehensive connectivity with seven USB ports, Gigabit Ethernet, and wireless capabilities, eliminating the need for external expansion hubs in most deployment scenarios.
- Width
- 7.68" (195 mm)
- Depth
- 7.52" (191 mm)
- Height
- 4.25" (108 mm)
- Weight
- 7.72 lb (3500 g)
What's in the Box
This desktop computer ships as a complete ready-to-use system with all necessary components for immediate deployment.
Highlights
- 14th Gen Intel Core i5-14500 processor with 14 cores and 20 threads for multitasking performance
- 64GB DDR5 memory operating at 4800MHz for handling large datasets and multiple applications
- 1TB PCIe NVMe 4.0 SSD for fast boot times, application loading, and file transfers
- NVIDIA GeForce RTX 4060 with 8GB dedicated GDDR6 memory for graphics acceleration
- Tiny form factor (4.25"H x 7.68"W x 7.52"D) for space-constrained environments
- Windows 11 Pro French edition with localized interface and French keyboard
- Intel vPro technology for remote management and enhanced security features
- Comprehensive connectivity with 7 USB ports, Gigabit Ethernet, Wi-Fi 6, and Bluetooth
- 350W power supply supporting the full component configuration
- Enterprise certifications including ENERGY STAR 8.0, EPEAT Gold, and TCO Certified
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 12W1001ACA |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | neo Ultra |
| Product Model | 12W1001ACA |
| Product Name | ThinkCentre neo Ultra 12W1001ACA Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i5 |
| Processor Generation | 14th Gen |
| Processor Model | i5-14500 |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Threads | 20 |
| Processor Speed | 2.60 GHz |
| Maximum Turbo Speed | 5 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 64 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 4800 MHz |
| Memory Configuration | 2 x 32GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Controller Model | GeForce RTX 4060 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French |
| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| Number of USB 3.2 Gen 2x2 Type-C Ports | 1 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | French |
| Power Description | |
| Maximum Power Supply Wattage | 350 W |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Luna Gray |
| Form Factor | Tiny |
| Height | 4.25" (108 mm) |
| Width | 7.68" (195 mm) |
| Depth | 7.52" (191 mm) |
| Weight (Approximate) | 7.72 lb (3500 g) |
| Miscellaneous | |
| Package Contents | ThinkCentre neo Ultra 12W1001ACA Desktop Computer USB Calliope Keyboard USB Calliope Mouse |
| Features | Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1-year, Onsite |
User Manual
FAQ
What processor does this Lenovo desktop use and what are its key specifications?
This system features the Intel Core i5-14500 processor from the 14th Gen family. It has 14 physical cores (tetradeca-core) supporting 20 threads through Hyper-Threading technology, with a base clock speed of 2.6GHz and maximum turbo frequency reaching 5GHz. The processor includes Intel vPro technology for enterprise management capabilities and hardware-enhanced security features.
How much memory is installed and what type of RAM does this computer use?
The desktop comes with 64GB of DDR5 SDRAM installed as two 32GB modules running at 4800MHz in dual-channel configuration. DDR5 memory provides higher bandwidth and improved power efficiency compared to previous generations, supporting better performance in memory-intensive applications and multitasking scenarios.
What type of storage does this system have and how fast is it?
Storage is provided by a 1TB M.2 solid-state drive using the PCI Express NVMe 4.0 x4 interface. This NVMe SSD delivers significantly faster data transfer speeds compared to SATA SSDs or traditional hard drives, with sequential read/write performance that accelerates operating system boot times, application loading, and file operations.
Does this desktop include dedicated graphics and what are its capabilities?
Yes, the system features a dedicated NVIDIA GeForce RTX 4060 graphics card with 8GB of GDDR6 memory. This discrete GPU provides hardware acceleration for graphics-intensive applications, supports multiple display configurations, and includes RTX architecture features for ray tracing and AI-accelerated workloads in supported applications.
What operating system is pre-installed and is it localized for specific regions?
The desktop comes with Windows 11 Pro pre-installed in French language edition. This includes the complete French-language interface, system messages, and documentation. The system also includes a French-localized USB keyboard with appropriate key legends and layout for immediate use in French-speaking environments.
How compact is this desktop and what are its physical dimensions?
This ThinkCentre neo Ultra model features a tiny form factor measuring 4.25 inches in height, 7.68 inches in width, and 7.52 inches in depth (108mm x 195mm x 191mm). It weighs approximately 7.72 pounds (3500 grams). The compact size allows placement in space-constrained areas while the Luna Gray finish provides a professional appearance suitable for business environments.
