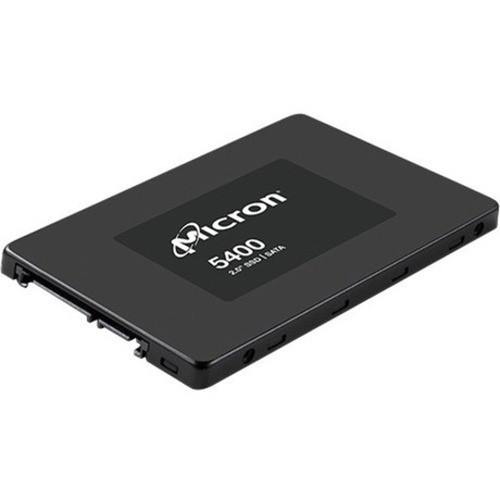

Lenovo 4XB7A82261 5400 PRO 1.92TB SSD - 2.5" Internal SATA 6Gb/s Read Intensive - 1.5 DWPD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This SSD achieves sequential read speeds up to 540 MB/s and write speeds up to 520 MB/s, with random 4KB performance rated at 95,000 IOPS read and 33,000 IOPS write. The 1.5 DWPD (Drive Writes Per Day) endurance rating translates to 5,256 TBW (Total Bytes Written) over the drive's lifespan, classifying it as a read-intensive storage solution.
The SATA/600 interface ensures compatibility with existing server infrastructure while maximizing burst performance. Hardware encryption via 256-bit AES protects data at rest without impacting drive performance, meeting security requirements for sensitive server applications.
Relevant factors for this section include Storage Capacity, Encryption Standard, Maximum Read Transfer Rate, Maximum Write Transfer Rate. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The 5400 PRO SSD combines enterprise reliability with practical features for server deployment. Its read-intensive endurance profile makes it ideal for applications where data retrieval frequency outweighs write operations, extending drive lifespan in server environments.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Server-Optimized Design, Environmental Compliance.
Server-Optimized Design
Specifically validated for Lenovo ThinkSystem servers including SE450, ST250 V2, and SR250 V2 models, ensuring compatibility and reliable performance in supported configurations.
- ThinkSystem SE450 (7D8T)
- ThinkSystem ST250 V2 (7D8G/7D8F)
- ThinkSystem SR250 V2 (7D7R/7D7Q)
Environmental Compliance
Manufactured to meet RoHS and WEEE environmental standards, reducing hazardous substances and supporting responsible electronics disposal practices.
Deployment / Use Cases
This SSD is engineered for server storage applications where consistent read performance and data security are priorities. The 1.92TB capacity provides substantial storage for operating systems, application files, databases, and virtual machine images in single-server or small cluster configurations.
Typical deployment scenarios include file servers, web servers, and application servers where read operations dominate the workload. The read-intensive endurance profile makes it suitable for caching layers, content delivery networks, and archival storage systems that require frequent data access with moderate write activity.
Server Storage Expansion
Add high-performance storage capacity to existing Lenovo ThinkSystem servers without requiring infrastructure changes, leveraging the hot-swappable design for easy maintenance.
Read-Intensive Workloads
Support applications with heavy read patterns including database queries, media streaming, and virtual desktop infrastructure where fast data retrieval enhances user experience.
Physical Profile
The drive measures 2.76" wide by 3.94" deep with a 7mm (0.28") height profile, fitting standard 2.5" server drive bays. At approximately 2.47 ounces (70 grams), it maintains a lightweight form factor that minimizes weight load in multi-drive server configurations. The compact dimensions ensure compatibility with rack-mounted and tower server chassis designed for 2.5" storage devices.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 0.28" (7 mm), 2.76" (70 mm), 3.94" (100 mm), 2.47 oz (70 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 2.76" (70 mm)
- Depth
- 3.94" (100 mm)
- Height
- 0.28" (7 mm)
- Weight
- 2.47 oz (70 g)
Highlights
- 1.92TB storage capacity for extensive server data requirements
- SATA 6Gb/s interface ensures broad compatibility with existing server infrastructure
- 540 MB/s read and 520 MB/s write speeds for responsive data access
- 1.5 DWPD endurance rating supports read-intensive server workloads
- 256-bit AES hardware encryption protects sensitive server data
- Hot-swappable design enables maintenance without system downtime
- Validated for Lenovo ThinkSystem server compatibility
- 7mm height profile fits standard 2.5" server drive bays
- RoHS and WEEE compliant for environmental responsibility
- One-year customer-replaceable unit (CRU) limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4XB7A82261 |
| Brand Name | Lenovo |
| Product Series | 5400 PRO |
| Product Name | ThinkSystem 2.5" 5400 PRO 1.92TB Read Intensive SATA 6Gb HS SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 1.92 TB |
| Encryption Standard | 256-bit AES |
| Drive Performance | |
| Maximum Read Transfer Rate | 540 MB/s |
| Maximum Write Transfer Rate | 520 MB/s |
| Random 4KB Read | 95000IOPS |
| Random 4KB Write | 33000IOPS |
| Endurance (DWPD) | 1.5 |
| Endurance (TBW) | 5256 TB |
| Endurance Type | Read Intensive |
| Network & Communication | |
| Wireless LAN | No |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Hot Swappable | Yes |
| Height | 0.28" (7 mm) |
| Width | 2.76" (70 mm) |
| Depth | 3.94" (100 mm) |
| Weight (Approximate) | 2.47 oz (70 g) |
| Miscellaneous | |
| Device Supported | Server |
| Compatibility | ThinkSystem Servers: SE450 (7D8T) ST250 V2 (7D8G / 7D8F) SR250 V2 (7D7R / 7D7Q) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | 5400 PRO SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty. |
User Manual
FAQ
What server models is this SSD compatible with?
This Lenovo 5400 PRO SSD is specifically validated for Lenovo ThinkSystem servers including the SE450 (7D8T), ST250 V2 (7D8G/7D8F), and SR250 V2 (7D7R/7D7Q) models. It uses a standard 2.5" form factor with SATA 6Gb/s interface, making it potentially compatible with other servers supporting 2.5" SATA drives, but optimal performance and reliability are guaranteed in the listed ThinkSystem configurations.
What does 1.5 DWPD endurance mean for this SSD?
DWPD stands for Drive Writes Per Day, indicating how much data can be written to the drive daily over its warranty period while maintaining reliability. The 1.5 DWPD rating means you can write 1.5 times the drive's 1.92TB capacity (approximately 2.88TB) every day for the warranty period. This translates to 5,256 TBW (Total Bytes Written) total endurance, classifying it as a read-intensive drive suitable for server workloads with more read than write operations.
How does the encryption work on this solid state drive?
The drive features 256-bit AES hardware encryption that protects data at rest without requiring software intervention or impacting performance. This enterprise-grade encryption secures all data stored on the drive, making it suitable for servers handling sensitive information. The encryption is always active and transparent to the operating system, providing security compliance for regulated industries and data-sensitive applications.
What are the performance specifications for random I/O operations?
For random 4KB operations, this SSD delivers 95,000 IOPS (Input/Output Operations Per Second) for read operations and 33,000 IOPS for write operations. These random performance metrics are particularly important for server applications where multiple small file accesses occur simultaneously, such as database transactions, virtual machine operations, and file server activities. The high read IOPS supports responsive server performance under multi-user workloads.
Can this drive be replaced while the server is running?
Yes, this SSD features hot-swappable capability, meaning it can be removed and replaced while the server remains powered on and operational. This design allows for maintenance, upgrades, or failed drive replacement without requiring server downtime. The hot-swap functionality requires a compatible server chassis with hot-swap drive bays and proper handling procedures to ensure data integrity during the replacement process.
What warranty coverage does this Lenovo SSD include?
The Lenovo 5400 PRO SSD comes with a one-year limited warranty that includes customer-replaceable unit (CRU) service. This means if the drive fails within the warranty period, Lenovo provides a replacement unit that customers can install themselves, minimizing server downtime. The warranty covers manufacturing defects and ensures the drive meets its published specifications for the duration of the coverage period.
