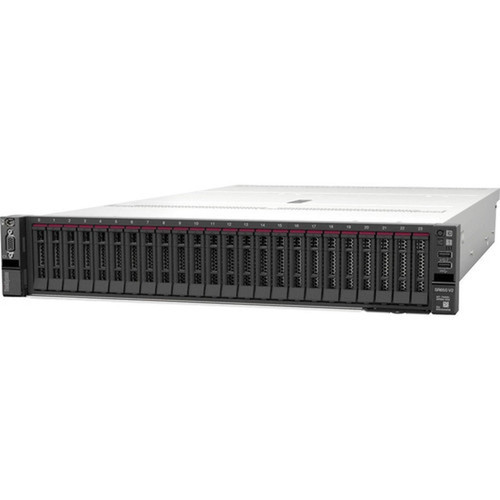

Lenovo 7Z73A06FNA ThinkSystem SR650 V2 2U Rack Server - 1x Xeon Silver 4314 2.40GHz - 32GB RAM - 12Gb/s SAS/SATA - 750W PSU
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SR650 V2 leverages Intel's C621A chipset to support dual-processor configurations, though this specific model ships with one Intel Xeon Silver 4314 processor installed. The 16-core CPU operates at 2.40GHz with 24MB of L3 cache, providing substantial parallel processing capability for multi-threaded applications. Memory architecture supports up to 32 TruDDR4 DIMM slots running at 3200MHz, with ECC and registered buffering for data integrity in mission-critical environments.
Storage connectivity is handled by a 12Gb/s SAS/SATA controller that supports RAID configurations for data protection. While no drives are pre-installed, the controller provides flexible connectivity for both SAS and SATA storage devices. Network connectivity includes a single Gigabit Ethernet port, with six USB ports (including one USB 2.0) and VGA output for local management. The XCC remote management controller enables out-of-band administration for comprehensive system monitoring and control.
Key Product Advantages
The ThinkSystem SR650 V2 delivers enterprise-grade reliability with features designed for continuous operation and easy maintenance. The hot-swappable power supply design allows for replacement without server downtime, while support for dual power supplies provides redundancy options for critical deployments. Security is enhanced through multiple layers including chassis intrusion detection, power-on and administrator passwords, and TPM 2.0 hardware security.
Memory Scalability
With 32 memory slots supporting up to 2TB of TruDDR4, the SR650 V2 offers exceptional memory expansion potential for memory-intensive applications and virtualization workloads.
- ECC protection for data integrity
- Registered buffering for stability
- 3200MHz clock speed
Storage Flexibility
The 12Gb/s SAS/SATA controller supports both interface types with RAID capabilities, allowing organizations to mix drive technologies based on performance and capacity requirements.
- RAID support for data protection
- 12Gb/s throughput
- SAS and SATA compatibility
Enterprise Management
XCC remote management provides comprehensive out-of-band control including power management, hardware monitoring, and virtual media support for remote OS installation and maintenance.
- Remote power control
- Hardware health monitoring
- Virtual media support
Deployment / Use Cases
The SR650 V2 is well-suited for medium-density virtualization environments where its 16-core processor and substantial memory capacity can host multiple virtual machines efficiently. The server's storage flexibility makes it appropriate for file and print services, departmental applications, or as a host for business databases requiring reliable performance.
In infrastructure roles, this server can function as a domain controller, application server, or web server for small to medium businesses. The 2U form factor optimizes rack space utilization while providing room for storage expansion. Organizations requiring high availability can leverage the dual power supply support and hot-swappable components to maintain service continuity during maintenance operations.
Virtualization Host
With 16 processor cores and support for up to 2TB of memory, the SR650 V2 can efficiently run multiple virtual machines for server consolidation projects.
Business Application Server
The balanced compute and memory configuration supports database applications, ERP systems, and other business-critical software requiring reliable 24/7 operation.
Physical Profile
The SR650 V2 occupies 2U (3.4 inches) of vertical space in standard 19-inch racks, with dimensions of 17.5 inches wide by 30.1 inches deep. This compact footprint maximizes rack density while providing sufficient internal space for component cooling and future expansion. Weighing approximately 85.5 pounds, the server includes integrated handles and is designed for easy installation with the included sliding rail kit.
- Width
- 17.50" (444.50 mm)
- Depth
- 30.10" (764.54 mm)
- Height
- 2U
- Weight
- 85.54 lb (38800 g)
What's in the Box
This server ships complete with all necessary hardware for immediate rack installation and operation.
Highlights
- Intel Xeon Silver 4314 2.40GHz processor with 16 cores and 24MB cache
- 32GB TruDDR4 ECC registered memory (expandable to 2TB across 32 slots)
- 12Gb/s SAS/SATA controller with RAID support for storage flexibility
- 750W hot-swappable power supply with support for dual PSU redundancy
- 2U rack form factor with sliding rail kit included for easy installation
- XCC remote management for comprehensive out-of-band administration
- Support for Windows Server and multiple Linux distributions
- Enterprise security features including TPM 2.0 and chassis intrusion detection
- ENERGY STAR 3.0 and EPEAT Bronze certified for energy efficiency
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7Z73A06FNA |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR650 V2 |
| Product Model | 7Z73A06FNA |
| Product Name | ThinkSystem SR650 V2 7Z73A06FNA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Silver |
| Processor Generation | 3rd Gen |
| Processor Model | 4314 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 2.40 GHz |
| Cache | 24 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Storage | |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial ATA/600,12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| VGA | Yes |
| Remote Management | Yes |
| Remote Management Controller | XCC remote management |
| Operating System | |
| Operating System Supported | Windows Server 2016,Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 7.9,Red Hat Enterprise Linux 8.2,Red Hat Enterprise Linux 8.3,Red Hat Enterprise Linux 8.4,Red Hat Enterprise Linux 8.5,SUSE Linux Enterprise Server 12 SP5,SUSE Linux Enterprise Server 15 SP2,SUSE Linux Enterprise Server 15 SP3 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 750 W |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Miscellaneous | |
| Package Contents | ThinkSystem SR650 V2 7Z73A06FNA Server Sliding Rail Kit |
| Security Features | Chassis Intrusion Switch Power-on Password Administrator's Password Trusted Platform Module (TPM), supporting TPM 2.0 |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 30.10" (764.54 mm) |
| Weight (Approximate) | 85.54 lb (38800 g) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor is installed in this Lenovo SR650 V2 server?
This configuration includes one Intel Xeon Silver 4314 processor operating at 2.40GHz. This 3rd Gen Xeon Scalable processor features 16 cores (hexadeca-core) with 24MB of L3 cache, providing substantial parallel processing capability for virtualization, database applications, and general business computing workloads.
How much memory does this server support and what type is installed?
The server supports up to 2TB of memory across 32 DIMM slots. This specific configuration ships with 32GB of TruDDR4 ECC registered memory installed in one slot, operating at 3200MHz. The ECC (Error Correcting Code) and registered buffering provide enhanced data integrity and stability for mission-critical applications.
What storage controller does the SR650 V2 include?
The server includes a 12Gb/s SAS/SATA controller that supports both Serial ATA/600 and 12Gb/s SAS interfaces. This controller provides RAID support for data protection configurations, though no drives are pre-installed in this configuration. The dual-interface support allows organizations to mix SAS and SATA drives based on performance and capacity requirements.
Can I add a second processor to this server?
Yes, the SR650 V2 supports dual-processor configurations. While this specific model ships with one Intel Xeon Silver 4314 processor installed, the server has a second processor socket available for expansion. Adding a second identical processor would double the core count to 32 cores and increase overall processing capability for more demanding workloads.
What power supply configuration does this server use?
This configuration includes one 750W hot-swappable power supply. The server supports dual power supplies for redundancy, allowing you to add a second 750W unit for failover protection. The hot-swappable design enables replacement without powering down the server, supporting continuous operation in enterprise environments.
What operating systems are supported by this Lenovo server?
The SR650 V2 supports multiple enterprise operating systems including Windows Server 2016, 2019, and 2022, along with Red Hat Enterprise Linux versions 7.9, 8.2, 8.3, 8.4, and 8.5, plus SUSE Linux Enterprise Server 12 SP5 and 15 SP2-3. This comprehensive OS support ensures compatibility with most enterprise environments and provides flexibility for organizations with specific distribution requirements.
