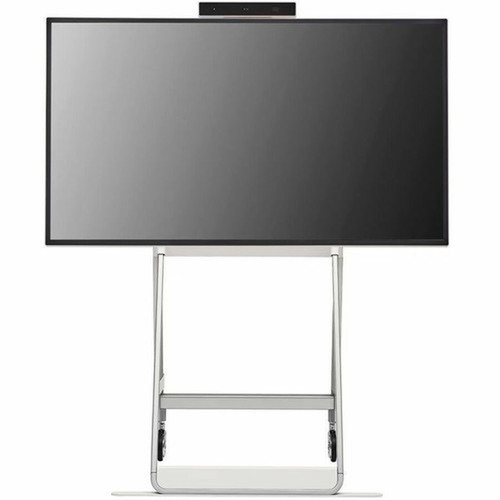

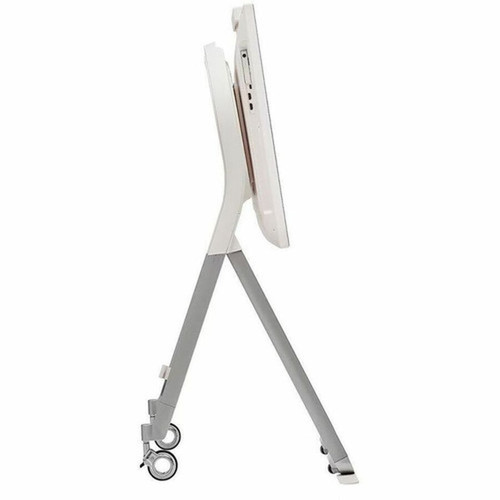

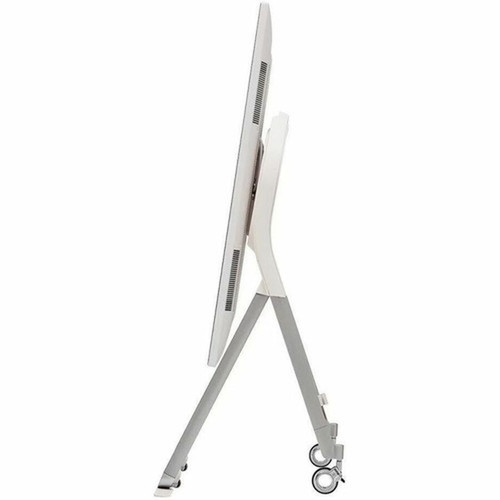

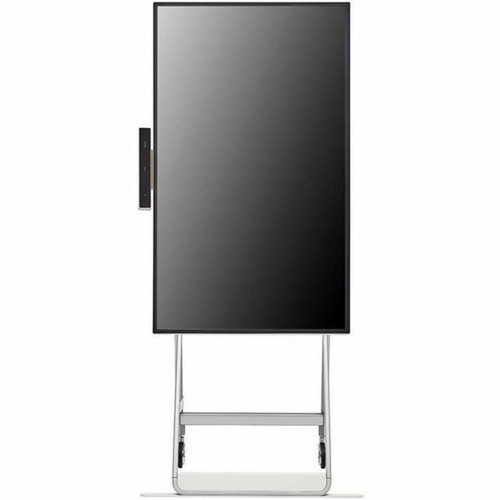

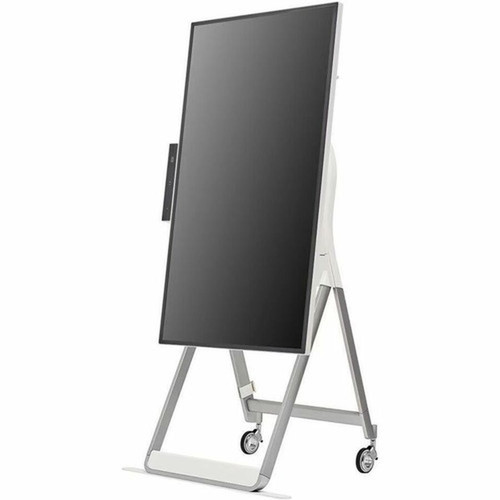

LG 43HT3WN-M Digital Signage Display - 43" (1092.20 mm) LCD - Ultra In-plane Switching (U-IPS) Technology - Touchscreen Ryzen R1505G - (43HT3WN-M.AUS)
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
- 43HT3WN-M Digital Signage Display
- HDMI Cable
- Remote Controller
- Touch Pen
- Pen Tip
- Manual
- Regulation Book
- Warranty Card
- IG
Panel Technology: Ultra In-plane Switching (U-IPS) Technology
Maximum Heat Generation: 59.1 kJ
Processor Type: Ryzen
Processor Model: R1505G
Standard Memory: 8 GB
Memory Technology: DDR SDRAM
Solid State Drive Capacity: 256 GB
Number of Screens: 1
Viewable Screen Size: 43" (1092.20 mm)
Display Screen Type: LCD
Multi-touch Screen: Yes
Response Time: 9 ms
Touchscreen: Yes
Display Resolution: 3840 x 2160
Orientation: Landscape/Portrait
Graphics Controller Model: Radeon Vega
Scan Format: 2160p
Native Contrast Ratio: 1,000:1
Brightness: 350 cd/m²
Color Gamut: 72% NTSC
Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes
USB: Yes
HDMI: Yes
DisplayPort: Yes
Number of HDMI Inputs: 2
Number of DisplayPorts: 2
DisplayPort Output: Yes
Number of HDMI Input (Side): 1
Number of Network (RJ-45) Ports: 1
Number of DisplayPort Outputs: 1
Operating System: Windows 10 IoT Enterprise
Input Voltage: 120 V AC,230 V AC
Bezel Color: Black
VESA Mount Standard: 200 x 200
Height: 23.85" (605.80 mm)
Width: 38.31" (973.20 mm)
Depth: 1.94" (49.40 mm)
Weight (Approximate): 28 lb (12700 g)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%
Package Contents:
Application/Usage: Meeting Room,Collaboration,Indoor,Public Space,Office,Conference Room
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
- Resolution : 4K Ultra HD (3,840 × 2,160)
- Brightness : 350 nit
- Camera : 2K Full HD (1,920 × 1,080), 88º FoV
- Sound : 2.0 Channel (10W + 10W)
- Microphone : 3m Pickup Range
- Windows 10 IoT Enterprise (Basic)
[custom-specifications]
| Specifications | |
| Manufacturer | LG Electronics |
| Manufacturer Part Number | 43HT3WN-M.AUS |
| Manufacturer Website Address | https://solutions.lg.com/us |
| Brand Name | LG |
| Product Line | -- Request New -- |
| Product Model | 43HT3WN-M |
| Product Name | 43HT3WN-M Digital Signage Display |
| Product Type | Digital Signage Display |
| Technical Information | |
| Panel Technology | Ultra In-plane Switching (U-IPS) Technology |
| Maximum Heat Generation | 59.1 kJ |
| Processor & Chipset | |
| Processor Type | Ryzen |
| Processor Model | R1505G |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | DDR SDRAM |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Display & Graphics | |
| Number of Screens | 1 |
| Viewable Screen Size | 43" (1092.20 mm) |
| Display Screen Type | LCD |
| Multi-touch Screen | Yes |
| Response Time | 9 ms |
| Touchscreen | Yes |
| Display Resolution | 3840 x 2160 |
| Orientation | Landscape/Portrait |
| Graphics Controller Model | Radeon Vega |
| Video | |
| Scan Format | 2160p |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 350 cd/m² |
| Color Gamut | 72% NTSC |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 2 |
| Number of DisplayPorts | 2 |
| DisplayPort Output | Yes |
| Number of HDMI Input (Side) | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of DisplayPort Outputs | 1 |
| Software | |
| Operating System | Windows 10 IoT Enterprise |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Bezel Color | Black |
| VESA Mount Standard | 200 x 200 |
| Height | 23.85" (605.80 mm) |
| Width | 38.31" (973.20 mm) |
| Depth | 1.94" (49.40 mm) |
| Weight (Approximate) | 28 lb (12700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 80% |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Meeting Room,Collaboration,Indoor,Public Space,Office,Conference Room |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
User-Manual
Additional-pdf2
[/custom-user-manual]
