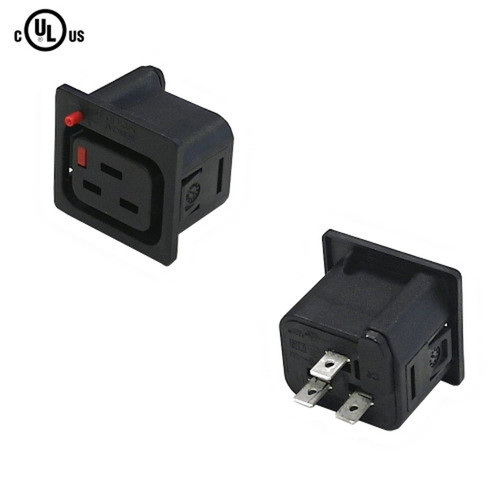

Locking Receptacle With Terminals And Panel Mount Black Terminal Thickness FN-PW-SCL-C19
SKU:
FN-PW-SCL-C19
(No reviews)
Write a Review
Write a Review
Fleet Network
Locking Receptacle With Terminals And Panel Mount Black Terminal Thickness FN-PW-SCL-C19
$8.00
Warranty Information:
Covered by Manufacturer
Condition:
New
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Product Features
Description
This power outlet has a locking female C19 connector on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C20 power cable to the locking C19 power outlet. Compatible with any C20 cable.
Physical Characteristics | |
|---|---|
| Connection Type | Snap-in Mounting From Front |
| Color | Black |
| Material (Body) | Thermoplastic UL94V-0 |
| Connector Plating | Nickel |
| Rating | 16A/250VAC |
| Insulation Resistance | 10M (500VDC, 1Min.) |
| Dielectric Strength | 2KV (50Hz 1 Min) to Accessible Surfaces |
| Panel Mount | Yes |
| Panel Thickness | Black & White IEC320 Snap-in 1mm or 1.5mm |
| Solder/QC Dimensions | 6.3 x 0.8mm |
Connectors | |
| C19 | Female |
| Solder/Quick Connect | Male |
Approvals | |
| Certification | c(UL)us |
Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.05 lbs [0.02kg] |
Volume Discounts
| Qty | Price | Available |
|---|
Locking Receptacle With Terminals And Panel Mount Black Terminal Thickness FN-PW-SCL-C19
$8.00
Available & Ready to Ship
