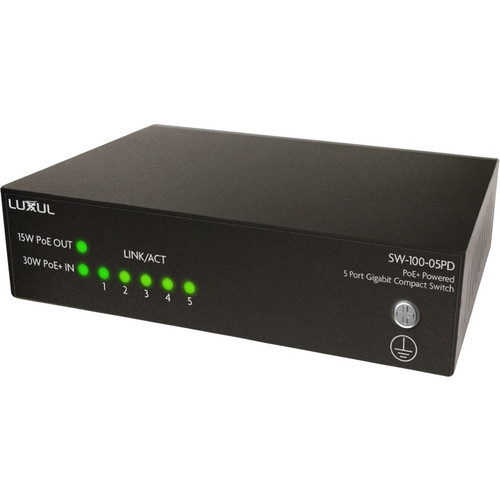

Luxul SW-100-05PD 5-Port Gigabit Multi-Mount Switch with PoE+ - Layer 2 Managed - 15W PoE Budget - Desktop Form Factor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The SW-100-05PD operates as a Layer 2 managed switch, providing advanced networking capabilities such as IGMP snooping for efficient multicast traffic handling, port mirroring for network monitoring and troubleshooting, and spanning tree protocol for loop prevention in redundant network topologies. These features ensure reliable and optimized network performance in managed environments.
With a total PoE budget of 15 watts, the switch can deliver power to PoE and PoE+ devices, supporting up to 25.5 watts per port on the PoE+ port. The low power consumption of 5.80 watts makes it an energy-efficient choice for continuous operation, reducing operational costs and environmental impact.
Relevant factors for this section include Total Number of Network Ports, Uplink Port, Port/Expansion Slot Details, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch stands out with its combination of managed features, PoE+ capability, and flexible mounting options, providing a robust solution for small-scale network expansions.
Versatile Power Delivery
The PoE+ port supplies both data and up to 25.5 watts of power over a single Ethernet cable, simplifying installations in locations without accessible power outlets and reducing cable clutter.
- Supports PoE and PoE+ devices
- 15W total PoE budget
- Reduces need for additional power adapters
Advanced Layer 2 Management
Includes IGMP snooping, port mirroring, and spanning tree protocol, offering greater control over network traffic, enhanced security, and improved reliability for managed network environments.
- IGMP snooping for efficient multicast
- Port mirroring for monitoring
- Spanning tree for loop prevention
Deployment / Use Cases
The Luxul SW-100-05PD is well-suited for scenarios requiring additional network ports with power delivery in compact spaces. Its desktop form factor and multi-mount options make it easy to integrate into existing setups without dedicated rack space.
Common applications include small office networks where you need to connect computers, printers, and IP phones while powering devices like wireless access points or security cameras. It's also ideal for retail point-of-sale systems, home offices, or classroom environments that benefit from managed switching features and PoE support.
Small Office Networking
Expand network connectivity for multiple devices while powering VoIP phones and Wi-Fi access points, reducing cable management and improving workspace organization.
Retail or Hospitality
Deploy in countertop or wall-mounted configurations to support POS systems, digital signage, and surveillance cameras with reliable Gigabit speeds and PoE convenience.
Physical Profile
Measuring 3.90 inches in width and length, and 1 inch in height, this switch has a compact desktop footprint that fits easily on desks, shelves, or mounted surfaces. The approximate weight of 8 ounces ensures it stays secure in various mounting orientations without adding significant bulk.
The included mounting wings with keyhole mounts, rubber feet, and magnetic mounting system provide multiple installation options, allowing for secure placement on walls, under desks, or on metal surfaces, adapting to your specific space requirements.
- Width
- 3.90" (99.06 mm)
- Height
- 1" (25.40 mm)
- Weight
- 8 oz (226.796185 g)
- Length
- 3.90" (99.06 mm)
What's in the Box
The package includes all necessary components for immediate deployment and flexible mounting.
Highlights
- 5 Gigabit Ethernet ports for connecting multiple devices with high-speed data transfer
- PoE+ port delivers data and up to 25.5W of power over a single cable
- Layer 2 managed switch with IGMP snooping, port mirroring, and spanning tree protocol
- 15W total PoE budget supports powering compatible devices like IP phones and access points
- Low power consumption of 5.80W for energy-efficient operation
- Compact desktop form factor with dimensions of 3.90" x 3.90" x 1"
- Multi-mount design includes keyhole mounts, rubber feet, and magnetic mounting system
- Supports twisted-pair cabling for reliable connections up to 100 meters
- 3-year limited warranty for added peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | SW-100-05PD |
| Brand Name | Luxul |
| Product Model | SW-100-05PD |
| Product Name | 5 Port Gb Multi-Mount Switch w/ PD Power |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Uplink Port | Yes |

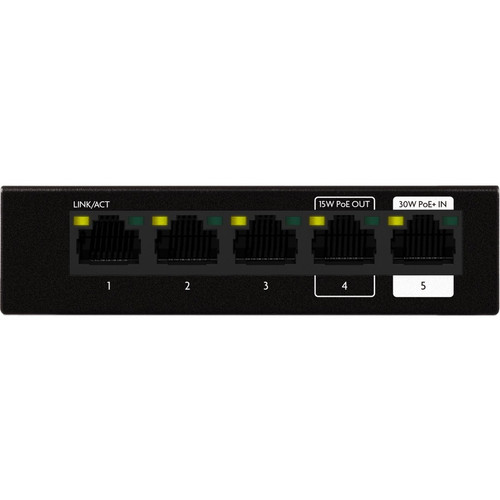

| Port/Expansion Slot Details | 3 x Gigabit Ethernet Network,1 x Gigabit Ethernet PoE,1 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 15 W |
| Power Source | PoE+ |
| Power Consumption | 5.80 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1" (25.40 mm) |
| Width | 3.90" (99.06 mm) |
| Length | 3.90" (99.06 mm) |
| Weight (Approximate) | 8 oz (226.796185 g) |
| Miscellaneous | |
| Package Contents | 5 Port Gb Multi-Mount Switch w/ PD Power Mounting Wings w/ Keyhole Mounts Rubber Feet Magnetic Mounting System Quick Install Guide |
| Warranty | |
| Limited Warranty | 3 Year |
FAQ
How many PoE ports does this switch have?
The Luxul SW-100-05PD includes two PoE-capable ports: one Gigabit Ethernet PoE port and one Gigabit Ethernet PoE+ port. The PoE+ port can deliver up to 25.5 watts of power, while the standard PoE port provides lower power levels, together supporting a total PoE budget of 15 watts for connected devices.
What Layer 2 features are included?
This switch offers advanced Layer 2 managed features such as IGMP snooping, which optimizes multicast traffic flow; port mirroring, allowing you to monitor network traffic for troubleshooting; and spanning tree protocol, which prevents network loops in redundant configurations. These features provide greater control and reliability in managed network environments.
Can this switch be mounted on a wall?
Yes, the switch includes mounting wings with keyhole mounts, rubber feet, and a magnetic mounting system, enabling versatile installation options. You can securely mount it on walls, place it on desks with rubber feet, or attach it to metal surfaces using the magnetic mount, making it adaptable to various deployment scenarios.
What is the power consumption of this switch?
The Luxul SW-100-05PD has a power consumption of 5.80 watts, which is relatively low for a managed switch with PoE support. This energy-efficient design helps reduce operational costs and environmental impact, making it suitable for continuous use in small network setups.
Does this switch support Gigabit speeds?
Yes, all five ports support Gigabit Ethernet technology (10/100/1000Base-T), providing ultra-fast network speeds up to 1000 Mbps. This ensures high-performance data transfer for connected devices like computers, printers, and networked storage, supporting efficient network operations.
What is included in the warranty?
The Luxul SW-100-05PD comes with a 3-year limited warranty, covering defects in materials and workmanship under normal use. This warranty provides added assurance for long-term reliability, typical for professional networking equipment from the Luxul brand.
