Manhattan 177672 Long Range CCD Barcode Scanner - 500 scan/s - 19.69" (500 mm) Scan Distance - 1D - USB - Black
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This scanner utilizes a CCD (Charge-Coupled Device) image sensor, which offers reliable performance across a wide range of lighting conditions, supporting a maximum ambient light tolerance of 10,000 lux. It is designed exclusively for 1D barcode scanning, supporting an extensive array of symbologies including UPC/EAN/JAN, Code 39, Code 128, Code 93, Interleaved 2 of 5, Codabar, MSI/Plessey, GS1 DataBar (RSS Code), and many others, ensuring compatibility with virtually all common 1D barcode formats used in commercial and industrial applications.
Relevant factors for this section include Connectivity Technology, Scanning Capability, Barcode Symbology Supported, Host Interface. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Manhattan 177672 scanner combines speed, range, and durability to deliver tangible productivity gains in scanning-intensive operations.
High-Speed Scanning
At 500 scans per second, this scanner drastically reduces processing time, enabling faster checkout lines, quicker inventory counts, and more efficient data entry workflows.
- Minimizes bottlenecks in high-volume environments
- Supports rapid batch scanning operations
Extended Reach
The 19.69-inch (500 mm) scanning distance allows users to scan items without needing to bring the scanner directly to the barcode, improving ergonomics and enabling scanning of large or awkwardly positioned items.
- Reduces operator fatigue during extended use
- Ideal for scanning pallets, shelves, or large packages
Robust Compatibility
With support for over a dozen 1D barcode symbologies and plug-and-play USB connectivity for PC and Mac systems, this scanner integrates seamlessly into existing point-of-sale, inventory management, and asset tracking setups.
- Eliminates compatibility concerns with common barcode types
- Simplifies deployment with no additional drivers required for most operating systems
Deployment / Use Cases
This scanner is purpose-built for environments where speed, accuracy, and reliability are non-negotiable. Its long-range capability and high scan rate make it particularly well-suited for applications where items are not easily brought to a fixed scanning point.
In retail settings, it accelerates checkout processes by allowing cashiers to quickly scan items without precise alignment. In warehouses and distribution centers, it facilitates efficient inventory management and order picking by enabling workers to scan barcodes on shelves or pallets from a comfortable distance. For manufacturing and logistics, its robust symbology support ensures accurate tracking of parts, shipments, and assets throughout the supply chain.
Retail Point of Sale
Deploy at checkout counters to speed up transaction times and improve customer service, especially for bulky items or high-traffic periods.
Warehouse Inventory Management
Use for cycle counts, receiving, and picking operations where scanning items on high shelves or pallets without a ladder enhances safety and efficiency.
Physical Profile

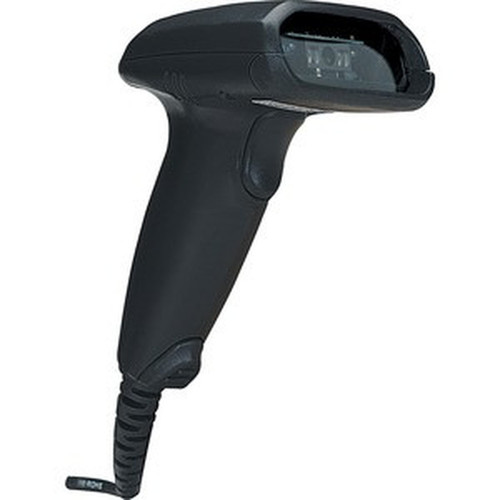

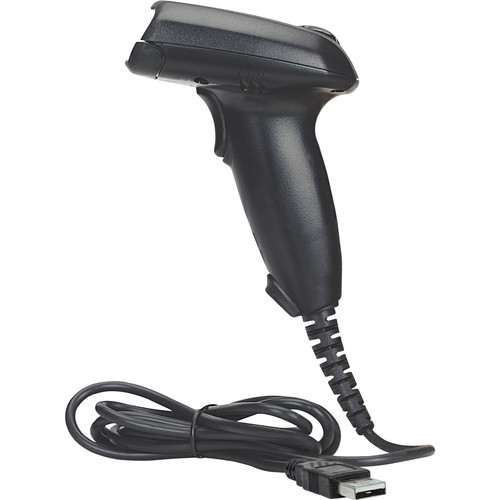

The scanner features a compact, handheld form factor measuring 5.51" (140 mm) in height, 2.76" (70 mm) in width, and 3.54" (90 mm) in depth, with a lightweight design of just 4.06 ounces (115 grams). Its ergonomic shape and balanced weight distribution ensure comfortable use during extended shifts, while the durable black housing provides a professional appearance and resistance to everyday wear and tear.
- Width
- 2.76" (70 mm)
- Depth
- 3.54" (90 mm)
- Height
- 5.51" (140 mm)
- Weight
- 4.06 oz (115 g)
Highlights
- Scans at 500 scans per second for high-speed data capture
- Long-range scanning up to 19.69 inches (500 mm) for flexible operation
- CCD image sensor ensures reliable performance in various lighting conditions
- Supports a wide range of 1D barcode symbologies for broad compatibility
- USB cable connectivity for simple plug-and-play setup with PC or Mac
- Handheld form factor with lightweight design for ergonomic use
- Maximum ambient light tolerance of 10,000 lux for outdoor or bright indoor use
- Black color provides a professional, durable finish
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 177672 |
| Brand Name | Manhattan |
| Product Model | 177672 |
| Product Name | Long Range CCD Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D |
| Barcode Symbology Supported | UPC/EAN/JAN & Addon 2/5 Code 39 Code 39 Full ASCII Code 11 Matrix 25 Code 128 Code 93 Interleave 25 Industrial 25 Codabar / MW7 MSI / PLESSEY China Postage Code 2 of 6 LCD25 Telepen GS1 DataBar (RSS Code) |
| Image Sensor Type | CCD |
| Scan Rate | 500 scan/s |
| Scanner Range | Long Range |
| Scanning Distance | 19.69" (500 mm) |
| Maximum Ambient Light | 10000 lux |
| Interfaces/Ports | |
| Host Interface | USB |
| Physical Characteristics | |
| Form Factor | Handheld |
| Product Color | Black |
| Height | 5.51" (140 mm) |
| Width | 2.76" (70 mm) |
| Depth | 3.54" (90 mm) |
| Weight (Approximate) | 4.06 oz (115 g) |
| Miscellaneous | |
| Platform Supported | PC,Mac |
User Manual
FAQ
What is the maximum scanning distance for this barcode scanner?
The Manhattan 177672 scanner has a maximum scanning distance of 19.69 inches (500 mm). This long-range capability allows operators to scan barcodes without bringing the scanner into direct contact with the item, making it ideal for scanning large packages, items on high shelves, or pallets in warehouse environments, thereby improving ergonomics and workflow efficiency.
How fast does this scanner capture barcodes?
This scanner captures barcodes at a rate of 500 scans per second. This high speed minimizes processing delays, enabling rapid data entry in high-volume settings such as retail checkouts, inventory management, and logistics, where quick scanning is essential to maintain productivity and reduce customer wait times.
What types of barcodes does this scanner support?
The scanner supports 1D barcode symbologies, including UPC/EAN/JAN, Code 39, Code 128, Code 93, Interleaved 2 of 5, Codabar, MSI/Plessey, GS1 DataBar (RSS Code), and several others. This extensive compatibility ensures it can read virtually all common 1D barcodes used in retail, industrial, and logistics applications, providing reliable performance across diverse use cases.
What connectivity options are available for this scanner?
The scanner features USB cable connectivity, offering a reliable, plug-and-play connection to PC or Mac workstations. This wired setup ensures stable data transmission without interference, making it suitable for fixed-point scanning applications where the scanner is directly associated with a computer, such as at point-of-sale terminals or inventory stations.
Is this scanner compatible with both Windows and macOS?
Yes, the scanner is compatible with PC and Mac platforms. It uses standard USB HID (Human Interface Device) protocols, which typically allow for plug-and-play operation without requiring additional drivers on most modern operating systems, simplifying deployment in mixed-environment workplaces or for users who switch between Windows and macOS devices.
What are the physical dimensions and weight of this scanner?
The scanner measures 5.51 inches (140 mm) in height, 2.76 inches (70 mm) in width, and 3.54 inches (90 mm) in depth, with an approximate weight of 4.06 ounces (115 grams). Its compact, handheld design and lightweight construction ensure comfortable use during extended periods, reducing operator fatigue in busy scanning environments like retail stores or warehouses.
