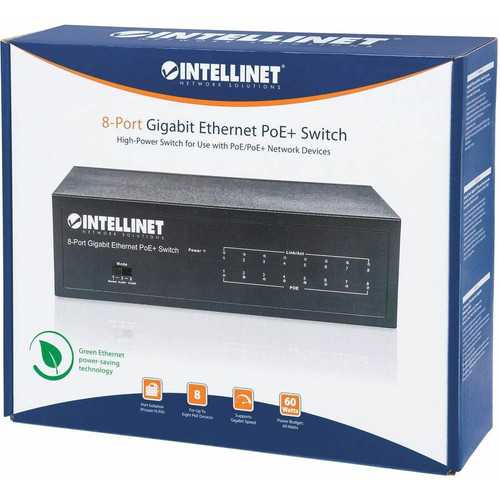

Manhattan 561204 8-Port Gigabit Ethernet PoE+ Switch - Layer 2 Desktop
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Manhattan switch operates as a Layer 2 device with a complete feature set including IGMP snooping, port mirroring, and spanning tree protocol support. The eight Gigabit Ethernet ports deliver 10/100/1000Base-T connectivity with auto-negotiation and auto-MDI/MDIX functionality for simplified cable management.
Power delivery is handled through an external power adapter, with each PoE+ port capable of delivering up to 30 watts per port to compatible devices. The switch does not support redundant power supplies or modular expansion, positioning it as a fixed-configuration solution for stable network environments.
Relevant factors for this section include Total Number of Network Ports, Modular, Stack Port, Media Type Supported. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This switch delivers practical advantages for small business and workgroup networking through its combination of PoE+ support, Layer 2 features, and compact desktop design.
PoE+ Power Delivery
All eight ports support Power over Ethernet Plus, eliminating the need for separate power adapters for connected devices and simplifying cable management.
- Delivers up to 30W per port
- Powers IP phones, cameras, and access points
- Reduces cable clutter
Layer 2 Feature Set
Advanced switching capabilities including IGMP snooping for multicast traffic optimization, port mirroring for network monitoring, and spanning tree for loop prevention.
- IGMP snooping support
- Port mirroring capability
- Spanning tree protocol
Desktop Deployment Ready
Compact dimensions and lightweight design make this switch ideal for placement on desks, shelves, or countertops without requiring rack mounting hardware.
- No rack mounting required
- Space-efficient footprint
- Easy placement flexibility
Deployment / Use Cases
The Manhattan 561204 switch is designed for environments where space is limited but reliable networking with power delivery is essential. Its desktop form factor and PoE+ capabilities make it particularly suitable for small office deployments, retail point-of-sale systems, and workgroup networking applications.
In retail environments, this switch can power and connect multiple security cameras, digital signage displays, and point-of-sale terminals from a central location. For small offices, it provides the connectivity backbone for IP phone systems, wireless access points, and desktop computers while maintaining a minimal physical footprint on desks or shelves.
Small Office Networking
Connect computers, printers, and VoIP phones while powering wireless access points and security cameras through PoE+ ports.
Retail & Hospitality
Support point-of-sale systems, digital signage, and security infrastructure with a compact switch that fits behind counters or under desks.
Physical Profile
Measuring 6.10 inches wide by 4.65 inches deep by 1.81 inches tall (155 × 118 × 46 mm), this switch maintains a compact footprint suitable for desktop placement. The 2.05-pound (930 g) weight ensures stability without being cumbersome, while the desktop form factor eliminates the need for rack ears or mounting hardware. The switch features a durable construction compliant with RoHS environmental standards.
- Width
- 6.10" (155 mm)
- Height
- 1.81" (46 mm)
- Weight
- 2.05 lb (930 g)
- Length
- 4.65" (118 mm)
What's in the Box
The switch ships complete with all necessary components for immediate deployment.
Highlights
- 8 Gigabit Ethernet ports with PoE+ support for simultaneous data and power delivery
- Layer 2 switching with IGMP snooping, port mirroring, and spanning tree protocol
- Desktop form factor ideal for space-constrained deployments outside wiring closets
- 10/100/1000Base-T auto-negotiation for compatibility with existing network equipment
- Supports twisted pair cabling for cost-effective installations up to 100 meters
- Compact dimensions (6.10" × 4.65" × 1.81") for flexible placement options
- External power adapter simplifies installation and replacement
- 3-year limited warranty for long-term reliability assurance
- RoHS compliant for environmentally responsible manufacturing
- Includes complete documentation and accessories for immediate deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | IC INTRACOM |
| Manufacturer Part Number | 561204 |
| Brand Name | Manhattan |
| Product Model | 561204 |
| Product Name | 8-Port Gigabit Ethernet PoE+ Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE+ |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Power Description | |
| Power Source | Power Adapter |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.81" (46 mm) |
| Width | 6.10" (155 mm) |
| Length | 4.65" (118 mm) |
| Weight (Approximate) | 2.05 lb (930 g) |
| Miscellaneous | |
| Package Contents | 8-Port Gigabit PoE+ Switch Power Adapter Power Cable User Manual |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many devices can this switch power simultaneously using PoE+?
All eight ports on the Manhattan 561204 switch support Power over Ethernet Plus (PoE+), meaning you can power up to eight compatible devices simultaneously. Each port can deliver up to 30 watts of power, sufficient for devices like IP phones, wireless access points, and security cameras. The total power budget is managed by the included external power adapter.
What Layer 2 features does this switch include?
This Layer 2 switch includes IGMP snooping for efficient multicast traffic management, port mirroring for network monitoring and troubleshooting, and spanning tree protocol for preventing network loops. These features provide enhanced network management capabilities beyond basic unmanaged switches while maintaining straightforward operation suitable for small business environments.
Can this switch be rack-mounted?
No, the Manhattan 561204 switch features a desktop form factor and is not designed for rack mounting. Its compact dimensions and lightweight construction make it ideal for placement on desks, shelves, or countertops. This design choice simplifies deployment in environments where rack space is unavailable or unnecessary, such as small offices or retail locations.
What type of cables does this switch support?
The switch supports standard twisted pair Ethernet cables (Cat5e, Cat6, or higher) for network connectivity. It uses 10/100/1000Base-T technology, which is compatible with most modern Ethernet cabling infrastructure. The auto-MDI/MDIX functionality eliminates the need for crossover cables, allowing you to use straight-through cables for all connections.
Does this switch support redundant power supplies?
No, the Manhattan 561204 switch does not support redundant power supplies. It operates from a single external power adapter. This configuration is typical for desktop switches in this class and is suitable for environments where high availability through power redundancy is not a critical requirement.
What is the warranty coverage for this switch?
The Manhattan 561204 switch comes with a 3-year limited warranty from the manufacturer. This warranty covers defects in materials and workmanship under normal use. The switch is also RoHS compliant, meeting environmental standards for hazardous substance restriction. Documentation and support resources are available through the included user manual and manufacturer channels.
