Middle Atlantic UPX-RLNK-1000R-2 NEXSYS Series 1000VA/900W Line-Interactive UPS - 2U Rackmount with RackLink - Pure Sine Wave - LCD Display
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Power Architecture
This line-interactive UPS features automatic voltage regulation (AVR) to correct minor power fluctuations without switching to battery power. The pure sine wave output ensures clean, stable power for servers, networking gear, and other critical equipment.
- 1 kVA/900W capacity
- Pure sine wave output
- 120V AC input
- 110-127V AC output range
Management & Monitoring
The integrated RackLink technology enables centralized management of multiple UPS units, while bank outlet control allows grouping of outlets for coordinated power cycling. Serial connectivity supports integration with network management systems.
- RackLink management

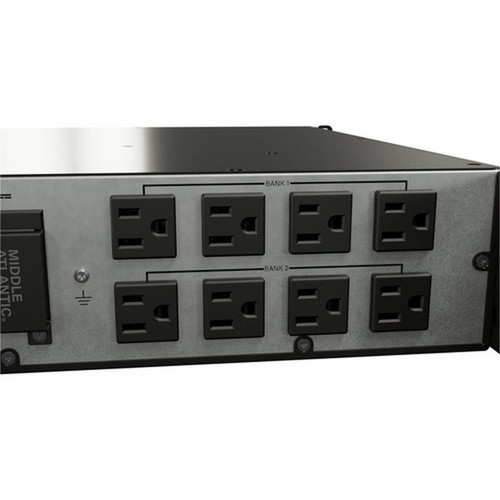

- Bank outlet control
- LCD status display
- Serial port for monitoring
Key Product Advantages
The NEXSYS Series UPS delivers enterprise-grade power protection in a compact 2U form factor, making it ideal for space-constrained rack environments. Its combination of robust power capacity, advanced management features, and reliable performance addresses the core needs of modern IT infrastructure.
Rack-Optimized Design

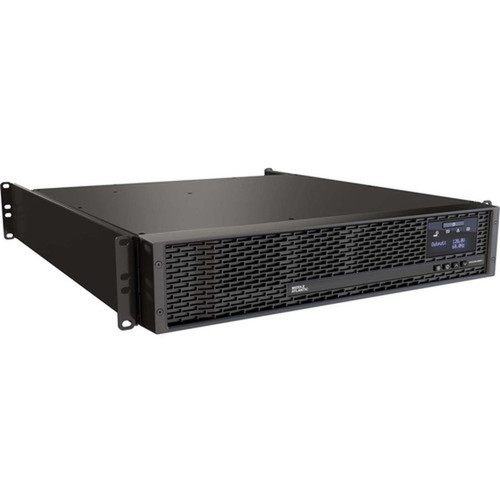

With standard 19-inch rack width and 2U height, this UPS integrates seamlessly into existing rack infrastructure. The front-accessible LCD and controls simplify monitoring and configuration in dense rack environments.
- Standard 19" rack width
- 2U height (3.46")
- Front-accessible controls
- Black finish for professional appearance
Enhanced Reliability
Hot-swappable batteries enable maintenance without system downtime, while the pure sine wave output protects sensitive equipment from power quality issues. Automatic voltage regulation handles common power fluctuations efficiently.
- Hot-swappable battery design
- Pure sine wave output
- Automatic voltage regulation
- 36V DC battery system
Deployment / Use Cases
This UPS is engineered for environments where reliable power backup and rack-optimized form factors are essential. Its 1000VA capacity supports typical server, storage, and networking equipment loads in small to medium deployment scenarios.
The RackLink management capability makes this unit particularly valuable in multi-UPS installations where centralized control and monitoring are required. Bank outlet control enables organized power management for different equipment groups within the rack.
Data Center & Server Room
Protect rack-mounted servers, network switches, and storage arrays from power interruptions and fluctuations. The 2U form factor maximizes rack space utilization while providing essential backup power.
- Rack-mounted server protection
- Network equipment backup
- Storage array power continuity
Network Infrastructure
Ensure uninterrupted operation of critical networking equipment, including switches, routers, and security appliances. The pure sine wave output maintains power quality for sensitive electronics.
- Switch and router protection
- Security appliance backup
- Communication equipment support
Physical Profile
The UPS features a compact 2U rackmount design with dimensions of 3.46" (88 mm) height, 19.02" (483 mm) width, and 15.98" (406 mm) depth. The black finish matches standard rack equipment, while the 44.09 lb (20 kg) weight reflects its robust construction and battery capacity.
Standard NEMA 5-15P plug and NEMA 5-15R receptacles provide familiar connectivity, and the included 6' IEC power cord ensures flexible installation options within the rack environment.
- Width
- 19.02" (483 mm)
- Depth
- 15.98" (406 mm)
- Height
- 3.46" (88 mm)
- Weight
- 44.09 lb (20000 g)
What's in the Box
The package includes all essential components for immediate deployment in rack environments.
Highlights
- 1000VA/900W line-interactive UPS with pure sine wave output
- 2U rackmount form factor for space-efficient deployment
- RackLink technology for centralized management of multiple units
- Bank outlet control for organized power management
- Hot-swappable batteries for maintenance without downtime
- LCD display for real-time status monitoring
- Automatic voltage regulation (AVR) for power conditioning
- Energy Star certified for energy efficiency
- Serial port for monitoring and management integration
- 3-year limited warranty with 2-year battery warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | UPX-RLNK-1000R-2 |
| Brand Name | Middle Atlantic |
| Product Line | NEXSYS |
| Product Name | NEXSYS 1000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Application/Usage | Desktop,Bank |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC,120 V AC,127 V AC |
| Waveform Type | Pure Sine Wave |
| Display & Graphics | |
| Display | LCD |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| DC System Voltage | 36 V DC |
| Hot Swappable | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.46" (88 mm) |
| Width | 19.02" (483 mm) |
| Depth | 15.98" (406 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 44.09 lb (20000 g) |
| Miscellaneous | |
| Package Contents | 1000VA Rack-mountable UPS 6' (1.8m) IEC Power Cord Network Card |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 2 Years Battery |
User Manual
FAQ
What is the power capacity of this UPS?
This Middle Atlantic UPS provides 1000VA (1 kVA) apparent power and 900W real power capacity. This capacity supports typical server, networking, and storage equipment loads in rack environments, delivering reliable backup power during outages and conditioning power during normal operation.
Is this UPS rack-mountable and what size rack space does it require?
Yes, this UPS is designed specifically for rackmount installation. It requires 2U of vertical rack space (3.46 inches/88 mm height) and has standard 19-inch width for compatibility with most server racks. The compact form factor maximizes usable rack space while providing essential power protection.
What type of power output does this UPS provide?
The UPS delivers pure sine wave output, which is essential for sensitive electronic equipment like servers, networking gear, and storage systems. Pure sine wave power ensures compatibility with active PFC power supplies and prevents potential damage or instability that can occur with simulated sine wave outputs.
What management features are included with this UPS?
This UPS includes RackLink technology for centralized management of multiple units and bank outlet control for organizing outlets into logical groups. The front-panel LCD display provides status monitoring, while the serial port enables integration with network management systems for remote monitoring and control.
Are the batteries hot-swappable in this UPS?
Yes, the batteries are hot-swappable, allowing replacement without powering down connected equipment. This feature minimizes downtime during battery maintenance or replacement, which is particularly valuable in always-on environments where continuous operation is critical.
What input and output voltages does this UPS support?
The UPS accepts 120V AC input and provides output voltages of 110V AC, 120V AC, and 127V AC. This voltage range, combined with automatic voltage regulation, ensures stable power delivery to connected equipment despite input voltage fluctuations within the specified operating range.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
