Middle Atlantic UPX-RLNK-1500R-8 NEXSYS Series UPS Battery Backup - 1500VA/1350W Rackmount 2U w/ RackLink - AVR - 8 Outlets - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This UPS operates on a 120V AC input and delivers output voltages of 110V, 120V, or 127V AC with pure sine wave technology, ensuring compatibility with modern power supplies and reducing harmonic distortion. The AVR function corrects minor voltage fluctuations without switching to battery, extending runtime and battery life.
The system includes a 36V DC battery bank with hot-swappable capability, allowing battery replacement without powering down connected equipment. A serial port enables integration with network management systems for monitoring and control, while the LCD offers intuitive access to status, load, and battery information.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The NEXSYS 1500VA UPS provides robust power protection with features tailored for rack deployment and equipment safety. Its combination of capacity, control, and reliability makes it a strong choice for AV installations and server rooms.
RackLink Outlet Control
Individual outlet control via RackLink allows remote power management of connected devices, enabling scheduled reboots, load shedding, and energy savings without physical access.
- Remote outlet on/off
- Scheduled power cycles
- Load monitoring
Pure Sine Wave Output
Delivers clean, stable AC power that matches utility-grade electricity, preventing issues with sensitive electronics like servers, networking gear, and audio/video equipment.
- Reduces harmonic distortion
- Compatible with active PFC power supplies
- Minimizes equipment stress
Hot-Swappable Battery Design
Enables battery replacement without interrupting power to connected loads, maintaining uptime during maintenance and extending system lifespan.
- No downtime for battery swaps
- Easy field service
- Supports continuous operation
Deployment / Use Cases
This UPS is engineered for environments where clean power and rack compatibility are essential. Its 1500VA capacity and eight outlets suit small to medium AV setups, network closets, and edge computing installations.
In audio/video production studios, the pure sine wave output ensures amplifiers, mixers, and digital processors receive stable power without noise or distortion. For IT racks, the 2U form factor and serial management integrate seamlessly with existing infrastructure, providing backup power for switches, routers, and servers during outages.
Audio/Video Equipment Protection
Ideal for protecting amplifiers, digital signage players, video processors, and mixing consoles from power sags, surges, and blackouts in broadcast and production environments.
Network Rack Backup
Provides runtime for network switches, routers, and security appliances in small server rooms or branch offices, maintaining connectivity during power interruptions.
Physical Profile

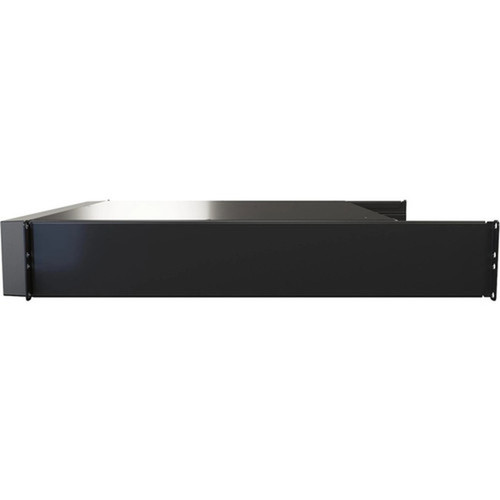

The UPS features a compact 2U rack-mountable design with dimensions of 3.46" H x 19.02" W x 15.98" D, fitting standard 19-inch racks. Its black finish blends with professional AV and IT equipment, while the 44.09 lb weight ensures stability when mounted. The front-panel LCD and controls allow easy access to settings and status without removing the unit from the rack.
- Width
- 19.02" (483 mm)
- Depth
- 15.98" (406 mm)
- Height
- 3.46" (88 mm)
- Weight
- 44.09 lb (20000 g)
What's in the Box
The package includes all necessary components for immediate deployment.
Highlights
- 1500VA/1350W rackmount UPS with AVR and pure sine wave output
- RackLink technology for individual outlet control and remote management

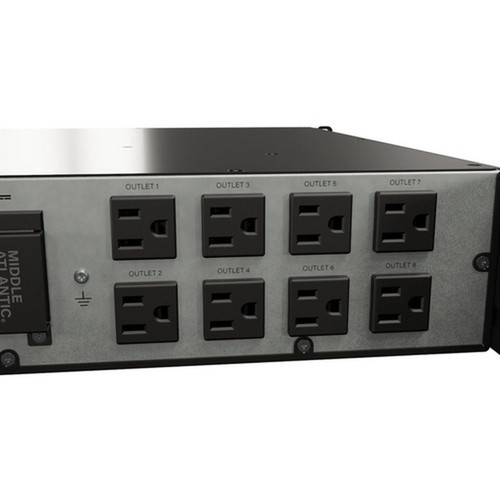

- Eight NEMA 5-15R outlets for multiple device connections
- Hot-swappable battery design for maintenance without downtime
- 2U form factor fits standard 19-inch racks

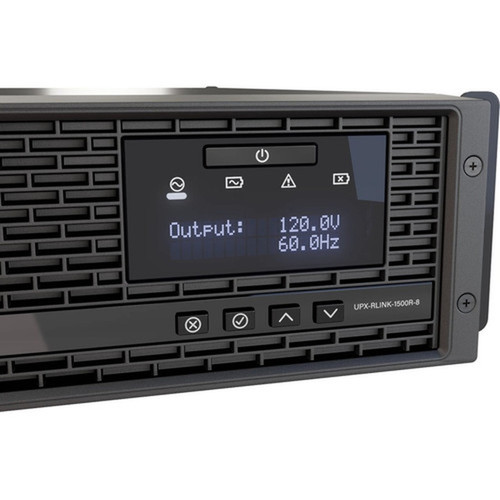

- LCD display for real-time status and configuration
- Serial port enables integration with network management systems
- Energy Star certified for energy efficiency
- 3-year limited warranty with 2-year battery warranty
- RoHS and REACH compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | UPX-RLNK-1500R-8 |
| Brand Name | Middle Atlantic |
| Product Line | NEXSYS |
| Product Name | NEXSYS 1500VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Application/Usage | Audio/Video Equipment |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC,120 V AC,127 V AC |
| Waveform Type | Pure Sine Wave |
| Display & Graphics | |
| Display | LCD |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| DC System Voltage | 36 V DC |
| Hot Swappable | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.46" (88 mm) |
| Width | 19.02" (483 mm) |
| Depth | 15.98" (406 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 44.09 lb (20000 g) |
| Miscellaneous | |
| Package Contents | NEXSYS 1500VA Rack-mountable UPS 6' (1.8m) IEC Power Cord Network Card |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 2 Years Battery |
User Manual
FAQ
What is the power capacity of this UPS?
The UPS has a load capacity of 1500VA (1.50 kVA) and 1350W (1.35 kW), suitable for protecting audio/video equipment, networking gear, and small servers. This capacity provides sufficient backup during power failures to prevent data loss and equipment damage.
How many outlets does this UPS have?
It features eight NEMA 5-15R outlets, allowing multiple devices to be connected simultaneously. The outlets support individual control via RackLink technology for remote management and energy savings.
Is this UPS rack-mountable?
Yes, it is designed for 2U rack installation with a form factor that fits standard 19-inch racks. Dimensions are 3.46" H x 19.02" W x 15.98" D, making it compact for AV and IT rack environments.
Does this UPS have pure sine wave output?
Yes, it delivers pure sine wave output, which provides clean, stable AC power compatible with sensitive electronics like servers and audio equipment. This reduces harmonic distortion and ensures reliable operation.
What is the warranty coverage?
The UPS comes with a 3-year limited warranty, and the battery has a separate 2-year warranty. This coverage includes protection against defects in materials and workmanship under normal use.
Can the battery be replaced without powering down?
Yes, the hot-swappable battery design allows replacement without interrupting power to connected equipment. This feature maintains uptime during maintenance and extends system reliability.
What power capacity is listed for this UPS?
The listed power specification is 1.50 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
