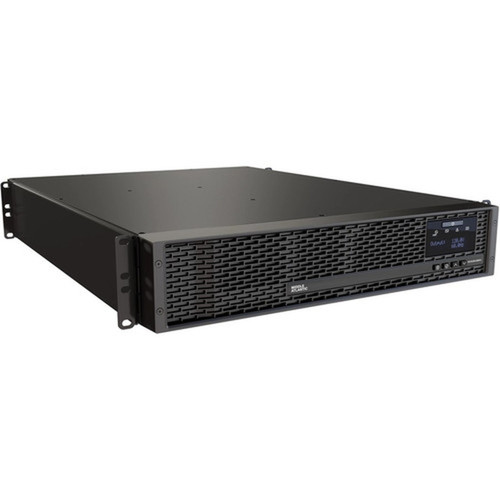

Middle Atlantic UPX-RLNK-2000R-8 NEXSYS Series 2000VA Line-Interactive UPS - 2U Rack-Mountable with AVR - 8 Outlets - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This line-interactive UPS operates with 120 V AC input and delivers clean, regulated output at 110 V AC, 120 V AC, or 127 V AC. The pure sine wave output ensures compatibility with sensitive electronic equipment, including servers, networking gear, and storage systems. The 48 V DC battery system supports hot-swappable replacement, minimizing downtime during maintenance.
The unit includes an LCD panel for at-a-glance status information and a serial port for integration with network management systems. It withstands operating temperatures up to 104°F (40°C) and carries a 3-year limited warranty with 2-year battery coverage.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The NEXSYS Series UPS combines robust power protection with rack-optimized design, making it an ideal choice for IT environments where space and reliability are paramount. Its automatic voltage regulation maintains stable output during common grid fluctuations, extending battery life and reducing wear.
Clean Power Delivery
Pure sine wave output ensures safe operation for active PFC power supplies and sensitive electronics, preventing equipment damage and data corruption.
- Compatible with servers, switches, and storage
- Eliminates harmonic distortion
- Reduces risk of shutdowns
Rack-Ready Design
The 2U form factor fits standard 19-inch racks, while front-accessible controls and hot-swappable batteries simplify installation and maintenance.
- Saves rack space
- Tool-less battery replacement

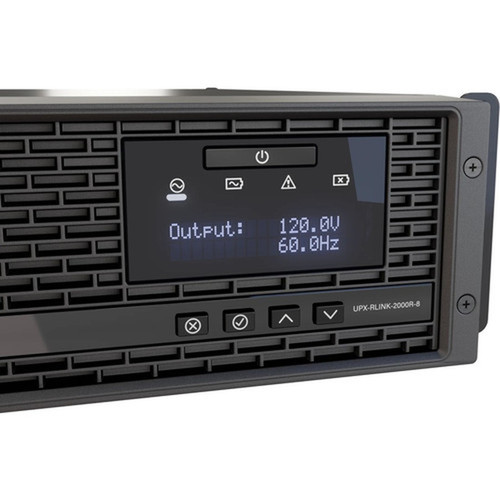

- Front-panel LCD for monitoring
Enhanced Outlet Control

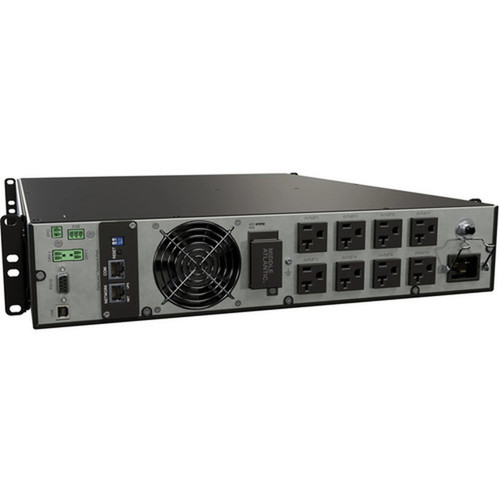

Eight NEMA 5-20R outlets provide ample connectivity, with bank outlet control allowing sequenced shutdowns and reboots via RackLink management.
- Supports multiple devices
- Prevents overloads
- Enables graceful shutdowns
Deployment / Use Cases
This UPS is designed for environments requiring uninterrupted power for rack-mounted infrastructure. Its 2 kVA capacity and pure sine wave output suit mid-density server deployments, network equipment stacks, and telecommunications cabinets.
In data centers, it protects virtualization hosts, storage arrays, and core switches from power anomalies. For broadcast and AV installations, it ensures clean power to sensitive processing gear. The rack-mountable form factor also makes it suitable for edge computing locations and industrial control panels where space is constrained.
Server Room Protection
Safeguard critical servers and storage systems from power sags, surges, and outages, maintaining uptime for business applications.
- Supports 2-3 rack servers
- Provides time for graceful shutdowns
- AVR corrects voltage fluctuations
Network Infrastructure
Keep switches, routers, and firewalls operational during power events, ensuring continuous network connectivity and security.
- Powers PoE switches
- Protects WAN links
- Enables remote management
Physical Profile
The UPS features a black steel chassis measuring 3.46" (88 mm) high, 19.02" (483 mm) wide, and 22.01" (559 mm) deep, occupying 2U of rack space. Its 63.05 lb (28.6 kg) weight ensures stability when mounted, while the standard 19-inch width integrates seamlessly with existing rack infrastructure. The front panel houses the LCD display, status indicators, and control buttons for easy access.
- Width
- 19.02" (483 mm)
- Depth
- 22.01" (559 mm)
- Height
- 3.46" (88 mm)
- Weight
- 63.05 lb (28600 g)
What's in the Box
The package includes the 2000VA rack-mountable UPS unit, a 6-foot (1.8 m) IEC power cord, and a network management card for enhanced monitoring and control.
Highlights
- 2000VA / 1.80 kW line-interactive UPS with automatic voltage regulation (AVR)
- 2U rack-mountable form factor for space-efficient deployment in standard 19-inch racks
- Eight NEMA 5-20R outlets with bank outlet control for flexible power distribution
- Pure sine wave output ensures compatibility with sensitive servers and networking equipment
- Hot-swappable battery modules allow replacement without system downtime
- LCD display provides real-time status monitoring and configuration access

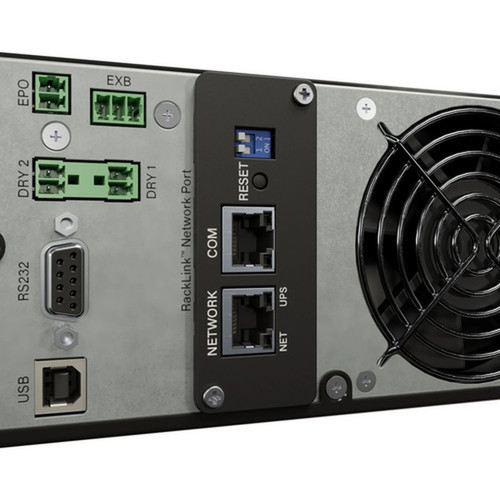

- Serial port enables integration with network management systems for remote monitoring
- Energy Star certified and RoHS/REACH compliant for environmental responsibility
- 3-year limited warranty with 2-year battery coverage for long-term reliability
- Operates in temperatures up to 104°F (40°C) for demanding environments
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | UPX-RLNK-2000R-8 |
| Brand Name | Middle Atlantic |
| Product Line | NEXSYS |
| Product Name | NEXSYS 2000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Power Description | |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC,120 V AC,127 V AC |
| Waveform Type | Pure Sine Wave |
| Display & Graphics | |
| Display | LCD |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| DC System Voltage | 48 V DC |
| Hot Swappable | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.46" (88 mm) |
| Width | 19.02" (483 mm) |
| Depth | 22.01" (559 mm) |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 63.05 lb (28600 g) |
| Miscellaneous | |
| Package Contents | 1000VA Rack-mountable UPS 6' (1.8m) IEC Power Cord Network Card |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 2 Years Battery |
User Manual
FAQ
What is the power capacity of this UPS?
This Middle Atlantic UPS provides 2000VA (2 kVA) of apparent power and 1800W (1.80 kW) of real power capacity. It can support multiple rack-mounted devices such as servers, switches, and storage systems, offering sufficient backup during power interruptions while correcting voltage sags and surges through its AVR functionality.
How many outlets does this UPS have and what type are they?
The unit includes eight NEMA 5-20R outlets, which are 20-amp receptacles commonly used in North America for commercial and IT equipment. These outlets support bank outlet control, allowing grouped management for sequenced shutdowns or reboots via the RackLink feature, enhancing power distribution flexibility in rack environments.
Is this UPS rack-mountable and what space does it require?
Yes, this UPS is designed for rack mounting and occupies 2U (3.46 inches) of vertical space in a standard 19-inch rack. Its dimensions are 19.02" wide, 22.01" deep, and it weighs approximately 63.05 pounds. The form factor is optimized for data center and server room installations where rack space is at a premium.
Does this UPS provide pure sine wave output?
Yes, the UPS delivers pure sine wave output, which is essential for powering sensitive electronic equipment with active power factor correction (PFC) power supplies. This clean waveform prevents compatibility issues, reduces harmonic distortion, and ensures safe operation for servers, networking gear, and storage systems, minimizing the risk of equipment damage or unexpected shutdowns.
What management and monitoring features are included?
The UPS features an LCD display for local status monitoring and configuration, along with a serial port for connectivity to network management systems. The included network card enables remote monitoring and control via web interface or SNMP, allowing administrators to track power events, configure alerts, and manage outlet groups without physical access to the unit.
What is the warranty coverage for this UPS?
Middle Atlantic provides a 3-year limited warranty on the UPS unit, with additional coverage of 2 years for the batteries. This warranty supports long-term reliability and includes protection against defects in materials and workmanship, ensuring peace of mind for critical power protection deployments in business and IT environments.
What power capacity is listed for this UPS?
The listed power specification is 2 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
