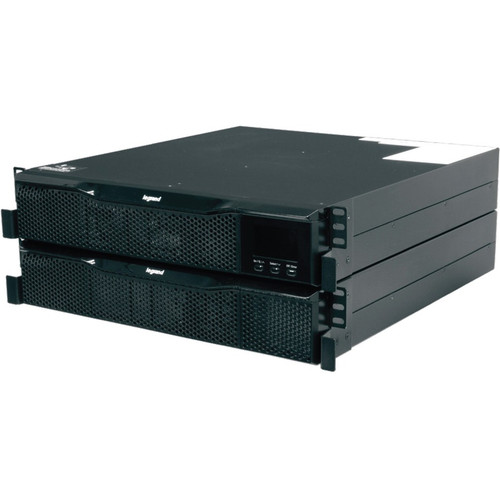

Middle Atlantic UPS-LL-3000RT 3000VA Rack/Tower UPS - Line Interactive with AVR - Pure Sine Wave - 2. 7kW - 120V Input
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The UPS-LL-3000RT delivers 3 kVA (3000VA) and 2.7 kW of power capacity, supporting critical loads with a 4-minute runtime at full load and 12 minutes at half load. It operates on a 120V AC input with a wide range of 81V to 145V AC, accommodating unstable power conditions, and outputs multiple voltage levels (110V, 115V, 120V, 127V AC) at 60Hz for broad compatibility.
Its electrical design includes a 0.9 input and output power factor for optimized efficiency, reducing energy waste. The unit uses a 82.1V DC system with six 12V batteries totaling 9000 mAh capacity, and it recharges fully within 4 hours after use. An LCD display provides real-time status monitoring, while thermal dissipation is rated at 248 BTU/h.
This section brings together practical product details such as AVR, Plug/Connector Type, Receptacle Type, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This UPS offers advanced features that enhance reliability and manageability in demanding settings. Its programmable outlet bank allows for segmented power control, prioritizing mission-critical equipment to extend battery runtime during extended outages.
Ultra-Low Transfer Time
With a 10 ms transfer time, the UPS switches from AC to battery power almost instantaneously, preventing downtime for connected devices.
- Minimizes interruption risk
- Suitable for sensitive loads
Wide Input Voltage Range
The input range of 81V to 145V AC enables stable operation in areas with poor power quality, reducing the frequency of battery usage.
- Handles brownouts effectively
- Extends battery lifespan
Smart Management Capabilities
Optional remote management provides visibility and control over power usage, allowing for monitoring and configuration from on-site or remote locations.
- RS-232/USB and network interfaces
- EPO port for emergency shutdown
Deployment / Use Cases
The UPS-LL-3000RT is engineered for environments where uninterrupted power is critical to operations. Its rack/tower form factor and included mounting kit make it versatile for both data center racks and standalone tower setups in smaller offices or industrial sites.
Ideal use cases include protecting server infrastructure in IT closets, supporting networking equipment in telecommunications, and backing up medical or laboratory instruments. The programmable outlets allow users to customize power distribution, ensuring essential systems remain online longer during outages.
Data Center Rack Deployment
Mounts easily in standard 19-inch racks with the included 4-post kit, saving space and integrating seamlessly into server environments.
Tower Setup for Office or Industrial Use
Includes feet for stable tower placement, suitable for locations without rack infrastructure, such as small offices or manufacturing floors.
Physical Profile
The UPS has a compact black design with dimensions of 3.46" (88 mm) height, 17.24" (438 mm) width, and 24.09" (612 mm) depth, fitting standard rack widths. It weighs approximately 29.30 kg, making it manageable for installation while robust enough for stable operation. The form factor supports both rack and tower orientations, with included feet for non-rack applications.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.46" (88 mm), 17.24" (438 mm), 24.09" (612 mm), 29.30 kg. This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.24" (438 mm)
- Depth
- 24.09" (612 mm)
- Height
- 3.46" (88 mm)
- Weight
- 29.30 kg
- Length
- 0.95" (24.10 mm)
What's in the Box
The package includes everything needed for immediate deployment.
Package contents include UPS-LL-3000RT 3000VA Rack/Tower UPS 4-Post Rack Mounting Kit Feet, UPS-LL-3000RT 3000VA Rack/Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 3000VA/2.7kW line-interactive UPS with AVR for voltage correction
- Pure sine wave output compatible with sensitive electronics
- 4-minute full-load runtime and 12-minute half-load runtime
- Wide input voltage range (81V-145V AC) for unstable power conditions
- Includes 4-post rack mounting kit and feet for tower deployment
- Smart RS-232/USB and network management for remote monitoring
- Programmable outlet bank to prioritize critical equipment
- cTUVus listed to UL Standard 1778 for US and Canada safety
- 2-year limited warranty with 2-year battery warranty
- RoHS compliant and environmentally friendly design
Specifications
| Specifications | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | UPS-LL-3000RT |
| Brand Name | Middle Atlantic |
| Product Model | UPS-LL-3000RT |
| Product Name | UPS-LL-3000RT 3000VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R,NEMA L5-30R |
| Receptacle Detail | 6 x NEMA 5-20R,1 x NEMA L5-30R |
| Transfer Time | 10 ms |
| Application/Usage | Critical System |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 81 V AC - 145 V AC |
| Output Voltage | 110 V AC,115 V AC,120 V AC,127 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Input Power Factor | 0.9 |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Smart RS-232/USB |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 82.1 V DC |
| Number of Batteries | 6 |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Environmental Conditions | |
| Operating Humidity | 0% - 90% |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 248 BTU/h |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.46" (88 mm) |
| Width | 17.24" (438 mm) |
| Depth | 24.09" (612 mm) |
| Length | 0.95" (24.10 mm) |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 29.30 kg |
| Miscellaneous | |
| Package Contents | UPS-LL-3000RT 3000VA Rack/Tower UPS 4-Post Rack Mounting Kit Feet |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Restriction of Hazardous Substances (RoHS) 3 |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | Battery shall be warrantied for a period of 2 years. |
User Manual
FAQ
What is the power capacity of the Middle Atlantic UPS-LL-3000RT?
The UPS-LL-3000RT has a load capacity of 3 kVA (3000VA) and 2.7 kW, providing sufficient power for critical systems like servers and networking equipment. This capacity ensures it can handle typical loads in small to medium server rooms or industrial setups without overloading.
How long does the battery last during a power outage?
At full load, the battery provides 4 minutes of runtime, while at half load, it extends to 12 minutes. This runtime supports orderly shutdowns or short-term backup for essential devices, and the unit recharges fully within 4 hours after use.
What type of output waveform does this UPS produce?
It delivers a pure sine wave output, which is ideal for sensitive electronic equipment such as servers, medical devices, and audio-visual gear. This waveform ensures clean, stable power that mimics utility power, reducing the risk of damage or malfunction.
Can this UPS be mounted in a rack or used as a tower?
Yes, it supports both rack and tower deployments. The package includes a 4-post rack mounting kit for standard 19-inch racks and feet for stable tower placement, offering flexibility for data centers, offices, or industrial environments.
What management options are available for this UPS?
It features smart RS-232/USB and network (RJ-45) interfaces for management, allowing remote monitoring and control via optional software. An EPO port is also included for emergency power-off, enhancing safety in critical installations.
What is the warranty coverage for this UPS?
The UPS comes with a 2-year limited warranty, and the battery is separately warrantied for 2 years. This coverage provides peace of mind for long-term reliability in demanding applications.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
