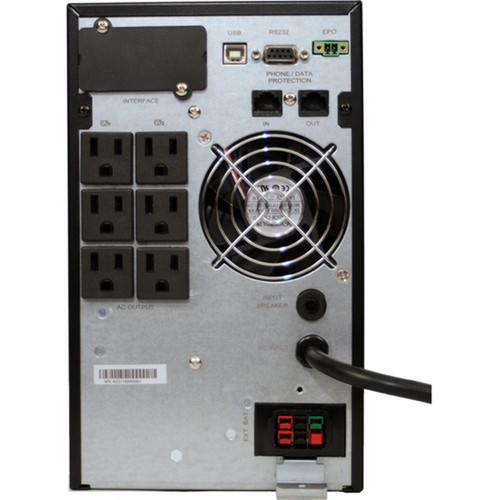

Minuteman EC1000LCD 1000 VA / 900W Online Tower UPS - 6 Outlets - Pure Sine Wave - 2 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Engineered with double-conversion online technology, the EC1000LCD continuously converts incoming AC power to DC and then back to clean AC, providing complete isolation from utility power anomalies. This results in a pure sine wave output that is compatible with active PFC power supplies found in modern servers and networking gear.
The unit accepts a 120V AC input with a wide input voltage range from 0V to 160V AC, offering robust protection against brownouts and overvoltages. It delivers output at 110V, 120V, or 127V AC at 60 Hz. A 140-joule surge energy rating and integrated EMI/RFI noise filtering provide additional protection against transient spikes and line noise.
Battery System
Powered by a single sealed, maintenance-free lead-acid battery that is user-replaceable and hot-swappable, allowing for battery replacement without shutting down connected equipment.
- Sealed & Non-spillable
- Maintenance-free
- User-replaceable
- Hot-swappable design
Key Product Advantages
The EC1000LCD combines high-capacity power protection with intelligent management features in a reliable tower form factor. Its design prioritizes uptime for critical systems across various professional and industrial settings.
Zero Transfer Time & Pure Power
The online double-conversion architecture ensures there is no switchover delay during a power failure, providing seamless backup. The generated pure sine wave output is essential for the stable operation of sensitive electronic loads.
- 0 ns transfer time
- Clean, regulated output
- Compatible with active PFC equipment
Comprehensive Management & Monitoring
Manage and monitor the UPS status locally via the LCD panel or remotely over the network. Multiple interface options provide flexibility for integration into existing management systems.
- LCD status panel with alarms
- SNMP management capability
- USB (HID) and serial communication ports
- Emergency Power Off (EPO) port
Robust Protection Suite
Beyond backup power, the unit safeguards connected equipment from a range of common power problems that can cause data loss or hardware damage.
- Surge protection (140 J)
- EMI/RFI noise filtering
- Dataline protection for RJ-11/RJ-45
- Wide input voltage range
Deployment / Use Cases
The 1000 VA capacity and pure sine wave output make this UPS suitable for protecting a range of critical infrastructure where power quality and continuity are non-negotiable.
It is commonly deployed to support small business servers, network closets, point-of-sale systems, and telecommunications equipment. In healthcare, education, and laboratory environments, it provides vital backup for diagnostic devices, security systems, and research equipment that cannot tolerate abrupt power loss.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server & Network Infrastructure
Provides runtime to gracefully shut down a server or keep network switches and routers online during short outages, preventing data corruption and maintaining connectivity.
Critical Point-of-Operation
Ideal for medical devices, security system control panels, and lab instruments, ensuring operational continuity and protecting sensitive measurements or recordings.
Physical Profile
Designed as a tower unit, the EC1000LCD has a compact footprint suitable for placement under a desk, in a server closet, or alongside other equipment. Its dimensions are 10.20" H x 6.10" W x 15.90" D (259 x 155 x 404 mm), with an approximate weight of 28.2 lbs (12.8 kg). The tower form factor offers easy access to outlets and the front-panel LCD without requiring rack mounting hardware.
- Width
- 6.10" (154.94 mm)
- Depth
- 15.90" (403.86 mm)
- Height
- 10.20" (259.08 mm)
- Weight
- 55 dB(A)
What's in the Box
The package includes everything needed for immediate setup and operation of the UPS system.
Highlights
- 1000 VA / 900W double-conversion online UPS for maximum power protection.
- Delivers pure sine wave output, compatible with sensitive server and network equipment.
- Provides 2 minutes of runtime at full load (900W) and 10 minutes at half load.
- Features six NEMA 5-15R outlets for connecting multiple devices.
- Zero transfer time ensures seamless switch to battery power during an outage.
- SNMP manageable for remote monitoring and control over the network.
- User-replaceable, hot-swappable sealed lead-acid battery.
- Includes LCD status panel for clear, at-a-glance system information.
- Backed by a 3-year manufacturer's limited warranty.
- RoHS 2 compliant and includes SentryHD power management software.
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | EC1000LCD |
| Brand Name | Minuteman |
| Product Line | Encompass |
| Product Model | EC1000LCD |
| Product Name | 1000 VA On-line Tower UPS with 6 0utlets |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Dataline Protection | RJ-45,RJ-11 |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Application/Usage | Voice/Data Network,Server,Electronic Device,Medical,Healthcare,Lab Equipment,Security System,Education,Network |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 0 V AC - 160 V AC |
| Output Voltage | 110 V AC,120 V AC,127 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 140 J |
| Management | |
| Network Management | SNMP Manageable |
| Controls/Indicators | |
| Status Indicators | LCD Status Panel Alarm |
| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Characteristics | Sealed, Non-spillable, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 14°F (-10°C) - 122°F (50°C) |
| Operating Humidity | 10% - 90% |
| Storage Relative Humidity | 10% - 90% |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Physical Characteristics | |
| Height | 10.20" (259.08 mm) |
| Width | 6.10" (154.94 mm) |
| Depth | 15.90" (403.86 mm) |
| Form Factor | Tower |
| Weight (Approximate) | 28.20 lb (12791.30 g) |
| Miscellaneous | |
| Package Contents | 1000 VA On-line Tower UPS with 6 0utlets Batteries Disconnected Quick Installation Guide |
| Software Included | Minuteman SentryHD Power Monitoring and Control Software |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the difference between VA and Watts for this UPS?
VA (Volt-Amps) represents the apparent power capacity, while Watts represents the real power capacity. For this Minuteman EC1000LCD, the VA rating is 1000 VA (1 kVA), and the corresponding Watt rating is 900W. You should ensure the total wattage of your connected equipment does not exceed 900W for proper support and to achieve the specified runtime.
How long will the UPS run on battery power?
The runtime depends on the total load connected. At the maximum load of 900 watts, the battery will provide approximately 2 minutes of runtime, allowing for a controlled shutdown. At a reduced load of 450 watts (half load), the runtime extends to approximately 10 minutes. Actual runtime can vary based on battery age, condition, and environmental factors.
What type of power output does this UPS provide?
This is a double-conversion online UPS that provides a pure sine wave output. This is the cleanest form of AC power, identical to or better than utility power, and is required for the safe and efficient operation of sensitive electronics like servers, medical equipment, and devices with active Power Factor Correction (PFC) power supplies.
How many devices can I plug into this UPS?
The UPS is equipped with six NEMA 5-15R outlets. All outlets are backed by battery and surge protection. It is important to manage the total connected load so it does not surpass the unit's 900-watt capacity to ensure proper backup operation and avoid overloading the system.
Can I manage this UPS over a network?
Yes, the EC1000LCD is SNMP manageable. This allows you to integrate it into network monitoring systems to receive alerts, check status, and perform administrative functions remotely. It also includes a USB (HID compliant) port and a serial port for direct connection to a server or computer for management using the included SentryHD software.
Is the battery user-replaceable?
Yes, the sealed lead-acid battery is designed to be user-replaceable. Furthermore, it is hot-swappable, meaning you can replace the battery module while the UPS is still operating and powering your connected equipment, ensuring zero downtime during maintenance.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
