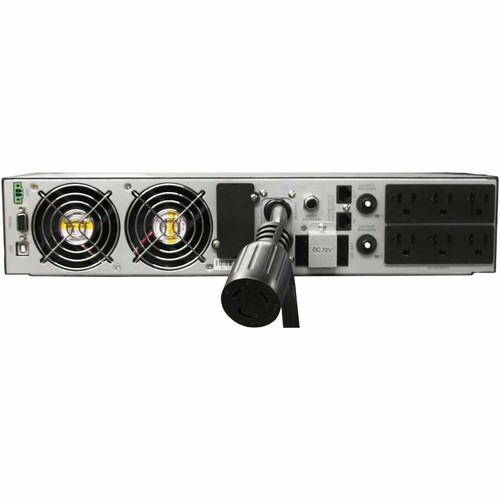

Minuteman EC1000RTXL2U Encompass RTXL 1000VA/900W Double Conversion Online UPS - 2U Rack/Tower/Compact - 120V AC - True Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously converts incoming AC power to DC and back to clean AC, providing complete isolation from utility power anomalies. The true sine wave output ensures compatibility with active PFC power supplies found in modern servers, networking gear, and medical equipment.
The unit features a built-in bypass switch for maintenance and a cold start function for operation without utility power. Battery management includes hot-swappable, user-replaceable sealed lead-acid batteries that are maintenance-free and valve-regulated. Input voltage accepts a wide range from 0V to 160V AC, while output delivers stable 120V, 110V, or 127V AC at 50/60 Hz frequencies.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The EC1000RTXL2U delivers enterprise-grade power protection with features typically found in larger systems. The LCD display provides real-time status monitoring, while multiple management interfaces including RS-232, SNMP, and USB enable integration with network management systems. Six NEMA 5-15R outlets distribute protected power to connected equipment, and the emergency power off (EPO) port supports safety shutdown protocols.
True Double Conversion Protection
Complete isolation from all power problems including blackouts, brownouts, surges, sags, and electrical noise. The online double conversion topology ensures zero transfer time to battery power.
- Continuous power conditioning
- Zero transfer time
- Complete voltage regulation
Versatile Deployment Options
Configure as a 2U rackmount unit, standalone tower, or compact installation to match your space requirements. The included mounting hardware supports flexible placement in server rooms, network closets, or equipment racks.
- 2U rackmount ready
- Tower configuration option
- Compact footprint design
Deployment / Use Cases
This UPS serves as a reliable power foundation for VoIP phone systems, security installations, edge computing nodes, and government applications. The wide operating temperature range from 32°F to 104°F (0°C to 40°C) and high-altitude capability up to 9,842 feet support deployment in diverse environmental conditions.
For audio/video equipment, the clean power output eliminates hum and interference while protecting against voltage fluctuations. The unit's 3-year comprehensive warranty including batteries provides long-term assurance for critical power protection investments.
Server Room & Network Infrastructure
Protect rack-mounted servers, switches, routers, and storage arrays from power disturbances. The 2U form factor fits standard 19-inch racks while providing 900W of protected power capacity for critical network equipment.
Medical & Healthcare Environments
Ensure uninterrupted operation of diagnostic equipment, patient monitoring systems, and medical workstations. The true sine wave output and double conversion topology meet the stringent power quality requirements of sensitive medical electronics.
Physical Profile
The EC1000RTXL2U measures 3.50" (88.90 mm) in height, 18.90" (480.06 mm) in width, and 16" (406.40 mm) in depth, occupying exactly 2U of vertical rack space. The compact dimensions and 24.30-pound weight facilitate installation in standard server racks or as a standalone tower. The unit's professional black finish and clean front-panel design with LCD display integrate well in both data center and office environments.
- Width
- 18.90" (480.06 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 24.30 lb (11022.29 g)
- Length
- 10 ft (3.05 m)
Highlights
- 1000VA/900W double conversion online UPS with true sine wave output
- 2U rack/tower/compact form factor for flexible deployment options
- 2-minute runtime at full load, 10-minute runtime at half load
- Six NEMA 5-15R outlets with 10-foot power cord
- Hot-swappable, user-replaceable sealed lead-acid batteries
- LCD display with RS-232, SNMP, and USB management interfaces
- Wide input voltage range (0-160V AC) with built-in circuit breaker
- ENERGY STAR 2.0 certified and RoHS 2 compliant
- 3-year comprehensive warranty including batteries
- Supports medical, network, server, VoIP, security, and edge computing applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | EC1000RTXL2U |
| Brand Name | Minuteman |
| Product Line | Encompass |
| Product Series | RTXL |
| Product Model | EC1000RTXL2U |
| Product Name | Encompass RTXL EC1000RTXL2U 1000VA Rack/Tower/Compact UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Cord Length | 10 ft (3.05 m) |
| Application/Usage | Medical,Network,Server,VoIP Phone System,IP Phone,Security,Edge Computing,Government,Security System,Audio/Video Equipment,Equipment,Hospital |
| Features | Cold Start Function,Built-in Bypass Switch |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 0 V AC - 160 V AC |
| Output Voltage | 120 V AC,110 V AC,127 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | True Sine Wave |
| Circuit Breaker | Yes |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232,SNMP |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Battery Characteristics | Sealed, Non-spillable, Maintenance-free, Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 18.90" (480.06 mm) |
| Length | 16" (406.40 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower/Compact |
| Weight (Approximate) | 24.30 lb (11022.29 g) |
| Miscellaneous | |
| Energy Star | Yes |
| TAA Compliant | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Full 3-year warranty which includes batteries. |
User Manual
FAQ
What type of UPS topology does the EC1000RTXL2U use?
The Minuteman EC1000RTXL2U employs a double conversion online topology. This means incoming AC power is continuously converted to DC, then inverted back to clean AC output. This provides complete isolation from utility power problems including blackouts, brownouts, surges, and electrical noise, with zero transfer time to battery power during outages.
How many outlets does this UPS provide and what type are they?
This UPS features six NEMA 5-15R receptacles for connecting protected equipment. These standard North American outlets support devices with three-prong plugs up to 15 amps. The unit includes a 10-foot (3.05 m) NEMA 5-15P power cord for connection to wall power.
What is the runtime at full load versus half load?
At full 900W load, the EC1000RTXL2U provides 2 minutes of battery runtime. At half load (450W), runtime extends to 10 minutes. These runtimes provide sufficient buffer for graceful shutdowns of connected equipment or transition to backup power sources during extended outages.
Can this UPS be mounted in a standard server rack?
Yes, the EC1000RTXL2U is designed for 2U rackmount installation in standard 19-inch server racks. It includes the necessary mounting hardware and has dimensions of 3.50" height, 18.90" width, and 16" depth. The unit can also be deployed as a standalone tower or in compact installations where rack space isn't available.
What management interfaces are available for monitoring and control?
This UPS provides multiple management options including RS-232 serial port, SNMP network management, and USB connectivity. These interfaces allow integration with network management systems, enable remote monitoring of power status and battery health, and support configuration of shutdown sequences for connected equipment.
Are the batteries user-replaceable and what type are they?
Yes, the EC1000RTXL2U features hot-swappable, user-replaceable batteries. The unit uses sealed, non-spillable, maintenance-free, valve-regulated lead-acid batteries. This design allows battery replacement without powering down connected equipment and eliminates the need for regular maintenance while providing reliable backup power.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
