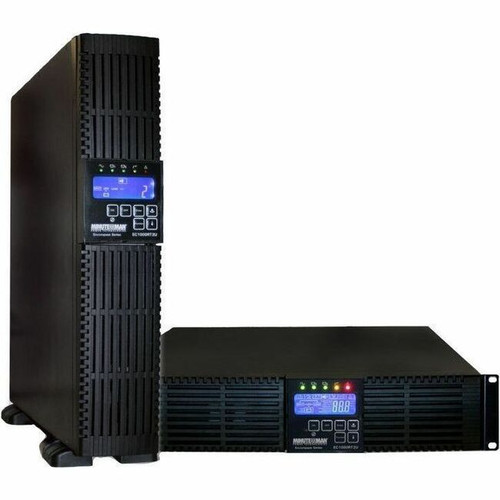

Minuteman EC1500RTXL2UNC Encompass RTXL 1500VA/1350W Double Conversion Online UPS - 2U Rack/Tower/Compact - 5 Min Full Load - 120V AC - LCD
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This Double Conversion Online UPS provides complete isolation from input power irregularities, continuously converting AC to DC and back to AC to deliver clean, regulated power. The 1.50 kVA/1.35 kW capacity supports substantial loads, with 5 minutes of runtime at full load and 15 minutes at half load, giving adequate time for graceful shutdowns or transition to backup generators.
Electrical specifications include 120V AC input with a wide 0-160V AC range, multiple output voltage options (120V, 110V, 127V AC), and 50/60Hz frequency compatibility. The true sine wave output ensures compatibility with power factor corrected (PFC) power supplies found in modern servers and networking equipment, while the 0.9 output power factor indicates efficient power delivery.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
The Encompass RTXL series combines robust power protection with operational flexibility, making it suitable for diverse deployment scenarios from enterprise data centers to industrial applications.
Versatile Deployment Options
The 2U rack-mountable design with included tower conversion kit allows installation in standard server racks or as a standalone unit, adapting to space constraints and infrastructure requirements.
- 2U rack height fits standard server cabinets
- Tower/compact configuration for standalone use
- 19.2" length matches standard rack depth
Advanced Battery Management
Hot-swappable, user-replaceable batteries enable maintenance without system downtime, while sealed lead-acid chemistry ensures safe, maintenance-free operation in various environments.
- Hot-swappable battery replacement
- Sealed, non-spillable design
- Maintenance-free valve-regulated construction
Comprehensive Management Capabilities
Multiple management interfaces including RS-232, USB, and optional network card with SNMP support provide flexible monitoring and control options for integration with existing management systems.
- RS-232 and USB connectivity
- SNMP support via network card
- EPO (Emergency Power Off) port for safety
Deployment / Use Cases
This UPS is engineered for environments where power quality and continuity are critical to operations. The double conversion technology and true sine wave output make it particularly suitable for sensitive electronic equipment that requires clean, stable power.
In server rooms and data centers, it protects critical infrastructure from power disturbances, providing sufficient runtime for orderly shutdowns or generator startup. For network installations, it ensures uninterrupted operation of switches, routers, and VoIP systems during power events. Medical applications benefit from the reliable power protection for diagnostic equipment and patient monitoring systems, while industrial settings appreciate the wide input voltage range and robust construction.
Data Center & Server Protection
Protect rack-mounted servers, storage arrays, and networking equipment with clean power and adequate runtime for graceful shutdown procedures during extended outages.
Network Infrastructure Support
Ensure continuous operation of switches, routers, firewalls, and VoIP systems in network closets and telecommunications rooms where power interruptions can disrupt communications.
Physical Profile
The compact 2U design measures 3.5"H × 18.9"W × 19.2"D (88.9 × 480.06 × 487.68 mm), fitting standard 19-inch server racks while minimizing space consumption. At 44.1 lbs (20 kg), the unit maintains a manageable weight for installation and maintenance. The form factor includes mounting hardware for rack installation and feet for tower configuration, providing installation flexibility. Six NEMA 5-15R outlets distribute protected power to connected equipment, with a 10-foot (3.05 m) NEMA 5-15P input cord for connection to standard wall outlets.
- Width
- 18.90" (480.06 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 44.10 lb (20003.42 g)
- Length
- 10 ft (3.05 m)
Highlights
- 1500VA/1350W Double Conversion Online UPS with true sine wave output
- 2U rack/tower/compact form factor for flexible deployment in server racks or as standalone unit
- 5-minute runtime at full load, 15 minutes at half load for adequate shutdown time
- Hot-swappable, user-replaceable batteries for maintenance without downtime
- LCD display for real-time monitoring of power status and battery health
- Six NEMA 5-15R outlets with 10-foot input cord for comprehensive equipment protection
- RS-232, USB, and optional network card with SNMP for remote management
- Wide input voltage range (0-160V AC) for stable operation in varying power conditions
- ENERGY STAR 2.0 certified for energy efficiency
- 3-year warranty including battery coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | EC1500RTXL2UNC |
| Brand Name | Minuteman |
| Product Line | Encompass |
| Product Series | RTXL |
| Product Model | EC1500RTXL2UNC |
| Product Name | Encompass RTXL EC1500RTXL2UNC 1500VA Rack/Tower/Compact UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Cord Length | 10 ft (3.05 m) |
| Application/Usage | Medical,Network,Server,VoIP Phone System,IP Phone,Security,Edge Computing,Government,Security System,Audio/Video Equipment,Equipment,Hospital |
| Features | Cold Start Function,Built-in Bypass Switch |
| Power Description | |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 0 V AC - 160 V AC |
| Output Voltage | 120 V AC,110 V AC,127 V AC |
| Input Frequency | 50 Hz,60 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | True Sine Wave |
| Output Power Factor | 0.9 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232,SNMP,Network Card |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Battery Characteristics | Sealed, Non-spillable, Maintenance-free, Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Operating Humidity | 10% - 90% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 18.90" (480.06 mm) |
| Length | 19.20" (487.68 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower/Compact |
| Weight (Approximate) | 44.10 lb (20003.42 g) |
| Miscellaneous | |
| Energy Star | Yes |
| TAA Compliant | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2,Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Full 3-year warranty which includes batteries. |
User Manual
FAQ
What is the power capacity of this Minuteman UPS?
This Minuteman Encompass RTXL UPS provides 1500VA (1.5 kVA) apparent power and 1350W (1.35 kW) real power capacity. This capacity supports substantial loads including servers, networking equipment, and other critical devices, with the double conversion topology ensuring clean, stable power delivery regardless of input power quality.
How long will this UPS run on battery power?
At full load (1350W), the UPS provides approximately 5 minutes of runtime, while at half load (675W) it offers about 15 minutes. These runtime figures allow sufficient time for graceful shutdown of connected equipment or transition to backup power sources during power outages, protecting against data loss and equipment damage.
Can this UPS be installed in a server rack?
Yes, this UPS features a 2U rack-mountable design that fits standard 19-inch server racks. The dimensions of 3.5"H × 18.9"W × 19.2"D (2U height) match typical rack equipment, and it includes both rack-mount hardware and feet for tower configuration, providing deployment flexibility for data centers, network closets, or standalone applications.
What type of power output does this UPS provide?
This Double Conversion Online UPS delivers true sine wave output, which is essential for compatibility with modern power factor corrected (PFC) power supplies found in servers, networking equipment, and other sensitive electronics. The true sine wave ensures clean, stable power that prevents equipment malfunctions and extends device lifespan.
How many devices can I connect to this UPS?
The UPS includes six NEMA 5-15R outlets, allowing connection of multiple devices. With a 10-foot (3.05 m) NEMA 5-15P input cord, it can be positioned conveniently within server racks or equipment areas. The 1350W capacity should be considered when connecting multiple devices to ensure adequate runtime and protection.
What management options are available for this UPS?
Management interfaces include RS-232 and USB ports for local monitoring and control, plus support for an optional network card that enables SNMP management over Ethernet. The LCD display provides real-time status information, and an EPO (Emergency Power Off) port allows integration with safety systems. These options facilitate remote monitoring, configuration, and automated shutdown procedures.
What power capacity is listed for this UPS?
The listed power specification is 1.50 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
