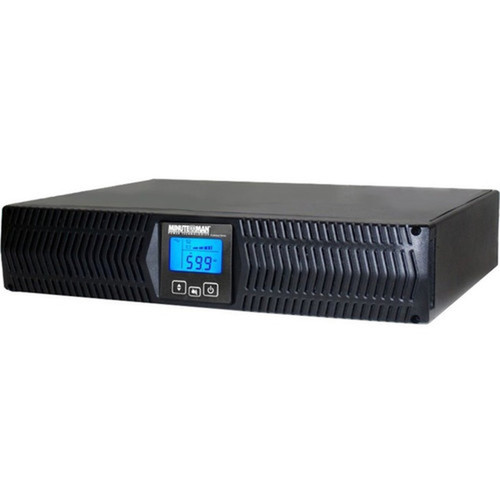

Minuteman ED1000RTXL2U Endeavor 1000VA/900W Double Conversion Online UPS - 2U Rack/Tower/Wall Mountable - 8 Outlets - 3 Minute Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on a double conversion online topology, this UPS continuously conditions incoming power, delivering stable 120 V AC sine wave output regardless of input fluctuations. It accepts a wide input voltage range from 0 to 160 V AC, ensuring compatibility with varying line conditions. The unit features eight NEMA 5-15R outlets and includes a network RJ-45 port for management connectivity. Hot-swappable batteries allow for maintenance without system downtime, supporting continuous operation.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This UPS combines high power capacity with versatile mounting options, making it suitable for diverse IT and telecommunications deployments. Its double conversion design ensures maximum protection against power anomalies, while the 2U rack-optimized footprint conserves valuable rack space.
Flexible Installation
Configure as a tower for standalone use, mount in a standard 19-inch rack using the 2U height, or install on a wall to save floor space.
- Tower, rack, or wall mountable
- 2U rack height for space efficiency
- 19-inch width for standard rack compatibility
Reliable Power Protection
Delivers consistent sine wave power with a 1000VA/900W capacity, supporting critical loads during outages or fluctuations.
- 1 kVA/900 W load capacity
- 3-minute runtime at full load
- Wide input voltage range (0-160 V AC)
Deployment / Use Cases
The ED1000RTXL2U is designed for environments where uninterrupted power is essential. Its application set includes network infrastructure, security systems, VoIP phone systems, and distributed antenna systems (DAS), providing backup power to maintain operations during brief outages or until generators engage.
In network closets, it protects switches, routers, and servers. For security deployments, it ensures surveillance cameras and access control systems remain online. VoIP phone systems benefit from clean power to maintain call quality and connectivity, while DAS installations rely on it to support wireless communication nodes.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The UPS measures 3.50 inches in height, 19 inches in width, and weighs approximately 29.30 pounds. Its 2U rack height fits standard server racks, and the tower/wall mountable design offers placement flexibility. The compact form factor is suitable for space-constrained installations while providing substantial power capacity.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 19" (482.60 mm), 29.30 lb (13290.26 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 19" (482.60 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 29.30 lb (13290.26 g)
What's in the Box
The package includes the Endeavor ED1000RTXL2U 1000VA Tower/Rack/Wall Mountable UPS and its batteries, ready for installation.
Package contents include Endeavor ED1000RTXL2U 1000VA Tower/Rack/Wall Mountable UPS Batteries, Endeavor ED1000RTXL2U 1000VA Tower/Rack/Wall Mountable UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 1000VA/900W double conversion online UPS for reliable power protection
- 2U rack-optimized design with tower and wall mounting flexibility
- Eight NEMA 5-15R outlets to support multiple devices
- 3-minute runtime at full load to bridge short outages
- Hot-swappable batteries for maintenance without downtime
- Sine wave output ensures compatibility with sensitive electronics
- Energy Star certified for energy efficiency
- 5-year limited warranty for long-term reliability
- Network RJ-45 port for management and monitoring
- RoHS 2 compliant for environmental safety
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED1000RTXL2U |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED1000RTXL2U |
| Product Name | Endeavor ED1000RTXL2U 1000VA Tower/Rack/Wall Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Application/Usage | Network,Network Closet,Security System,VoIP Phone System,Distributed Antenna System (DAS) |
| Power Description | |
| Load Capacity (VA) | 1 kVA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 0 V AC - 160 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 19" (482.60 mm) |
| Rack Height | 2U |
| Form Factor | Tower/Rack/Wall Mountable |
| Weight (Approximate) | 29.30 lb (13290.26 g) |
| Miscellaneous | |
| Package Contents | Endeavor ED1000RTXL2U 1000VA Tower/Rack/Wall Mountable UPS Batteries |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Minuteman Endeavor ED1000RTXL2U provides a 1000VA (1 kVA) apparent power capacity and a 900W real power capacity. This rating determines the total load it can support, making it suitable for protecting network equipment, security systems, and VoIP phones during power interruptions.
How long does the battery last at full load?
At full load (900W), the UPS offers a backup runtime of approximately 3 minutes. This duration provides sufficient time to save work, initiate graceful shutdowns, or transition to an alternative power source like a generator in critical deployments.
What types of outlets does this UPS have?
It features eight NEMA 5-15R outlets, which are standard North American 15-amp receptacles. These outlets support common plugs for IT and telecommunications equipment, allowing multiple devices to be connected and protected simultaneously.
Can this UPS be mounted in a server rack?
Yes, the ED1000RTXL2U is designed for 2U rack mounting in standard 19-inch server racks. It also supports tower placement for standalone use or wall mounting, offering versatile installation options to fit various space constraints and deployment preferences.
What is the input and output voltage?
The UPS accepts an input voltage of 120 V AC with a wide range from 0 to 160 V AC, accommodating fluctuating line conditions. It delivers a stable output voltage of 120 V AC as a clean sine wave, ensuring compatible and reliable power for connected sensitive electronics.
Does this UPS include hot-swappable batteries?
Yes, the batteries are hot-swappable, allowing you to replace them without powering down the UPS or interrupting connected equipment. This feature minimizes downtime and simplifies maintenance, ensuring continuous power protection during battery replacements.
What power capacity is listed for this UPS?
The listed power specification is 1 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
