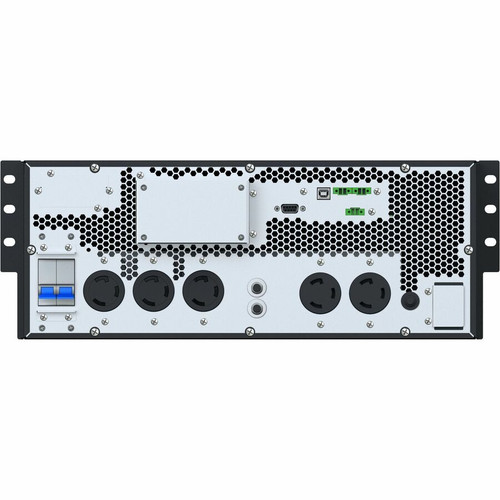

Minuteman ED10KRT Endeavor 10000VA/9kW Rack/Tower UPS - 5U Double Conversion Online - 2 Min Full Load Runtime - Pure Sine Wave
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS maintains consistent power quality by continuously converting AC input to DC and back to AC, isolating connected equipment from grid disturbances. The pure sine wave output ensures compatibility with active PFC power supplies found in modern servers, networking gear, and telecommunications equipment.
With input voltage acceptance from 180V to 280V AC and output voltage stabilization at 208V, 220V, 230V, or 240V AC, the ED10KRT adapts to varying power conditions while delivering stable output. The 3140J surge energy rating provides robust protection against voltage spikes and transients.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Endeavor ED10KRT combines high-capacity power protection with flexible deployment options and enterprise-grade management features. Its rack/tower convertible design accommodates both data center rack mounting and standalone tower installations, while the comprehensive connectivity suite enables integration with existing monitoring systems.
Flexible Power Distribution
Hardwired with 4 NEMA L6-30R and 2 NEMA L6-20R receptacles plus a terminal block connection, supporting mixed equipment loads in server rooms and network closets.
- 4 x NEMA L6-30R
- 2 x NEMA L6-20R
- 1 x Terminal Block
Comprehensive Monitoring
LCD display provides real-time status information, while RS-232, USB, and EPO ports enable remote management, data logging, and emergency shutdown coordination.
- LCD Status Display
- RS-232 Serial Interface
- USB Connectivity
- EPO Emergency Port
Environmental Resilience
Operates in temperatures up to 104°F (40°C) and elevations to 15,000 feet, with 0-95% humidity tolerance for deployment in challenging conditions.
- 104°F Maximum Operating Temperature
- 15,000 ft Maximum Elevation
- 0-95% Humidity Range
Deployment / Use Cases
The ED10KRT is engineered for medium to large-scale IT infrastructure protection, particularly in environments where power quality directly impacts operational continuity. Its 10kVA capacity supports multiple server racks, network switches, and telecommunications equipment simultaneously.
In data center applications, the 5U rack-mount configuration optimizes space utilization while providing centralized power protection for critical systems. For industrial and telecommunications deployments, the tower configuration offers standalone protection for equipment rooms and network hubs.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Server Room Protection
Safeguards multiple server racks, storage arrays, and network infrastructure during power disturbances, with sufficient runtime for graceful shutdown or generator transition.
Telecommunications Infrastructure
Provides clean, stable power for VoIP systems, security equipment, and network switches where power quality affects signal integrity and system reliability.
Physical Profile
The ED10KRT measures 8.54" (216.92 mm) in height, 17.24" (437.90 mm) in width, and occupies 5U of rack space. At 122.32 lb (55.5 kg), the unit requires proper rack mounting hardware and consideration of floor loading in data center environments. The rack/tower convertible design includes mounting ears for standard 19" rack installation and can be deployed as a standalone tower with optional stability accessories.
- Width
- 17.24" (437.90 mm)
- Height
- 5U
- Weight
- 122.32 lb (55483.42 g)
What's in the Box
The package includes the Endeavor ED10KRT 10000VA Rack/Tower UPS unit and necessary communication cables for management interface connectivity.
Package contents include Endeavor ED10KRT 10000VA Rack/Tower UPS Comm. Cables, Endeavor ED10KRT 10000VA Rack/Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 10000VA/9kW double conversion online UPS with 93% efficiency
- 5U rack/tower convertible form factor for flexible deployment
- 2 minutes runtime at full load, 7 minutes at half load
- Pure sine wave output compatible with active PFC equipment
- Hot-swappable batteries for maintenance without downtime
- Hardwired with 4 NEMA L6-30R and 2 NEMA L6-20R receptacles
- LCD display with RS-232, USB, and EPO management ports
- ENERGY STAR 2.0 certified for energy efficiency
- 3-year warranty covering electronics and batteries
- RoHS 2 compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED10KRT |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED10KRT |
| Product Name | Endeavor ED10KRT 10000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-30R,NEMA L6-20R,Terminal Block |
| Receptacle Detail | 4 x NEMA L6-30R,2 x NEMA L6-20R,1 x Terminal Block |
| Protection Type | Surge |
| Phase | Single Phase |
| Application/Usage | IT,Telecommunication,Security,Business,Infrastructure,Server,Network,Industrial,Large Enterprise,Corporate,VoIP |
| Efficiency | 93% |
| Power Description | |
| Load Capacity (VA) | 10 kVA |
| Load Capacity (Watt) | 9 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 180 V AC - 280 V AC |
| Output Voltage | 208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 3140 J |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232 |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Battery Characteristics | Hot-swappable |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 7 Minute |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 131°F (55°C) |
| Maximum Operating Elevation | 15000 ft (4572000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 5U |
| Height | 8.54" (216.92 mm) |
| Width | 17.24" (437.90 mm) |
| Weight (Approximate) | 122.32 lb (55483.42 g) |
| Miscellaneous | |
| Package Contents | Endeavor ED10KRT 10000VA Rack/Tower UPS Comm. Cables |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years (Electronics and Batteries) |
User Manual
FAQ
What is the power capacity of the Minuteman ED10KRT UPS?
The Minuteman ED10KRT provides 10,000VA (10 kVA) of apparent power capacity and 9,000 watts of real power capacity. This double conversion online UPS can support multiple server racks, network equipment, and telecommunications systems simultaneously while maintaining pure sine wave output for sensitive electronics.
How long does the ED10KRT provide backup power during an outage?
At full 9kW load, the ED10KRT delivers 2 minutes of runtime, providing sufficient time for graceful system shutdown or generator transition. At half load (4.5kW), runtime extends to 7 minutes. The hot-swappable battery design allows for battery replacement without interrupting protected equipment.
What input and output voltages does this UPS support?
The ED10KRT accepts input voltages of 120V AC or 230V AC with a wide input range of 180V to 280V AC. It delivers stabilized output at 208V, 220V, 230V, or 240V AC, adapting to various power conditions while providing consistent voltage to connected equipment.
Can the ED10KRT be mounted in a standard server rack?
Yes, the ED10KRT is designed for 5U rack mounting in standard 19" server racks and includes the necessary mounting hardware. It can also be deployed as a standalone tower unit, offering flexibility for different installation environments including data centers, equipment rooms, and network closets.
What management and monitoring features are available?
The ED10KRT includes an LCD display for local status monitoring, plus RS-232 and USB ports for remote management and data logging. An EPO (Emergency Power Off) port enables integration with building safety systems. These interfaces support integration with network management software for centralized power monitoring.
What type of power outlets does this UPS provide?
This hardwired UPS features 4 NEMA L6-30R receptacles, 2 NEMA L6-20R receptacles, and one terminal block connection. This configuration supports mixed equipment loads typically found in server rooms and telecommunications installations, with the terminal block enabling direct wiring for specialized equipment.
What power capacity is listed for this UPS?
The listed power specification is 10 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
