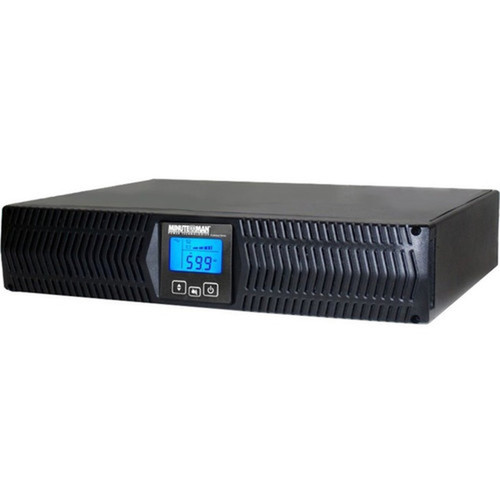

Minuteman ED2000RTXL2U Endeavor 2000VA Double Conversion Online UPS - 2 kVA / 1. 8 kW - 2U Rack/Tower/Wall Mountable - 120V AC - 4 Minute Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously converts incoming AC power to DC and back to clean AC output, providing complete isolation from utility power anomalies. The pure sine wave output ensures compatibility with sensitive electronic equipment, including servers, networking gear, and VoIP systems.
The ED2000RTXL2U features a wide input voltage range of 0-160V AC, allowing it to handle significant voltage sags and surges without transferring to battery. Network connectivity via RJ-45 enables remote monitoring and management capabilities for distributed deployments.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Endeavor ED2000RTXL2U combines robust power protection with installation flexibility, making it suitable for diverse IT environments. Its 5-year limited warranty and Energy Star certification provide additional value through extended protection and energy efficiency.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include Flexible Deployment Options, Comprehensive Outlet Protection, Maintenance Without Downtime.
Flexible Deployment Options
Configure as a 2U rack-mounted unit, standalone tower, or wall-mounted installation to match your space constraints and infrastructure requirements.
Comprehensive Outlet Protection
Nine total outlets include one NEMA L5-20R and eight NEMA 5-15/20R receptacles to power mixed equipment with different plug types.
Maintenance Without Downtime
Hot-swappable battery design allows battery replacement while the UPS continues to provide power protection to connected equipment.
Deployment / Use Cases
This UPS is engineered for environments where power quality and brief runtime are critical for system integrity. The double conversion technology ensures connected equipment receives clean, regulated power regardless of input quality, while the 4-minute runtime provides sufficient buffer for backup generators to engage or for systematic shutdown procedures.
The 2U rack-mountable design makes the ED2000RTXL2U particularly suitable for data centers and server rooms where space optimization is important. The wall-mount capability extends its usefulness to network closets and telecommunications rooms where floor space may be limited.
Network Infrastructure Protection
Ideal for network closets, switches, routers, and VoIP phone systems requiring clean power and brief runtime for graceful shutdowns during outages.
Security & Surveillance Systems
Protects security systems, DAS equipment, and surveillance cameras that must remain operational during power interruptions to maintain security coverage.
Physical Profile
The ED2000RTXL2U measures 3.5" high, 19" wide, and occupies 2U of rack space with standard rack-mount ears included. At 47.6 pounds, it's substantial enough for stable rack mounting while remaining manageable for installation. The tower configuration includes feet for standalone use, and wall-mount brackets enable vertical space utilization in constrained environments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 19" (482.60 mm), 47.60 lb (21591 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 19" (482.60 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 47.60 lb (21591 g)
What's in the Box
The package includes the Endeavor ED2000RTXL2U 2000VA Tower/Rack/Wall Mountable UPS with installed batteries, ready for deployment in your chosen configuration.
Package contents include Endeavor ED2000RTXL2U 2000VA Tower/Rack/Wall Mountable UPS Batteries, Endeavor ED2000RTXL2U 2000VA Tower/Rack/Wall Mountable UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 2000VA/1.8kW double conversion online UPS with pure sine wave output
- 4-minute runtime at full load for graceful shutdowns or backup transition
- 2U rack-mountable, tower, or wall-mount installation flexibility
- Nine total outlets: 1 NEMA L5-20R + 8 NEMA 5-15/20R receptacles
- Hot-swappable batteries for maintenance without downtime
- 120V AC input/output with 0-160V AC input voltage range
- Network RJ-45 port for remote monitoring and management
- Energy Star certified and RoHS 2 compliant
- 5-year limited warranty for extended protection
- Ideal for networks, security systems, VoIP, and DAS applications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED2000RTXL2U |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED2000RTXL2U |
| Product Name | Endeavor ED2000RTXL2U 2000VA Tower/Rack/Wall Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA L5-20R,NEMA 5-15/20R |
| Receptacle Detail | 1 x NEMA L5-20R,8 x NEMA 5-15/20R |
| Application/Usage | Network,Network Closet,Security System,VoIP Phone System,Distributed Antenna System (DAS) |
| Power Description | |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.80 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 0 V AC - 160 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 4 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 19" (482.60 mm) |
| Rack Height | 2U |
| Form Factor | Tower/Rack/Wall Mountable |
| Weight (Approximate) | 47.60 lb (21591 g) |
| Miscellaneous | |
| Package Contents | Endeavor ED2000RTXL2U 2000VA Tower/Rack/Wall Mountable UPS Batteries |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of the Minuteman ED2000RTXL2U UPS?
The ED2000RTXL2U provides 2000VA (2 kVA) of apparent power and 1800 watts (1.8 kW) of real power capacity. This double conversion online UPS delivers clean sine wave output at 120V AC, suitable for protecting servers, network equipment, and other critical infrastructure requiring stable power during outages and voltage fluctuations.
How long will this UPS run at full load during a power outage?
At full 1.8 kW load, the ED2000RTXL2U provides approximately 4 minutes of runtime. This duration allows sufficient time for connected systems to perform graceful shutdowns or for backup generators to engage. Runtime varies with actual load, with lighter loads providing extended backup periods.
What types of equipment can I connect to this UPS?
The ED2000RTXL2U is designed for network infrastructure, security systems, VoIP phone systems, and distributed antenna systems (DAS). Its nine outlets support mixed equipment with one NEMA L5-20R receptacle for higher-power devices and eight NEMA 5-15/20R receptacles for standard equipment, all protected by the double conversion online technology.
Can this UPS be installed in a server rack?
Yes, the ED2000RTXL2U is designed for flexible deployment as a 2U rack-mounted unit, standalone tower, or wall-mounted installation. The 2U rack height and 19" width make it compatible with standard server racks, while included mounting hardware supports all three installation methods without additional accessories.
What input voltage range does this UPS support?
The ED2000RTXL2U accepts input voltage from 0V AC to 160V AC, providing protection against severe voltage sags and surges. This wide range allows the UPS to handle significant utility power anomalies without immediately transferring to battery power, extending battery life during brownout conditions.
What warranty coverage comes with this UPS?
Minuteman provides a 5-year limited warranty for the ED2000RTXL2U UPS. This extended coverage period reflects the product's reliability and offers peace of mind for critical power protection applications. The warranty covers defects in materials and workmanship under normal use conditions.
What power capacity is listed for this UPS?
The listed power specification is 2 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
