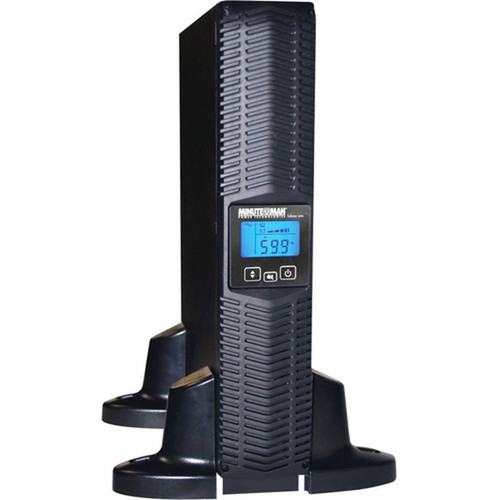

Minuteman ED3000RTXL2U Endeavor 3000VA/2. 7kW Double Conversion Online UPS - 2U Rack/Tower/Wall Mountable - 120V AC - 3. 5 Minute Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Built on a double conversion online topology, the ED3000RTXL2U continuously converts incoming AC power to DC and back to clean AC, isolating connected equipment from grid anomalies. The unit accepts 120V AC input with a wide 0–160V AC range and outputs a stable 120V AC sine wave, ensuring compatibility with servers, switches, and VoIP systems.
The UPS includes eight outlets: one NEMA L5-30R and seven NEMA 5-15/20R receptacles, supporting a mix of high- and standard-power devices. An RJ-45 network port enables remote monitoring and management, while Energy Star certification reflects efficient operation.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Endeavor ED3000RTXL2U combines high power capacity with flexible deployment options, making it ideal for environments where space and reliability are paramount. Its 2U rack-height design minimizes footprint while delivering 3000VA of clean power.
Versatile Mounting
Install as a tower, rack-mount in a standard 19-inch rack, or wall-mount to save floor space. The 2U height optimizes rack density.
- Tower, Rack, or Wall Mountable
- 2U Rack Height
- 19-inch Width
Reliable Runtime
Provides 3.5 minutes of backup at full 2.7kW load, sufficient for orderly shutdowns or bridging short outages.
- 3.5 Minutes at Full Load
- Hot-Swappable Batteries
- Graceful Shutdown Support
Comprehensive Protection
Double conversion topology ensures clean power output, while eight outlets accommodate diverse equipment.
- Pure Sine Wave
- 8 Outlets
- Network Management Port
Deployment / Use Cases
This UPS is designed for network closets, server rooms, security systems, VoIP phone systems, and distributed antenna systems (DAS). Its 3000VA capacity supports multiple switches, routers, servers, or surveillance NVRs.
In rack-mounted scenarios, the 2U form factor allows integration into existing server racks without consuming excessive space. For wall-mounted installations, it keeps equipment off the floor in tight network closets. The hot-swappable battery feature is critical for environments where uptime is non-negotiable.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Receptacle Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Network Closet Backup
Power switches, routers, and VoIP phones during outages, maintaining network connectivity.
- Supports VoIP Systems
- RJ-45 Management
- Compact 2U Design
Security & Surveillance
Keep NVRs, cameras, and access control systems online to ensure continuous monitoring.
- 3.5 Minute Runtime
- Sine Wave for Sensitive Gear
- Multiple Outlets
Physical Profile
The ED3000RTXL2U measures 3.5 inches in height, 19 inches in width, and fits a standard 2U rack space. Its weight of 70.5 pounds reflects robust construction with internal batteries. The tower/rack/wall-mount flexibility allows installation in varied environments, from data centers to equipment rooms.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 3.50" (88.90 mm), 19" (482.60 mm), 70.50 lb (31978.26 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 19" (482.60 mm)
- Height
- 3.50" (88.90 mm)
- Weight
- 70.50 lb (31978.26 g)
What's in the Box
The package includes the Endeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS with pre-installed batteries, ready for deployment.
Package contents include Endeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS Batteries, Endeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 3000VA/2.7kW double conversion online UPS for critical infrastructure
- 2U rack-height design for space-efficient server room integration
- Tower, rack, or wall-mount installation flexibility
- 3.5-minute runtime at full 2.7kW load for graceful shutdowns
- Hot-swappable batteries enable maintenance without downtime
- 120V AC input and output with pure sine wave power
- Eight outlets: one NEMA L5-30R and seven NEMA 5-15/20R
- RJ-45 network port for remote monitoring and management
- Energy Star certified for energy-efficient operation
- 5-year limited warranty for long-term reliability
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED3000RTXL2U |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED3000RTXL2U |
| Product Name | Endeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30R,NEMA 5-15/20R |
| Receptacle Detail | 1 x NEMA L5-30R,7 x NEMA 5-15/20R |
| Application/Usage | Network,Network Closet,Security System,VoIP Phone System,Distributed Antenna System (DAS) |
| Power Description | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 0 V AC - 160 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 3.50" (88.90 mm) |
| Width | 19" (482.60 mm) |
| Rack Height | 2U |
| Form Factor | Tower/Rack/Wall Mountable |
| Weight (Approximate) | 70.50 lb (31978.26 g) |
| Miscellaneous | |
| Package Contents | Endeavor ED3000RTXL2U 3000VA Tower/Rack/Wall Mountable UPS Batteries |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 5 Year |
User Manual
FAQ
What is the power capacity of this UPS?
The Minuteman Endeavor ED3000RTXL2U provides 3000VA (3 kVA) and 2700 watts of power capacity. This supports multiple servers, network switches, or security systems, making it suitable for small server rooms or network closets.
How long does the battery last at full load?
At full 2.7kW load, the UPS delivers 3.5 minutes of runtime. This allows sufficient time for connected equipment to perform graceful shutdowns or transition to backup generators during power outages.
Can this UPS be mounted in a server rack?
Yes, the ED3000RTXL2U is designed for tower, rack, or wall mounting. Its 2U height and 19-inch width fit standard server racks, making it ideal for data center or network closet installations where space optimization is key.
What types of outlets does it have?
The UPS includes eight outlets: one NEMA L5-30R receptacle for high-power devices and seven NEMA 5-15/20R receptacles for standard equipment. This mix accommodates servers, switches, VoIP phones, and other network gear.
Is the battery hot-swappable?
Yes, the batteries are hot-swappable, allowing replacement without shutting down the UPS or connected devices. This feature is essential for maintaining uptime in critical environments where continuous power is required.
What warranty comes with this UPS?
Minuteman provides a 5-year limited warranty for the ED3000RTXL2U, covering defects in materials and workmanship. This extended warranty period reflects the unit's reliability and suitability for business-critical applications.
What power capacity is listed for this UPS?
The listed power specification is 3 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC, which helps position the unit for the right load level and installation role.
