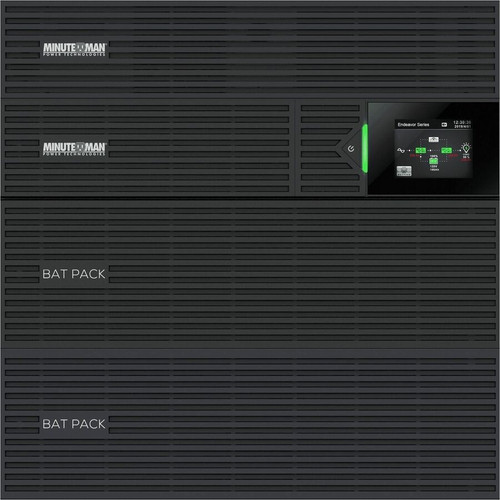

Minuteman ED5KRT Endeavor 5000VA/4. 5kW Double Conversion Online UPS - 4U Rack/Tower - True Sine Wave - 3 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double conversion online UPS continuously converts incoming AC power to DC and back to AC, providing complete isolation from utility power anomalies. The 5 kVA/4.5 kW capacity handles substantial loads, with a 3-minute runtime at full load and 11 minutes at half load. Input accepts 120V or 230V AC with a broad range from 0-300V AC, while output delivers 208V, 220V, 230V, or 240V AC true sine wave power.
Management capabilities include RS-232 for network integration, USB for local monitoring, and an EPO (Emergency Power Off) port for safety. The unit features a hot-swappable, user-replaceable battery system, minimizing downtime during maintenance. Environmental specifications support operation from 32°F to 104°F (0°C to 40°C) with 0-95% humidity, and it's certified to ENERGY STAR 2.0 and RoHS 2 standards.
Key Product Advantages
The Endeavor ED5KRT combines industrial-grade power protection with enterprise management features. The hot-swappable battery design allows for maintenance without shutting down connected equipment, while the LCD display provides clear status and diagnostic information. With a 3-year warranty covering both electronics and batteries, this UPS offers reliable long-term protection for critical infrastructure.
True Sine Wave Output
Delivers clean, stable AC power identical to utility quality, protecting sensitive electronics like servers, networking gear, and medical equipment from waveform distortion.
Double Conversion Technology
Provides complete isolation from all utility power problems—including blackouts, brownouts, surges, and frequency variations—ensuring continuous, regulated power to connected loads.
Flexible Deployment
The 4U rack/tower design installs in standard server racks or stands independently, with multiple hardwired receptacle types (NEMA L6-30R, L6-20R, terminal block) for versatile connectivity.
Deployment / Use Cases
This UPS is engineered for environments where power quality and availability directly impact operations. The 5 kVA capacity supports multiple devices simultaneously, making it suitable for small to medium server clusters, network operation centers, or industrial control systems.
Applications extend to corporate offices, healthcare facilities, and industrial settings where sensitive electronic equipment must operate through grid instability. The wide input voltage tolerance and multiple output options accommodate diverse electrical standards, while the robust construction withstands demanding operating conditions up to 15,000 feet elevation.
Server Room & Data Center
Protects rack-mounted servers, storage arrays, and network switches during power interruptions, providing time for graceful shutdowns or generator transfer.
Network Infrastructure
Ideal for telecommunications equipment, VoIP systems, and security appliances that require continuous uptime and clean power in distributed enterprise installations.
Physical Profile

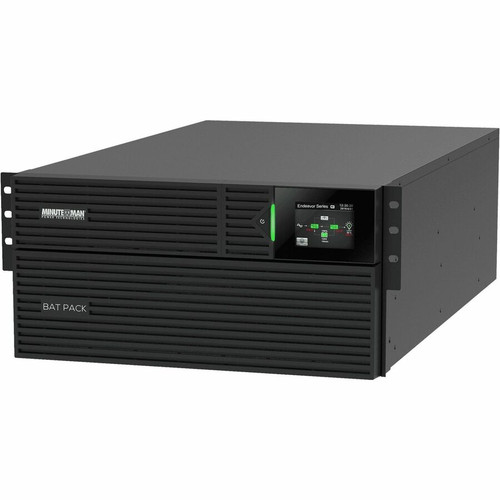

The ED5KRT measures 6.81" (172.97 mm) in height, 17.24" (437.90 mm) in width, and 23.27" (591.06 mm) in depth, occupying 4U of rack space. The rack/tower convertible design includes appropriate mounting hardware for standard 19-inch server racks, while the sturdy construction supports standalone tower deployment where rack space is unavailable. The front panel features an intuitive LCD display and status indicators for at-a-glance monitoring.
- Width
- 17.24" (437.90 mm)
- Height
- 6.81" (172.97 mm)
- Weight
- 122.32 lb (55483.42 g)
- Length
- 23.27" (591.06 mm)
What's in the Box
The package includes the Endeavor ED5KRT 5000VA Rack/Tower UPS unit and necessary communication cables for management connectivity.
Package contents include Endeavor ED5KRT 5000VA Rack/Tower UPS Comm. Cables, Endeavor ED5KRT 5000VA Rack/Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 5000VA/4.5kW double conversion online UPS with true sine wave output
- 4U rack/tower convertible form factor for flexible deployment
- 3-minute runtime at full load, 11 minutes at half load
- Hot-swappable, user-replaceable battery system
- 93% efficiency in AC mode with ENERGY STAR 2.0 certification
- Wide input voltage range (0-300V AC) with multiple output options
- RS-232, USB, and EPO ports for comprehensive management
- RoHS 2 compliant with 3-year warranty on electronics and batteries
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED5KRT |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED5KRT |
| Product Name | Endeavor ED5KRT 5000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-30R,NEMA L6-20R,Terminal Block |
| Receptacle Detail | 3 x NEMA L6-30R,2 x NEMA L6-20R,1 x Terminal Block |
| Phase | Single Phase |
| Efficiency Detail | 93% (AC Mode) |
| Application/Usage | IT,Telecommunication,Security,Business,Infrastructure,Server,Network,Industrial,Enterprise Installation,Corporate,VoIP |
| Surge Suppression | Yes |
| Features | Cold Start Function |
| Power Description | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.50 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 0 V AC - 300 V AC,156 V AC - 280 V AC |
| Input Current | 32 A |
| Output Voltage | 208 V AC,220 V AC,230 V AC,240 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 3140 J |
| Circuit Breaker | Yes |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232 |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 15000 ft (4572000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 131°F (55°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 6.81" (172.97 mm) |
| Width | 17.24" (437.90 mm) |
| Length | 23.27" (591.06 mm) |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 122.32 lb (55483.42 g) |
| Miscellaneous | |
| Package Contents | Endeavor ED5KRT 5000VA Rack/Tower UPS Comm. Cables |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years (Electronics and Batteries) |
User Manual
FAQ
What type of UPS topology does the Endeavor ED5KRT use?
The Endeavor ED5KRT employs double conversion online topology. This means it continuously converts incoming AC power to DC and then back to AC, providing complete isolation from utility power issues like blackouts, brownouts, surges, and frequency variations. This ensures connected equipment always receives clean, regulated power.
What is the runtime at full and half load?
At full load (4.5 kW), the runtime is 3 minutes. At half load (2.25 kW), the runtime extends to 11 minutes. These runtimes provide sufficient time for connected systems to perform graceful shutdowns or for backup generators to engage during extended power outages.
Can this UPS be installed in both rack and tower configurations?
Yes, the ED5KRT features a rack/tower convertible design. It occupies 4U of space in standard 19-inch server racks and includes appropriate mounting hardware. Alternatively, it can be deployed as a standalone tower unit where rack space is unavailable, offering flexibility for various installation environments.
What management interfaces are available?
Management interfaces include RS-232 for network integration, USB for local monitoring and configuration, and an EPO (Emergency Power Off) port for safety shutdowns. These interfaces allow for real-time monitoring, remote management, and integration with network management systems for proactive power protection.
Is the battery user-replaceable and hot-swappable?
Yes, the battery system is both user-replaceable and hot-swappable. This design allows battery replacement without powering down connected equipment, minimizing downtime during maintenance. The replaceable battery extends the UPS's service life and reduces long-term ownership costs.
What input and output voltages does this UPS support?
Input voltage accepts 120V AC or 230V AC, with a wide range from 0-300V AC. Output voltage delivers 208V, 220V, 230V, or 240V AC true sine wave power. This flexibility accommodates various electrical standards and makes the UPS adaptable to different infrastructure requirements.
What power capacity is listed for this UPS?
The listed power specification is 5 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
