Shipping included*
Exclusions
Additional shipping fees may apply in rare circumstances for deliveries outside standard service areas. In most cases, this only potentially affects shipments to the Northwest Territories and Yukon, as well as certain heavy or oversized items.

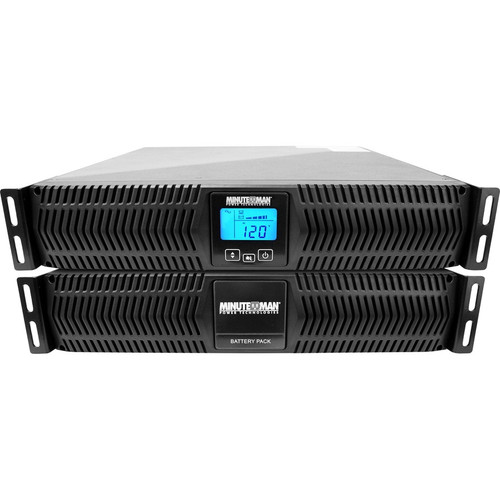

Minuteman ED6200RTXLMB Endeavor 6000VA Rack/Tower UPS - 4U Double Conversion Online - 208V AC Input/Output - 5 Min Full Load Runtime
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This double-conversion online UPS continuously converts incoming AC power to DC and back to clean AC output, providing complete isolation from utility power anomalies. The 6 kVA capacity supports substantial loads, with input and output voltages optimized for 208V AC commercial power systems.
Runtime performance delivers 5 minutes at full load and extends to 9.9 minutes at half load, providing adequate time for graceful shutdown or generator transfer. The unit maintains output frequency at 60 Hz regardless of input frequency variations between 70 Hz.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Overload Protection, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
The Endeavor ED6200RTXLMB combines industrial-grade power protection with flexible deployment options, making it suitable for data centers, network closets, and industrial control systems where power quality is critical.
Zero Transfer Time Protection
Double-conversion technology eliminates transfer time during power events, ensuring uninterrupted operation for sensitive electronics.
- Continuous power conditioning
- No switching delay
- Complete isolation from utility power
Flexible Installation
The rack/tower design with included mounting hardware supports both standard 19-inch rack installation and standalone tower deployment.
- 4U rack height
- Rail kit included
- Foot brackets for tower use
Comprehensive Management
SNMP manageability enables remote monitoring and control through network management systems, while the included SentryHD software provides local configuration and alerting.
- SNMP support
- Serial port connectivity
- SentryHD software included
Deployment / Use Cases
This 6000VA UPS is engineered for environments requiring robust power protection for critical infrastructure. Its 208V AC compatibility makes it ideal for commercial buildings, data centers, and industrial facilities with three-phase power distribution.
The rack-mountable design suits server rooms and network closets where space optimization is essential, while the tower configuration option provides flexibility for locations without rack infrastructure. The maintenance bypass switch allows for safe UPS servicing without disrupting connected equipment.
This section brings together practical product details such as Plug/Connector Type, Receptacle Type, Overload Protection, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Data Center Power Protection
Protect server racks, storage arrays, and networking equipment from power disturbances with zero-transfer-time online protection.
Industrial Control Systems
Ensure continuous operation of PLCs, HMIs, and process control equipment in manufacturing and utility environments.
Physical Profile
The ED6200RTXLMB measures 7 inches in height (4U), 17.30 inches in width, and 26 inches in depth, fitting standard 19-inch server racks. The compact 4U height maximizes rack space efficiency while providing substantial power capacity. The unit's steel construction ensures durability in both rack-mounted and tower deployments.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 4U, 17.30" (439.42 mm), 26" (660.40 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 17.30" (439.42 mm)
- Depth
- 26" (660.40 mm)
- Height
- 4U
What's in the Box
The package includes all necessary components for immediate deployment in either rack or tower configuration.
Highlights
- 6000VA double-conversion online UPS for critical power protection
- Rack/tower convertible design with 4U rack height
- 208V AC input and output voltage compatibility
- 5-minute runtime at full load, 9.9 minutes at half load
- SNMP manageable with serial port connectivity
- Includes SentryHD management software
- Hardwired NEMA L6-30P connector with maintenance bypass
- Energy Star certified and RoHS 2 compliant
- 3-year limited warranty for long-term reliability
- Complete installation kit included for flexible deployment
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED6200RTXLMB |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED6200RTXLMB |
| Product Name | Endeavor ED6200RTXLMB 6000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | Hardwired |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC,212 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Management | |
| Network Management | SNMP Manageable |
| Interfaces/Ports | |
| Serial Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 9.90 Minute |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 4U |
| Height | 7" (177.80 mm) |
| Width | 17.30" (439.42 mm) |
| Depth | 26" (660.40 mm) |
| Miscellaneous | |
| Package Contents | Endeavor ED6200RTXLMB 6000VA Rack/Tower UPS Rail Kit Foot Brackets 1 x Battery Pack Maintenance Bypass Switch |
| Software Included | SentryHD |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What is the power capacity of this Minuteman UPS?
The Endeavor ED6200RTXLMB provides 6000VA (6 kVA) of power capacity, suitable for protecting substantial loads in commercial and industrial environments. This double-conversion online UPS delivers clean, regulated power output with zero transfer time during power events.
What runtime can I expect from this 6000VA UPS?
At full load, the UPS provides 5 minutes of runtime, extending to 9.9 minutes at half load. This runtime allows sufficient time for graceful shutdown of connected equipment or transfer to backup generators during extended power outages.
Is this UPS rack-mountable or tower-only?
The ED6200RTXLMB supports both rack and tower deployment. It has a 4U rack height and includes a rail kit for standard 19-inch rack installation, plus foot brackets for standalone tower use. This flexibility makes it suitable for data centers, server rooms, or locations without rack infrastructure.
What input and output voltages does this UPS support?
This UPS is designed for 208V AC commercial power systems, with input voltage of 208V AC and output voltages of 208V AC and 212V AC. The hardwired NEMA L6-30P connector ensures secure connection to appropriate power sources.
How can I manage and monitor this UPS remotely?
The UPS supports SNMP management for integration with network monitoring systems, plus includes a serial port for direct connectivity. SentryHD software is included for local configuration, monitoring, and alerting, providing comprehensive management options.
What warranty comes with this Minuteman UPS?
The Endeavor ED6200RTXLMB is backed by a 3-year limited warranty, providing long-term protection for your investment. The unit is also Energy Star certified and RoHS 2 compliant, meeting environmental standards for commercial use.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 208 V AC, which helps position the unit for the right load level and installation role.
