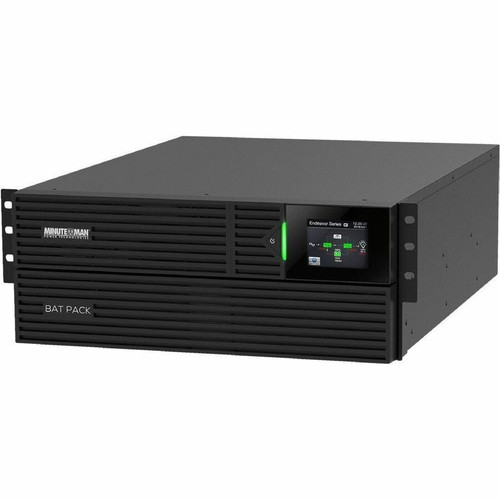

Minuteman ED6KRT-6KTF2 Endeavor 6000VA Rack/Tower UPS - 6 kVA / 5. 13 kW - 4U - True Double-Conversion Online - Hardwired
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The Endeavor ED6KRT-6KTF2 operates with 93% efficiency in AC mode, minimizing energy loss and heat generation. It accepts a wide input voltage range from 0V to 300V AC, with a nominal input of 120V or 230V AC, and delivers output voltages configurable for 208V, 220V, 230V, 240V, 120V, 110V, or 115V AC systems. The unit features a 38A input current rating and includes an internal circuit breaker for overload protection.
Digital Signal Processor (DSP) design enhances control precision and reliability. The automatic internal bypass ensures continuous power delivery during overloads or UPS maintenance, while the Independent Battery Bypass (IBB) allows safe battery replacement without interrupting the critical load. Smart fan control optimizes cooling based on temperature and load conditions.
This section brings together practical product details such as Plug/Connector Type, Phase, Efficiency Detail, Load Capacity (VA), so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Key Product Advantages
This UPS combines industrial-grade protection with user-friendly management for comprehensive power quality control. The multi-function color LCD touchscreen provides real-time status monitoring, configuration access, and historical event logging. Cold start functionality allows the UPS to power on connected equipment even when utility power is absent, which is essential for remote or emergency startups.
Battery Management
Hot-swappable and user-replaceable batteries enable maintenance without downtime. The unit provides 2 minutes of runtime at full load and extends to 7 minutes at half load, offering critical buffer time for graceful shutdowns or generator start-up.
- Hot Swappable
- Replaceable Battery
- 2 Min Full Load / 7 Min Half Load Runtime
Communication & Control
RS-232 and USB ports support integration with network management systems, while the EPO (Emergency Power Off) port enhances safety protocols. The unit is ENERGY STAR 2.0 certified and RoHS2 compliant, meeting modern environmental and efficiency standards.
- RS-232 & USB Ports
- EPO Port
- ENERGY STAR 2.0 & RoHS2 Compliant
Deployment / Use Cases
The Endeavor ED6KRT-6KTF2 is suited for protecting high-density server racks, network closets, and industrial control systems where power disturbances can cause data loss, hardware damage, or operational interruptions. Its robust design supports applications in telecommunications, security systems, VoIP infrastructure, and enterprise data centers.
In rack-mounted configurations, the 4U footprint optimizes space in standard server cabinets. The tower form factor alternative allows deployment in equipment rooms without rack infrastructure. The wide operating temperature range from 32°F to 104°F and humidity tolerance from 0% to 95% ensure performance in varied environmental conditions, including industrial settings.
IT & Server Protection
Safeguards critical servers, storage arrays, and networking gear from power anomalies, ensuring data integrity and minimizing downtime during outages or brownouts.
Industrial & Infrastructure
Provides clean power for telecommunications equipment, security systems, and industrial controls where voltage fluctuations can disrupt operations or damage sensitive electronics.
Physical Profile
The UPS measures 13.63" (346.20 mm) in height, 17.24" (437.90 mm) in width, and 23.82" (605.03 mm) in depth, with a weight of approximately 331.70 lb (150.46 kg). The 4U rack height allows installation in standard 19-inch server racks, and the rack/tower convertible design offers flexibility for both data center and standalone deployments. The sturdy construction supports the unit's substantial battery bank and power components, ensuring long-term reliability in continuous operation environments.
- Width
- 17.24" (437.90 mm)
- Height
- 13.63" (346.20 mm)
- Weight
- 331.70 lb (150456.59 g)
- Length
- 23.82" (605.03 mm)
What's in the Box
The package includes the Endeavor ED6KRT-6KTF2 6000VA Rack/Tower UPS and necessary communication cables for immediate deployment and management integration.
Package contents include Endeavor ED6KRT-6KTF2 6000VA Rack/Tower UPS Comm. Cables, Endeavor ED6KRT-6KTF2 6000VA Rack/Tower UPS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- 6000VA / 5.13 kW double-conversion online UPS
- True sine wave output for sensitive equipment compatibility
- 4U rack/tower convertible form factor
- Hardwired connection with 38A input current
- 2-minute full load / 7-minute half load runtime
- Hot-swappable and user-replaceable batteries
- Multi-function color LCD touchscreen display
- RS-232 and USB communication ports
- ENERGY STAR 2.0 certified and RoHS2 compliant
- 3-year warranty covering electronics and batteries
Specifications
| Specifications | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED6KRT-6KTF2 |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED6KRT-6KTF2 |
| Product Name | Endeavor ED6KRT-6KTF2 6000VA Rack/Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Efficiency Detail | 93% (AC Mode) |
| Application/Usage | IT,Telecommunication,Security,Business,Infrastructure,Server,Network,Industrial,Enterprise Installation,Corporate,VoIP |
| Surge Suppression | Yes |
| Features | Cold Start Function |
| Power Description | |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.13 kW |
| Input Voltage | 120 V AC,230 V AC |
| Input Voltage Range | 0 V AC - 300 V AC,156 V AC - 280 V AC |
| Input Current | 38 A |
| Output Voltage | 208 V AC,220 V AC,230 V AC,240 V AC,120 V AC,110 V AC,115 V AC |
| Input Frequency | 40 Hz,70 Hz |
| Output Frequency | 50 Hz,60 Hz |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 3140 J |
| Circuit Breaker | Yes |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | RS-232 |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 7 Minute |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 15000 ft (4572000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Temperature | 5°F (-15°C) - 131°F (55°C) |
| Operating Humidity | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Physical Characteristics | |
| Height | 13.63" (346.20 mm) |
| Width | 17.24" (437.90 mm) |
| Length | 23.82" (605.03 mm) |
| Rack Height | 4U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 331.70 lb (150456.59 g) |
| Miscellaneous | |
| Package Contents | Endeavor ED6KRT-6KTF2 6000VA Rack/Tower UPS Comm. Cables |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Years (Electronics and Batteries) |
User Manual
FAQ
What is the power capacity of this Minuteman UPS?
The Minuteman Endeavor ED6KRT-6KTF2 has a load capacity of 6 kVA (6000VA) and 5.13 kW. This rating indicates it can support critical IT equipment drawing up to 5.13 kilowatts of power, with a high power factor of 0.9 ensuring efficient utilization of the VA capacity for modern server and network loads.
How long does the battery backup last during a power outage?
At full load (6 kVA), the UPS provides 2 minutes of runtime, allowing sufficient time for connected systems to perform graceful shutdowns or for backup generators to start. At half load (3 kVA), runtime extends to 7 minutes, offering longer protection for reduced power demands or staged shutdown procedures.
Can this UPS be installed in a server rack?
Yes, the Endeavor ED6KRT-6KTF2 is designed for both rack and tower deployment. It occupies 4U of vertical space in a standard 19-inch server rack, with dimensions of 13.63" height, 17.24" width, and 23.82" depth. The rack/tower convertible form factor provides flexibility for data center integration or standalone use in equipment rooms.
What input and output voltages does this UPS support?
The UPS accepts input voltages of 120 V AC or 230 V AC, with a wide input range from 0V to 300V AC for compatibility with unstable power sources. Output voltages are configurable for 208 V AC, 220 V AC, 230 V AC, 240 V AC, 120 V AC, 110 V AC, or 115 V AC, making it suitable for various regional electrical standards and equipment requirements.
What management and monitoring features are included?
The unit includes a multi-function color LCD touchscreen for local status monitoring and configuration. For remote management, it provides RS-232 and USB communication ports, enabling integration with network management software for alerts, logging, and control. An EPO (Emergency Power Off) port is also included for safety shutdowns.
Is the battery user-replaceable, and what is the warranty?
Yes, the battery is hot-swappable and user-replaceable, allowing maintenance without powering down connected equipment. The UPS comes with a 3-year limited warranty that covers both electronics and batteries, providing comprehensive protection and support for long-term reliability in critical power applications.
What power capacity is listed for this UPS?
The listed power specification is 6 kVA, which helps position the unit for the right load level and installation role.
What voltage details are listed?
The listed power specification is 120 V AC,230 V AC, which helps position the unit for the right load level and installation role.
